Zaxcom ZMT3-HM

Main Menu

To cycle through the main menu press the MENU key.

Microphone Gain Set

GAIN 20 dB
The microphone gain is adjusted from this menu. This menu displays the gain setting in decibels and a meter
indicating the audio signal. The meter is displayed horizontally from left to right.

UHF Transmit Frequency Set

TXFREQ 543.2
This menu is where the UHF transmit frequency is set.
Short presses of the INC or DEC key causes the value to change by 0.1 MHz
•
Holding the INC or DEC key causes the value to change by 0.5 MHz
•

Transmitter Lock Page

LOCK 5
LOCKED
09:18:05:02
23.98
IFB RX
This page enables a key lock function so no parameters can be changes. When the lock page is landed on
a countdown clock will begin. After 5 seconds the transmitter will lock and the display will indicated that
it is LOCKED. If this screen is exited before the 5 seconds are up the transmitter will not lock.
To lock the transmitter before the 5 seconds press and hold the DEC key.
Pressing the INC key when the transmitter is locked will display the ZMT3's group and unit code, its
transmit frequency and serial number. Pressing the DEC key will display the units name, battery voltage
and current record segment number.
To unlock the transmitter
• Press and hold the MENU key and press INC keys 5 times.
Or
• Powering down and reboot the transmitter.

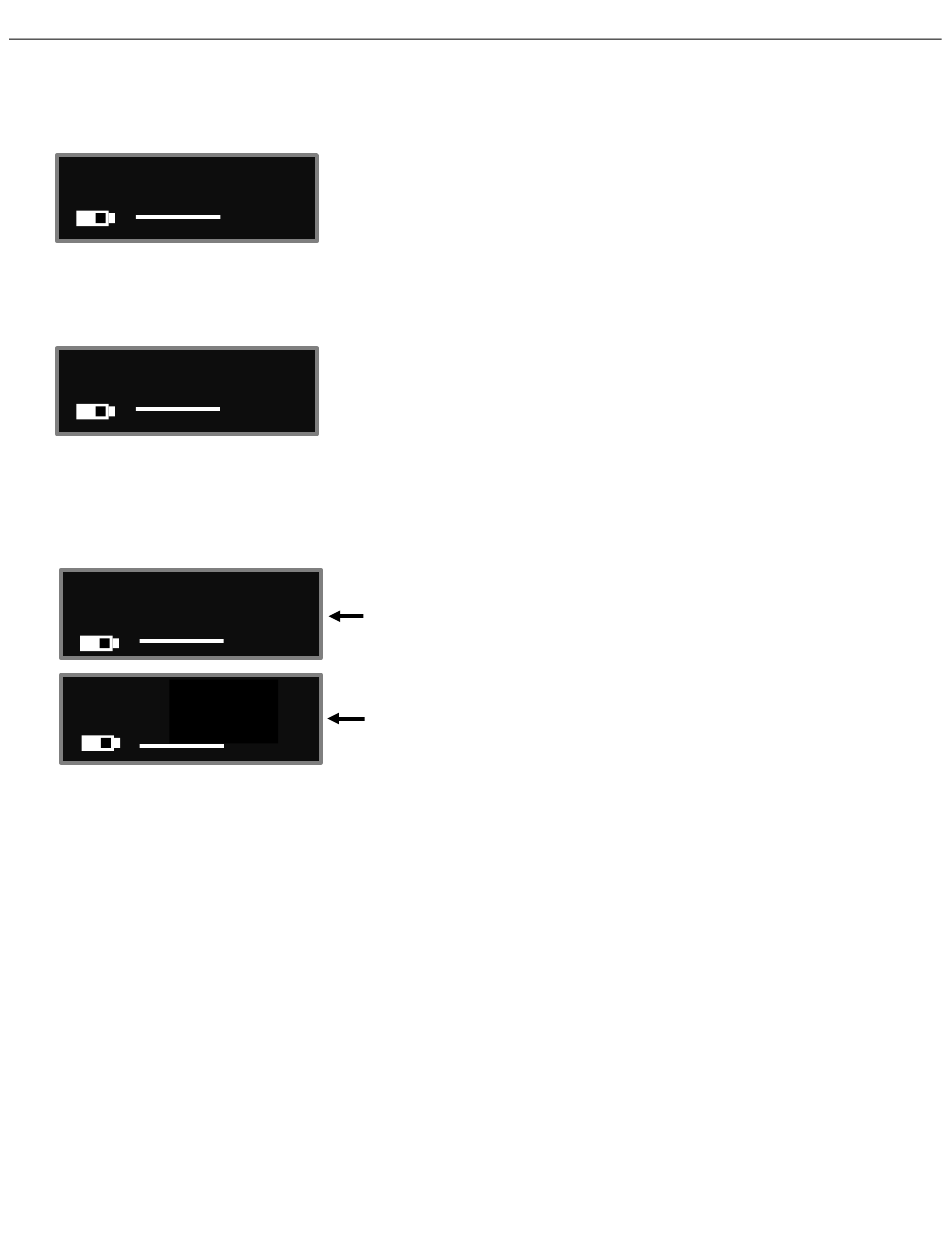

Countdown clock starting at 5 seconds
20 dB
After the transmitter locks
7
