Zaxcom ZMT3-HM

ZMT3 HM Transmitter

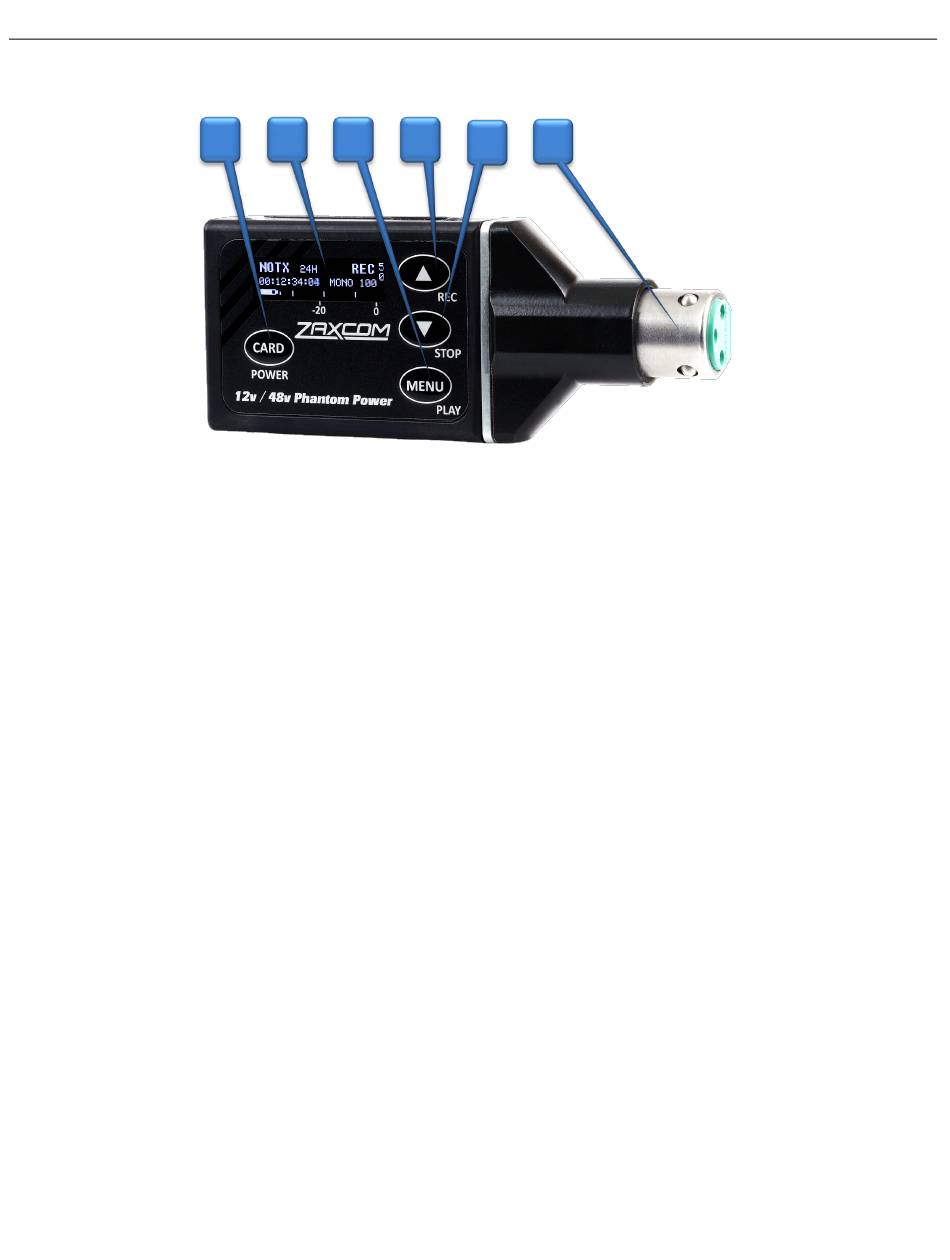

1. Card / Power Key
Push and hold for 2 seconds to power on.
•
Push and hold 3 seconds followed by a quick press of the MENU key to power off.
•
Press 3 times quickly to access the sub menus.
•
Press 3 times quickly to return to the home screen.
•
2. OLED Display
3. Menu / Play Key
Press it to access the next menu item.
•
Press it with the CARD key to playback a segment.
•
4. INC / Record Key
Increases the parameters of a menu item.
•
When in the home screen pressing INC with the CARD key will put the transmitter into record.
•
When in the transport control screen while not recording will cause the transmitter to playback.
•
Pressing while playing back will advance playback, multiple presses will cause playback to advance in
•
larger increments.
Press and hold while in the transport control screen will advance to the next segment.
•
Press it while in the home screen will display the group and unit code and the time left on the card.
•
5. DEC / Stop Key
Decreases the parameters of the menu items.
•
When in the home screen pressing DEC with the CARD key will stop the recording.
•
When playing back in the transport control screen will cause the transmitter to stop playback.
•
Press and hold while in the transport control screen will jump back to the previous segment.
•
Pressing it three times quickly while in the home screen will access the sub menu.
•
6. Microphone Connector (3 pin XLR)
1 2 3 4
6
5
4
Transmitter
