Zaxcom ZMT3

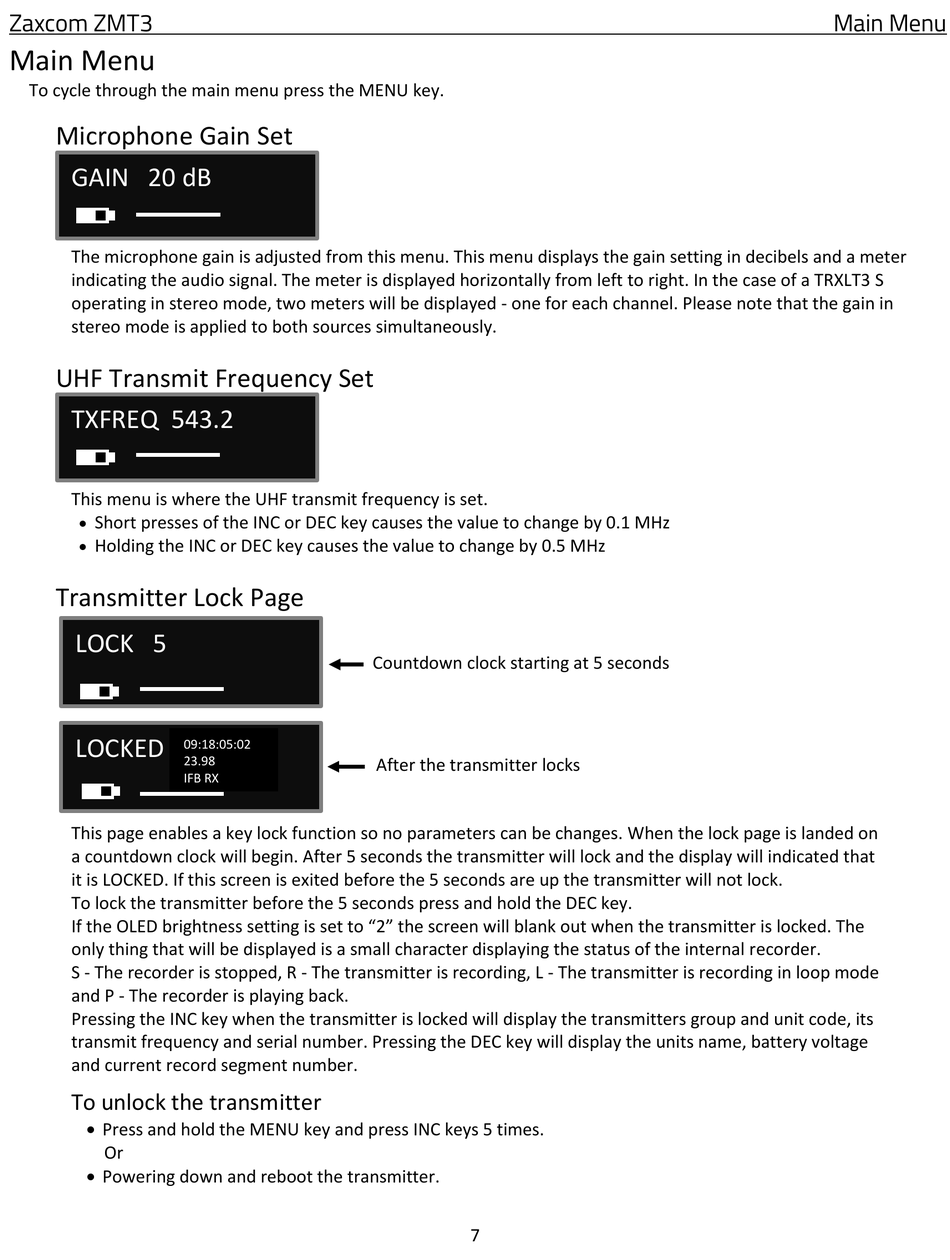

Main Menu

To cycle through the main menu press the MENU key.

Microphone Gain Set

GAIN 20 dB
The microphone gain is adjusted from this menu. This menu displays the gain setting in decibels and a meter
indicating the audio signal. The meter is displayed horizontally from left to right. In the case of a TRXLT3 S
operating in stereo mode, two meters will be displayed - one for each channel. Please note that the gain in
stereo mode is applied to both sources simultaneously.

UHF Transmit Frequency Set

TXFREQ 543.2
This menu is where the UHF transmit frequency is set.

Short presses of the INC or DEC key causes the value to change by 0.1 MHz

Holding the INC or DEC key causes the value to change by 0.5 MHz

Transmitter Lock Page

LOCK 5
LOCKED
09:18:05:02
23.98
IFB RX
This page enables a key lock function so no parameters can be changes. When the lock page is landed on
a countdown clock will begin. After 5 seconds the transmitter will lock and the display will indicated that
it is LOCKED. If this screen is exited before the 5 seconds are up the transmitter will not lock.
To lock the transmitter before the 5 seconds press and hold the DEC key.
If the OLED brightness setting is set to "2" the screen will blank out when the transmitter is locked. The
only thing that will be displayed is a small character displaying the status of the internal recorder.
S - The recorder is stopped, R - The transmitter is recording, L - The transmitter is recording in loop mode
and P - The recorder is playing back.
Pressing the INC key when the transmitter is locked will display the transmitters group and unit code, its
transmit frequency and serial number. Pressing the DEC key will display the units name, battery voltage
and current record segment number.
To unlock the transmitter
 Press and hold the MENU key and press INC keys 5 times.
Or
 Powering down and reboot the transmitter.
Countdown clock starting at 5 seconds
20 dB
After the transmitter locks
7
