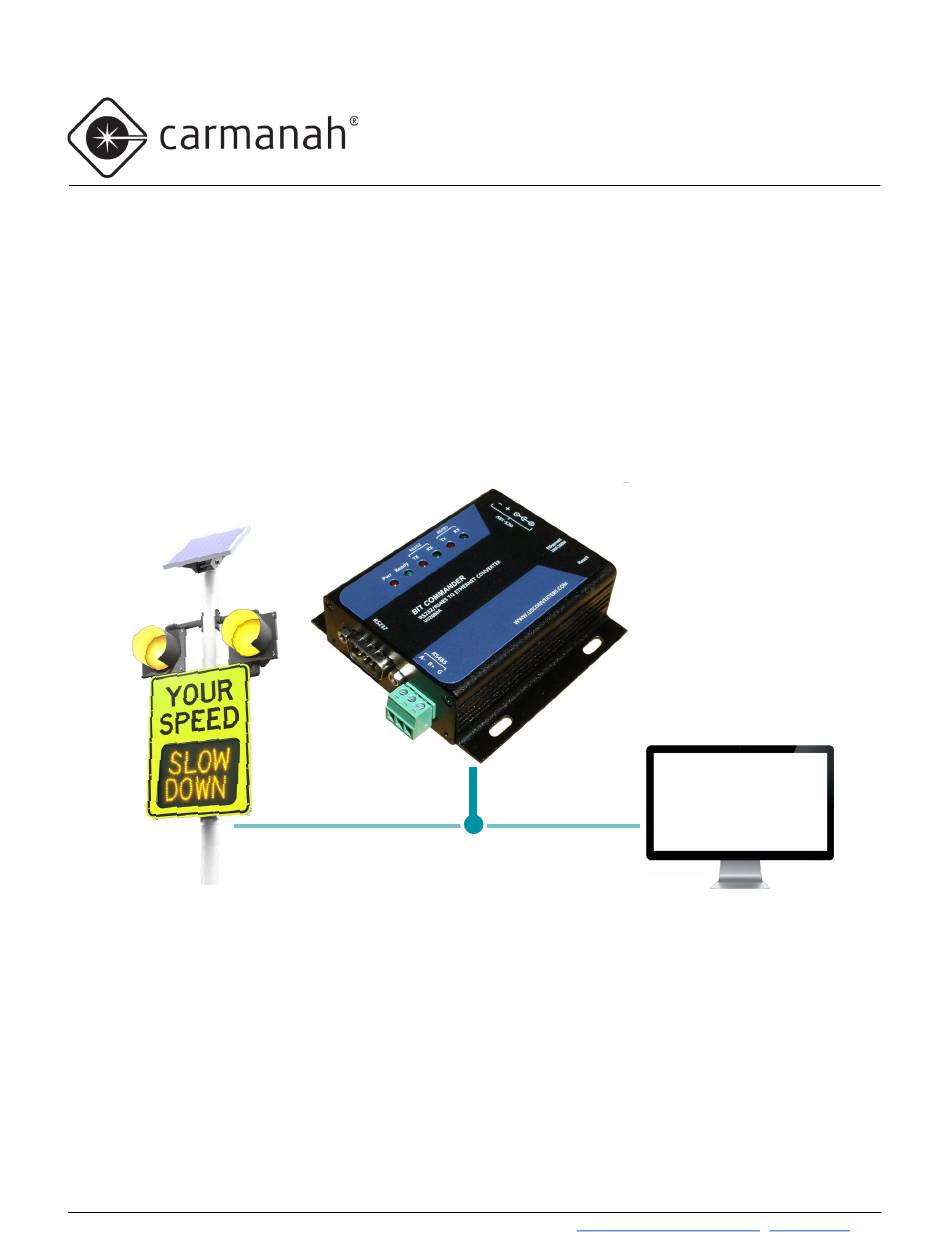

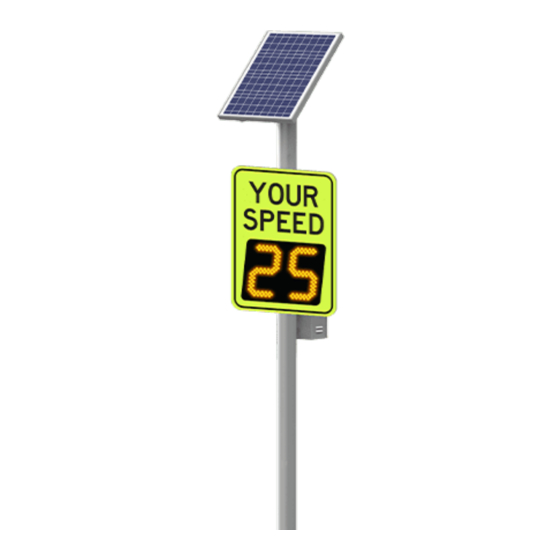

- Page 1 SpeedCheck ® SERIAL TO ETHERNET CONVERTER INSTALL GUIDE For the SPEEDCHECK-15/18 radar speed signs 87883_INSTALL-GUIDE_SPEEDCHECK-15-Serial-to-Ethernet_RevF Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 2: Table Of Contents
SPEEDCHECK-18 Installation ........................9 4.0 Converter Configuration ..........................11 Static IP Address ............................. 13 Dynamic IP Address ..........................14 5.0 SpeedCheck Manager Configuration......................15 Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 3: Warnings And Precautions
NOTE suggests optimal conditions and provides additional information. Warranty Disclaimer This guide will familiarize you with the installation of Carmanah's SpeedCheck Serial to Ethernet Converter for SPEEDCHECK-15/18. Failure to comply with the use, storage, maintenance, installation or placement instructions detailed in this guide could void the warranty. - Page 4 This install guide is specific to the SpeedCheck Serial to Ethernet Converter and is not a replacement for the complete SPEEDCHECK-15/18 product user manual. Visit support.carmanah.com to download the complete product user manual. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 5: Overview
2.0 OVERVIEW 2.0 Overview The serial to Ethernet converter option for Carmanah’s SPEEDCHECK-15/18 radar speed signs allows signs to be configured remotely over an established network using Carmanah’s SpeedCheck Manager software. When the serial to Ethernet converter option is ordered with a SPEEDCHECK-15/18 sign, the converter comes pre-installed in the sign. -
Page 6: Speedcheck-15 Installation
3.0 INSTALLATION SPEEDCHECK-15 Installation 1. Disconnect power to the SPEEDCHECK-15 sign by turning off the breaker or removing the fuse(s) in the associated power cabinet. 2. Remove the two hex head screws, one on each side, holding the sign face to the display enclosure. - Page 7 7. Disconnect the LED wiring on the back and carefully set aside the right and left LED boards. Do not bend the LEDs in this process. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com...
- Page 8 14. Reinstall the sign and secure to the display enclosure using the two hex screws. 15. See Section 5 if the sign requires programming via SpeedCheck Manager. a. SpeedCheck Manager can be downloaded at support.carmanah.com. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 9: Speedcheck-18 Installation
1. Disconnect power from the SPEEDCHECK-18 sign by turning off the breaker or removing the fuse(s) in the associated power cabinet. 2. Remove the four screws holding the back panel assembly to the back of the SPEEDCHECK-18 sign. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... - Page 10 SpeedCheck Manager can be downloaded at support.carmanah.com. Serial to Ethernet converter Ethernet cable to network (not provided) Hole plug for second conduit opening Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 11: Converter Configuration
OK. You should now be connected to the USConverters web interface. Additional information can be found here: http://www.usconverters.com/serial-etherent- converter-us2000a Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... - Page 12 6. Navigate to RS232 and update “Local Port Number:” to 2101 and click Save. 7. All other default settings should match the following image. 8. Update password under Misc Config as required (recommended) and click Save. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 13: Static Ip Address
4. Restore your laptop settings to Obtain IP/DNS address automatically. 5. Disconnect the Ethernet cable from the laptop and connect it to your network switch. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com... -
Page 14: Dynamic Ip Address
3. Restore laptop settings to obtain IP/DNS address automatically. 4. Disconnect the Ethernet cable from the laptop and connect it to your network switch. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com... -
Page 15: Speedcheck Manager Configuration
SpeedCheck Manager software. 1. Open the SpeedCheck Manager software. If you do not have a copy, please contact Carmanah. 2. Select Network Network Connection Setup Add Entry Enter IP Address and particulars for your SpeedCheck sign. - Page 16 6. Adjust the settings to the system as needed. Refer to the full SpeedCheck Manual under the Help menu for more information. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
- Page 17 SERIAL TO ETHERNET INSTALL GUIDE 5.0 SPEEDCHECK MANAGER CONFIGURATION This page intentionally left blank. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
- Page 18 5.0 SPEEDCHECK MANAGER CONFIGURATION © 2021 Carmanah Technologies Corporation Technical Support: Email: customersupport@carmanah.com Toll Free: 1.877.722.8877 (US & Canada) Worldwide: 1.250.380.0052 Fax: 1.250.380.0062 Web: carmanah.com Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
