- Page 1 SPEEDCHECK ® SPEEDCHECK-15 RADAR REPLACEMENT GUIDE For the SPEEDCHECK-15 radar speed signs 81862_REPLACEMENT_GUIDE_SPEEDCHECK_15_RADAR_REVB Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 2: Table Of Contents
1.0 Warnings and Precautions ..........................3 Warranty Disclaimer ...........................3 Standards ..............................3 Safety and Usage Precautions ........................3 2.0 Radar Kit Overview .............................5 3.0 Installation Procedure ............................6 Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 3: Warnings And Precautions
NOTE suggests optimal conditions and provides additional information. Warranty Disclaimer This guide will familiarize you with the installation of Carmanah's SPEEDCHECK-15 replacement radar kit. Failure to comply with the use, storage, maintenance, installation or placement instructions detailed in this guide could void the warranty. - Page 4 Changes or modifications to Carmanah equipment not expressly approved by Carmanah could void both the user's authority to operate the equipment and the warranty. This guide is specific to SPEEDCHECK-15 radar installation and is not a replacement for the complete SPEEDCHECK-15 product user manual.
-
Page 5: Radar Kit Overview

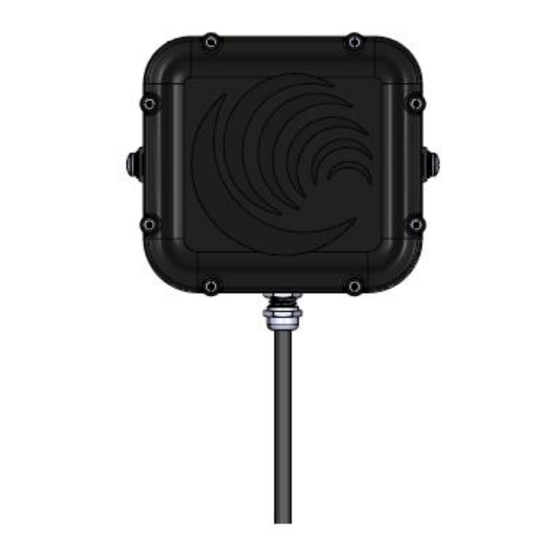

• 1x radar mounting bracket • 4x nylon nuts DR600 radar DR600 retrofit mounting bracket (only required for replacing DR500 or older radar) Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 6: Installation Procedure
ENSURE DEVICE IS COMPLETELY POWERED OFF SO THERE IS NO DANGER OF ELECTRICAL SHOCK OR RISK OF DAMAGING EQUIPMENT. 1. Disconnect power to the SPEEDCHECK-15 sign by turning off the breaker or removing the fuse(s) in the associated power cabinet. - Page 7 When the retainer tabs clear the top hanger pins slide the LED board upwards and then pull down to clear the bottom hanger pins. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com...
- Page 8 LED board. Do not bend the LEDs in this process. 8. Remove existing radar cable from the SpeedCheck control board. Your control board may look different than the one below. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
- Page 9 Install radar, and here. Ensure notched then if needed side faces ramp install radar mount Route the radar cable and secure with cable ties Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
- Page 10 18. Wait for traffic to activate the system and ensure radar is working properly. 19. Reinstall the sign face and secure to the enclosure using the two hex screws. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com...
- Page 11 SPEEDCHECK-15 RADAR REPLACEMENT GUIDE © 2021 Carmanah Technologies Corporation Technical Support: Email: customersupport@carmanah.com Toll Free: 1.877.722.8877 (US & Canada) Worldwide: 1.250.380.0052 Fax: 1.250.380.0062 Web: carmanah.com Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
