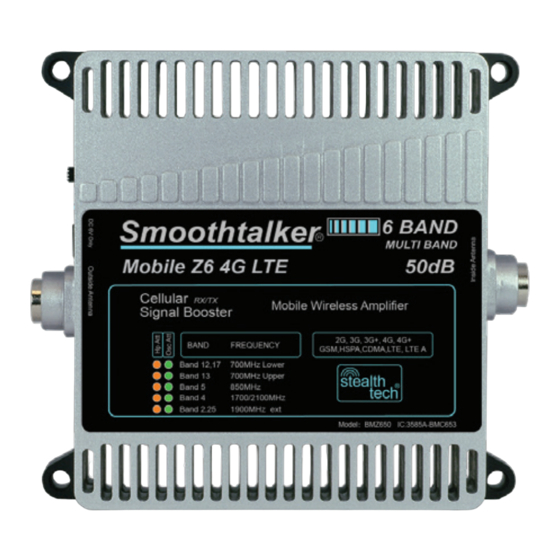

Mobile Z6 4G LTE
Wireless Booster High Power
User Manual
Cellular
RX/TX
Signal Booster
Wireless Booster High Power
2G, 3G, 3G+, 4G, 4G+
GSM,HSPA,CDMA,LTE, LTE A
Band 12,17
Band 13
Band 5
Band 4
Band 2,25
In 2001 SmoothTalker produced the rst digital mobile cellular signal booster
in North America with FCC and ICAN approval. We continue to lead with the
most powerful and intelligent boosters in the world.
Our dynamic adaptive proprietary algorithms make them very network friendly.
We call it STEALTH TECH technology.
Boosts the outside signal into your vehicle
and the cell phone signal back to the tower.
50dB 6 BAND
MULTI BAND 50dB
700MHz Lower
700MHz Upper
850MHz
1700/2100MHz
1900MHz ext
MULTI BAND
USA
stealth
tech
Smoothtalker.com
6 BAND
50dB
®
Advertisement
Related Manuals for SmoothTalker Mobile Z650 Series
Summary of Contents for SmoothTalker Mobile Z650 Series
- Page 1 ® Band 2,25 1900MHz ext In 2001 SmoothTalker produced the rst digital mobile cellular signal booster in North America with FCC and ICAN approval. We continue to lead with the most powerful and intelligent boosters in the world. Our dynamic adaptive proprietary algorithms make them very network friendly.
- Page 2 CLA plug type All parts shown are not included in all kits. Please check your model number for more details at smoothtalker.com NOTE: It is normal for the booster to be quite warm while the phone is in use state.
-
Page 3: Installation
Installation Installation 1) Connect the outside antenna to the side of the booster marked as “outside antenna” Connect the inside antenna to the side of the booster marked as “inside antenna” 2) Placement Place the outside antenna in the middle of the vehicle roof. If the vehicle has a sunroof please place the antenna on the roof towards the back window. -
Page 4: Understanding The Lights
RX High Power Attenuation Oscillation Attenuation Band Frequency Band 12, 17 700MHz Lower Band 13 700MHz Upper Band 5 850MHz Band 4 1700/2100MHz Band 2, 25 1900MHz ext Green LED Orange LED Understanding the lights The “LEDS” on the face of the booster indicate operating gain state. In any given frequency band there is a Green and Orange LED which indicate the gain status of the band. - Page 5 LED Lights Status Explanation Attenuation (Att) ORANGE LED GREEN LED RX High Power Oscilation Each ash indicates 3dB of gain reduction also known as gain attenuation. For example: three ashes equals 9dB of attenuation. Orange Solid ON = Full Gain - Green Solid ON = Full Gain SOLID ON SOLID ON Orange Solid ON &...
-
Page 6: Speci Cations
6 Band Wireless Kit High Power Typical Booster Kit Model shown BMUZ650MSPC Speci cations Mobile Z650 Series 4G LTE 2G, 3G, 3G+, 4G, 4G+, GSM, HSPA, CDMA, LTE, LTE A MODULATIONS Band 12/17 Band 13 Band 5 Band 4 Band 2/25... - Page 7 Approved Equipment List For speci cations of any of the Smoothalker FCC approved part numbers listed below visit smoothtalker.com FCC requirements prohibit the use of unauthorized Antennas, Cables, and/or Coupling devices. Antennas SMRP1X SRMP1XL SEM2TH series SEM11TH series SEM14TH series...
