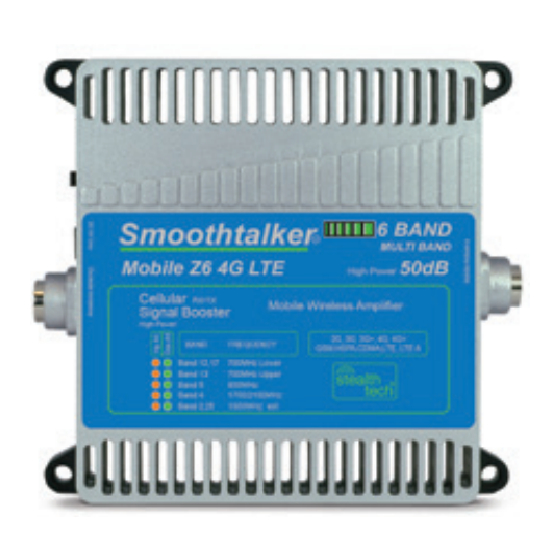

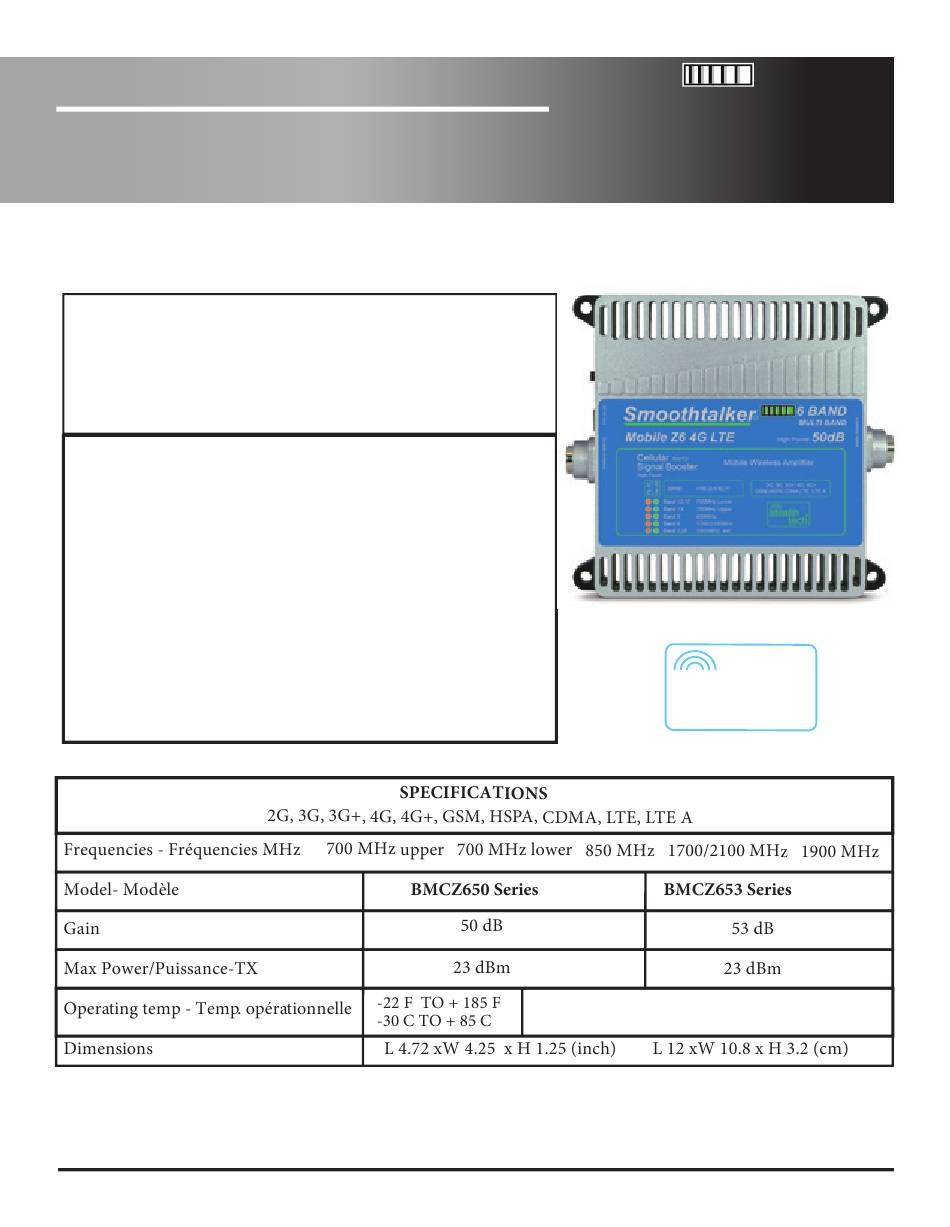

- Page 1 6 BAND Mobile Z6 & Mobile Z6 Pro 4G LTE MULTI BAND 50 & 53dB Wireless Booster High Power Mid Size (50 dB) & Large Size (53 dB) Vehicle Multi Bandes Assurance véhicule de haute puissance à 6 BANDES Véhicules moyenne (50 dB) - Véhicules grand (53 dB) User Manual -Manuel de l’utilisateur...
- Page 2 Contents -Contenu Outside antenna Antenne extérieure Inside antenna Cellular Booster Amplificateur Antenne intérieure SEMINI SRP1X Optional Power Types Types d’alimentation en option 120 volt AC/DC 12 volt socket plug type 12 volt install type 120 VAC / DC 12 volts type d’installation 12 volts type de fiche NOTE: Only one of the outside antennas is included in this kit (check model) All kits include necessary brackets and co-axial cables for assembly.
- Page 3 Installation 1) Connect the outside antenna to the side of the booster marked as “outside antenna” Connect the inside antenna to the side of the booster marked as “inside antenna” 2) Placement Place the outside antenna in the middle of the vehicle roof. If the vehicle has a sunroof please place the antenna on the roof towards the back window.
-
Page 4: Understanding The Led Indicators
Understanding the LED Indicators RX High Power Attenuation Atténuation de haute puissance de RX Oscillation Attenuation Atténuation de l'oscillation Band Frequency Bande Fréquence Band 12, 17 700MHz Lower Band 13 700MHz Upper Band 5 850MHz Band 4 1700/2100MHz Band 2, 25 1900MHz ext Green LED Vert Orange LED Orange... - Page 5 LED Lights Explanation and Troubleshooting Each ash indicates 3dB of gain reduction also known as gain attenuation. For example: three ashes equals 9dB of attenuation. Green LED indicates loop oscillation status. When ashing it means reduction of gain. To improve you need to spread the distance between the inside and outside antennas.
- Page 6 Comprendre les indicateurs DEL Atténuation de haute puissance de RX Atténuation de l'oscillation Bande Fréquence Bande 12, 17 700MHz bas Bande 13 700MHz haut Bande 5 850MHz Bande 4 1700/2100MHz Bande 2, 25 1900MHz ext DEL Vert DEL Orange Les DELS sur la face de l'ampli cateur indiquent l'état de gain opérationnel. Dans une bande de fréquence donnée il y a un Vert et Orange DEL qui indiquent l'état de gain de la bande.
- Page 7 Band 12/17 Band 13 Band 5 Band 4 Band 2/25 GROUPES OPÉRATIONNELS RADIATED POWER Mobile Z6 4G LTE Mobile Z6 Pro 4G LTE 3 Watts EIRP PUISSANCE RAYONNÉE NOMINAL BANDWIDTH 30.2 MHz 30.1 MHz 41.0 MHz 80.8 MHz 77.9 MHz...
- Page 8 Chaque ash = jusqu'à 3dB de réduction de gain clignotement lent In 2001 SmoothTalker produced the rst digital mobile cellular signal booster in North America with FCC and ICAN approval. We continue to lead with the most powerful and intelligent boosters in the world.
