SmoothTalker Mobile X6 Series Quick Install Manual

Quick Install Guide
How it works:
The Booster captures the signal outside the vehicle and boosts it to
the phone. It takes the weak signal from the phone and boosts it back
to the tower. Boosts both voice and data simultaneously.
Generally the booster will cover the whole space in a car or pick up truck.
In the case it is used in a boat or RV the range will be limited by the outside
signal level.
LED Lights Status Explanation
Attenuation (Att)
Each ash indicates up to 3dB of gain reduction also known as gain attenuation.
For example: three ashes equals 9dB of attenuation.
Orange Solid ON = Full Gain & Green Solid ON = Full Gain
No Flashing = Full Gain
Orange Solid ON & Green Slow Flashing = Oscillation Att
Each Flash = up to 3dB of gain reduction
Orange O & Green Fast Flashing = Oscillation Shutdown
Fast Flashing = booster shutdown (pls troubleshoot)
Orange Slow Flashing & Green Solid ON = RX High Power Att
Each Flash = up to 3dB of gain reduction
MADE IN
FCC & IC
NORTH
Approved
AMERICA
1-877-726-3444
ORANGE LED GREEN LED
High Power Oscillation
ON ON
SOLID ON SOLID ON
ON
SOLID ON SLOW FLASHING
OFF
FAST FLASHING
ON/
SLOW FLASHING SOLID ON
stealth
Automatic power
control protects the
tech
®
Cellular Network
Smoothtalker.com
Smoothtalker
Cellular Signal Boosters - Boosting Your Signal Anywhere

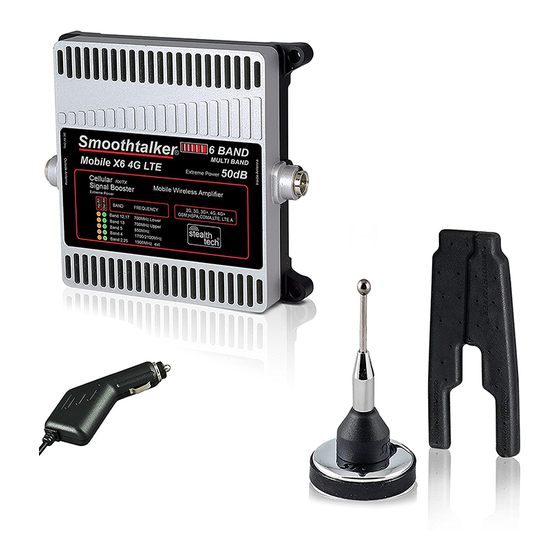

Mobile X650MSPC shown
