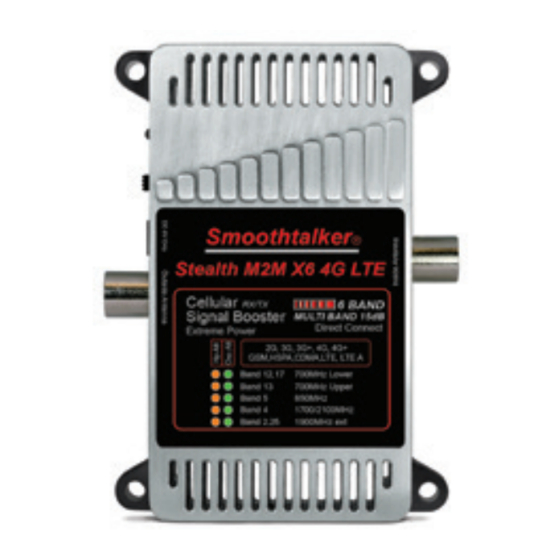

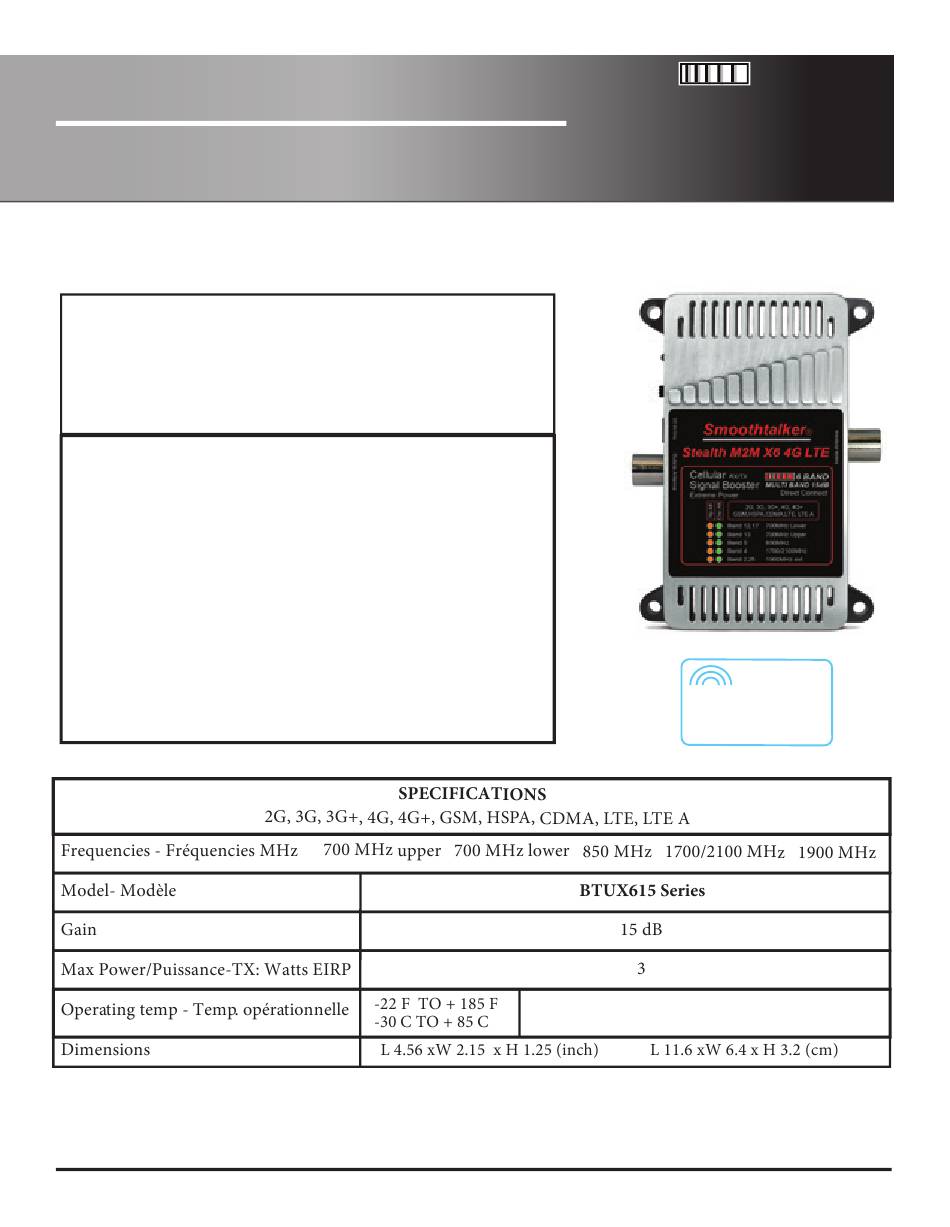

STEALTH M2M X6 4G LTE
Direct Connect Cellular Machine to Machine Signal Booster
Extreme Power
Connexion directe Booster de Signal cellulaire de Machine à Machine
Extrême Puissance
User Manual - Manuel de l'utilisateur
Cellular
RX/TX
Signal Booster
DIRECT CONNECT
CONNEXION DIRECTE
2G, 3G, 3G+, 4G, 4G+
GSM,HSPA,CDMA,LTE, LTE A
Band 12,17
Band 13
Band 5
Band 4
Band 2,25
15dB 6 BAND
MULTI BAND 15dB
Machine to Machine
700MHz Lower
700MHz Upper
850MHz
1700/2100MHz
1900MHz ext
Multi Bandes
à 6 BANDES
BTUX615
Canada
stealth
POWER SUPPLY
12V DC CLA OR 12V DC
ALIMENTATION
fused or 120V AC/DC
Smoothtalker.com
6 BAND
MULTI BAND
15dB
tech
®
Advertisement
Related Manuals for SmoothTalker STEALTH M2M X6
Summary of Contents for SmoothTalker STEALTH M2M X6
- Page 1 6 BAND STEALTH M2M X6 4G LTE MULTI BAND 15dB Direct Connect Cellular Machine to Machine Signal Booster Extreme Power Multi Bandes Connexion directe Booster de Signal cellulaire de Machine à Machine à 6 BANDES Extrême Puissance BTUX615 User Manual - Manuel de l’utilisateur...
- Page 2 It is normal for the booster to be quite warm while the phone is in use state. All parts shown are not included in all kits. Please check your model number for more details at smoothtalker.com REMARQUE: Seule une des antennes extérieures est incluse dans ce kit (véri er le modèle) Tous les kits comprennent les supports nécessaires et les câbles coaxiaux pour le montage.
-
Page 3: Installation
Installation 1) This Direct Connect M2M Booster is designed to be placed between the cellular device and it’s outside antenna. Make all connections as in Fig. 1. 2) Placement: Place the outside antenna in the middle of the vehicle roof. If the vehicle has a sunroof please place the antenna on the roof towards the back window. -
Page 4: Understanding The Lights
RX High Power Attenuation Oscillation Attenuation Band Frequency Band 12, 17 700MHz Lower Band 13 700MHz Upper Band 5 850MHz Band 4 1700/2100MHz Band 2, 25 1900MHz ext Green LED Orange LED Understanding the lights The “LEDS” on the face of the booster indicate operating gain state. In any given frequency band there is a Green and Orange LED which indicate the gain status of the band. - Page 5 As you approach another nearby cell tower the Orange may begin ashing again and will stop ashing as you get farther away. This is the normal operating process. Typical Installation Stealth M2M X6 (Fig. 3 )
- Page 6 à utiliser l’équipement. OPERATIONAL BANDS - Band 12/17 Band 13 Band 5 Band 4 Band 2/25 GROUPES OPÉRATIONNELS RADIATED POWER Stealth M2M X6 4G LTE 1 Watts EIRP PUISSANCE RAYONNÉE NOMINAL BANDWIDTH 31.3 MHz 38.7 MHz 47.3 MHz 89.0 MHz 87..0 MHz...
- Page 7 Chaque ash = jusqu'à 3dB de réduction de gain clignotement lent In 2001 SmoothTalker produced the rst digital mobile cellular signal booster in North America with FCC and ICAN approval. We continue to lead with the most powerful and intelligent boosters in the world.
