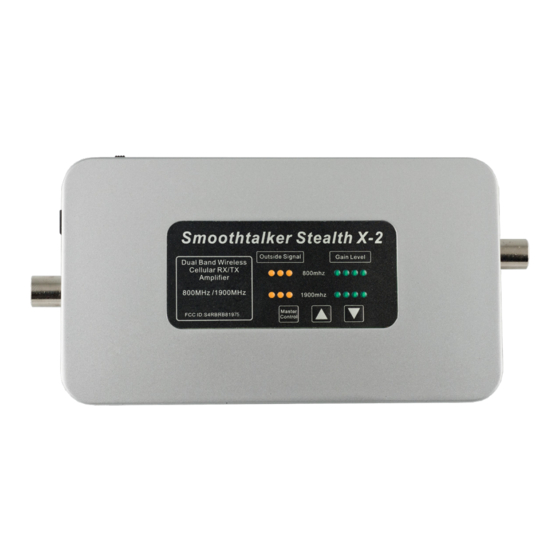

SmoothTalker Stealth X2 User Manual

2-band 3g 4g lte extreme power building boosters
Hide thumbs Also See for Stealth X2:

Advertisement

Table of Contents

®
Stealth X2 Dual Band Boosters
BUILDINGS
HOMES
COTTAGES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stealth X2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SmoothTalker Stealth X2

Summary of Contents for SmoothTalker Stealth X2

  • Page 1 ® Stealth X2 Dual Band Boosters BUILDINGS HOMES COTTAGES...
  • Page 2 ® Stealth X2 Dual Band Boosters Table of Contents Features ..............3 Specifications .............3 Package contents ...........4 Optional Parts ............4 Antenna and Booster Installation .....5 Installation Illustrations .........6 Control panel ............7 LED lights - Outside signal level/RX power ..7 Gain level ..............8 Manual gain control ..........8...

  • Page 3: Features

    Features Pwr ON/OFF Switch & LED Receive Signal Power Level Gain Level (Orange LED) Indicator (LED) Control Buttons for: Master Control Manual Gain - 2dB steps & Switch LED Brightness Level This is a CONSUMER device BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent.

  • Page 4: Package Contents

    Package Contents NOTE: Antennas and cables may be different than shown depending on your kit configuration Booster Outside Antenna Inside Antenna Power Supply Extension Cable Optional Parts Co-Ax Cables Antenna Pole Mount Kit Omni Directional RF Splitter/Power Divider Co-Ax Adapters Antennas Pg.

  • Page 5: Antenna And Booster Installation

    If outside signal is poor or marginal, splitting signal to more than one distribution antenna results in decreased coverage for both distribution antennas. Use only genuine SmoothTalker splitters. Contact your dealer or www.smoothtalker.com Amplifier/Booster Location: Install the repeater in a location that has proper ventilation, away from excessive heat and moisture.
  • Page 6 Fig. 1 Directional antennas separation distance - Close Omni directional antennas separation distance - Far Distribution Antenna (pointed indoors) Booster Donor Antenna (pointed outdoors) Fig. 2 Fig. 3 Fig. 4 Pg. 6...

  • Page 7: Control Panel

    Control Panel: Understanding the Control Panel and LED lights General: Mobile networks, phones and data devices operate in two frequency bands (800Mhz & 1900Mhz). The Stealth Booster will amplify signals in both bands if they are present. The band that the phone or cellular data device will transmit (TX) and receive (RX) on is determined by the cellular provider and cannot be chosen by the user.

  • Page 8: Gain Level

    Gain Level: Understanding the Control Panel and LED lights General: Four green LED lights for each frequency band will indicate the level of amplification that is being applied by the Booster to the receive (RX) signal and transmit (TX) signal. Gain is applied to both RX and TX signals.

  • Page 9: Tech Support

    More then 35db of attenuation the Freq band will shut down and it’s LED lights will flash together every 2 seconds 800mhz 1900mhz Tech Support: techsupport@smoothtalker.com Live tech Support: 9:00 am - 6:00 pm EST Mon - Fri Toll free1-877-726-3444 Pg. 9...

  • Page 10: Frequently Asked Questions

    If antenna location is optimized the coverage area is still too small, use a higher gain booster. Will the booster boost signals from service providers other than mine? Yes. Smoothtalker Stealth series boosters are wideband RF amplifiers that will improve all Cellular and PCS signals in your area.

  • Page 11: Inside Antennas

    FCC Rules specify that all approved antennas, cables and accessories to be used with this booster are to be listed in this manual. The approved accessories are listed below. Inside Antennas Minimum Maximum Net gain Antenna Part # Description Cable Cable loss Antenna (dBi)

  • Page 12: Splitters/Power Dividers

    Extension Cables Cable Part # Description Cable Minimum Cable loss (dB) SEMRCBXmaXfe10 extension cable 10 ft. SEMRC205 SEMRCBXmaXfe20 extension cable 20 ft. SEMRC 205 SEMRCBXmaXfe30 extension cable 30 ft. SEMRC205 SEMRCBXmaXfe40 extension cable 40 ft. SEMRC205 SEMRCBXmaXfe50 extension cable 50 ft. SEMRC205 SEMRCBXmaXfe60 extension cable 60 ft.

  • Page 13: Specifications

    Specifications Operational Bands 800MHz Cellular and 1900MHz PCS Impedance 50 Ohms TX Output Power 29.9 dBm EIRP RX Output Power 11.0 dBM EIRP Oscillation Control (Automatic) 35 dB in 1db steps Oscillation Control Timing < 1 sec RX High Power Control Dynamic up and down <...

  • Page 14: Glossary Of Terms

    2-User changes changes or modifications will void warranty. Warranty Smoothtalker boosters are warranted against manufacturing defects for a period of two years from the date of purchase. The original bill of sale is required for any warranty claims. For warranty claim contact original dealer or smoothtalker.com...
