Page 1: User Manual

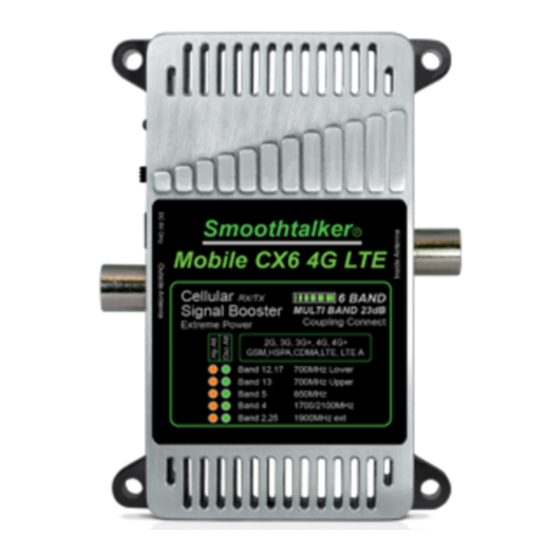

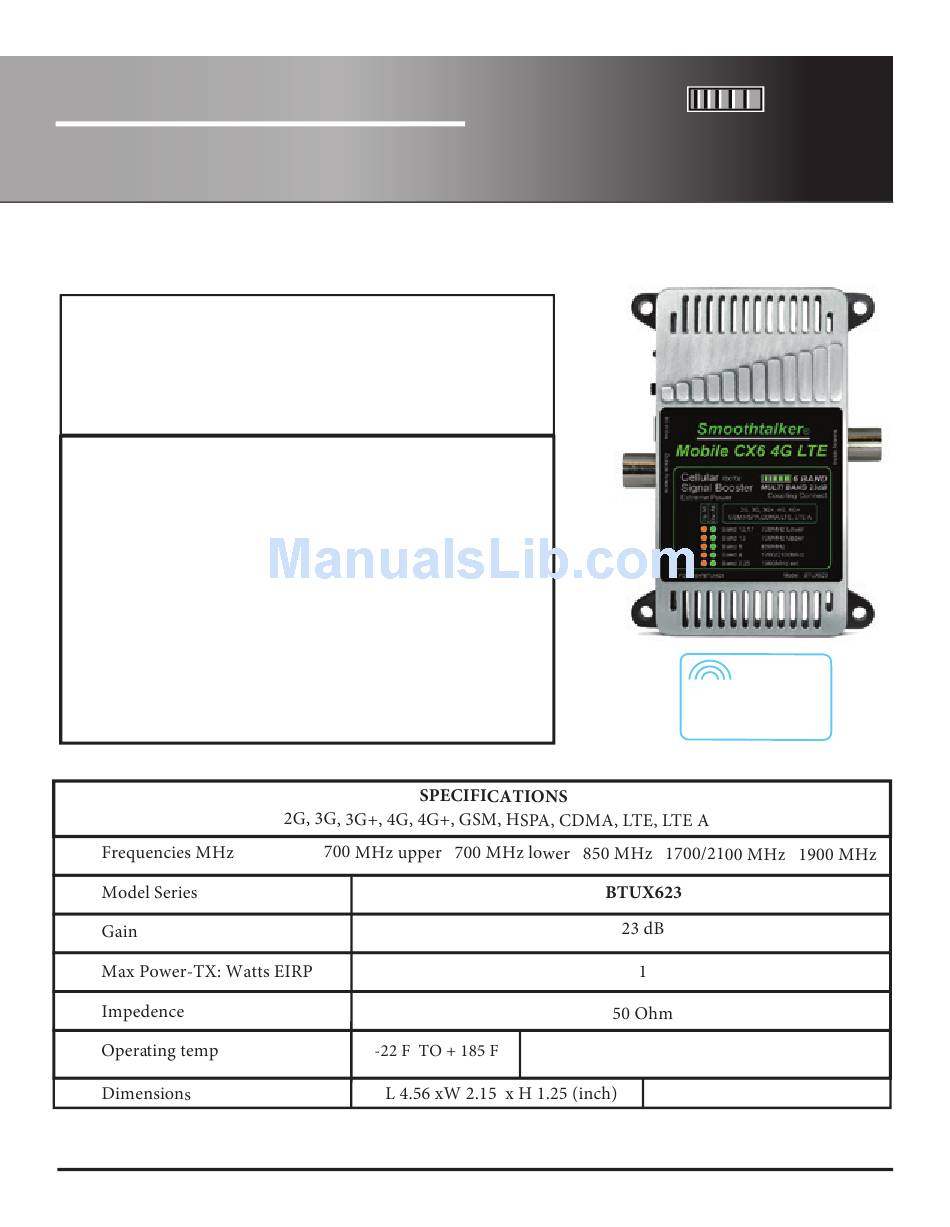

Mobile CX6 4G LTE 6 BAND MULTI BAND Vehicle Coupling Cradle Connect Cellular 23dB Signal Booster - Extreme Power BTUX623 User Manual Cellular RX/TX 23dB 6 BAND Signal Booster MULTI BAND 23dB Coupling Connect CRADLE TYPE Extreme Power 2G, 3G, 3G+, 4G, 4G+... - Page 2 Contents Cell Phone Cradle Cellular Booster Optional outside antenna SRP1X SEM2MX SEM11MX SEM14MX Optional Power Types 120 volt AC/DC 12 volt socket plug type 12 volt install type NOTE: Only one of the outside antennas is included in this kit (check model) All kits include necessary brackets and co-axial cables for assembly.
- Page 3 Installation 1) Connect the outside antenna to the side of the booster marked as “outside antenna” Connect the coupling holder to the side of the booster marked as “inside antenna” 2) Placement Place the outside antenna in the middle of the vehicle roof. If the vehicle has a sunroof please place the antenna on the roof towards the back window.
- Page 4 Understanding the LED Indicators RX High Power Attenuation Oscillation Attenuation Band Frequency Band 12, 17 700MHz Lower Band 13 700MHz Upper Band 5 850MHz Band 4 1700/2100MHz Band 2, 25 1900MHz ext Green LED Orange LED The “LEDS” on the face of the booster indicate operating gain state. In any given frequency band.
- Page 5 LED Lights Explanation and Troubleshooting Each ash indicates 3dB of gain reduction also known as gain attenuation. For example: three ashes equals 9dB of attenuation. Green LED indicates loop oscillation status. When ashing it means reduction of gain. To improve you need to spread the distance between the inside and outside antennas.
- Page 6 Approved Equipment List For speci cations of any of the Smoothalker FCC approved part numbers listed below visit smoothtalker.com FCC requirements prohibit the use of unauthorized Antennas, Cables, and/or Coupling devices. You MUST operate this device with approved antennas and cables as speci ed by the manufacturer.
- Page 7 LED Lights Indicate Gain Status Attenuation (Att) ORANGE LED GREEN LED RX High Power Oscilation Each ash indicates 3dB of gain reduction also known as gain attenuation. For example: three ashes equals 9dB of attenuation. Orange Solid ON = Full Gain & Green Solid ON = Full Gain No Flashing = Full Gain SOLID ON SOLID ON...
- Page 8 WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device. In 2001 SmoothTalker produced the rst digital mobile cellular signal booster in North America with FCC and ICAN approval. We continue to lead with the most powerful and intelligent boosters in the world.
