Boosting Your
Building
Home
Office

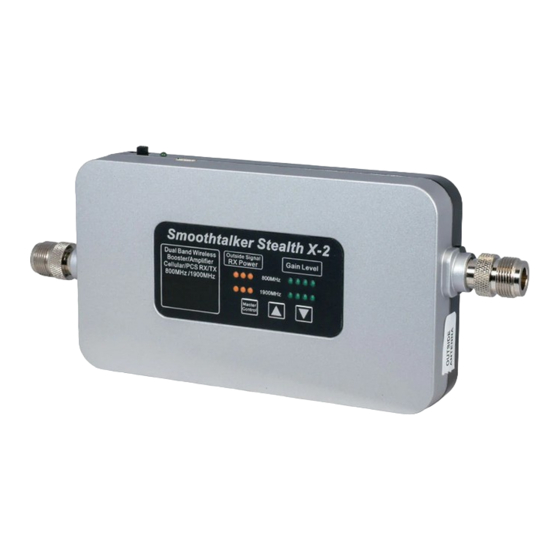

STEALTH X2 - HIGH POWER
Stealth X2 home and building boosters increase the cell phone or mobile device incoming and outgoing cellular signals.
They can help eliminate dropped calls and increase battery life and data speeds with simultaneous boost of both voice and
data services. The LED console display signal level indicators help make installation quick and easy. The Smoothtalker
Stealth X2 Building Boosters are the most technologically advanced wireless cellular signal boosters made. They feature
proprietary "Stealthtech technology" that prevent shutdowns from poor antenna placement and changing environment.
This advanced technology protects the cellular towers from overloading and provides maximum signal coverage to the to
the mobile device. Stealth X2 boosters are recommended for areas located within 10 to 40 miles from the cell tower.
Models
Gain
Up to sqft
Size
How it works:
The system includes inside antenna, outside antenna, all connection cables and the booster unit. The outside antenna
receives cellular signal from the tower and sends it to the booster unit which then amplifies this signal and sends it into
the building via the inside antenna. The inside antenna receives cellular signal from the phone or cellular device and
sends it to the booster unit which then amplifies the signal and sends it back to the cellular tower via the outside antenna.
Which Booster model do I need to cover my area?
First you should determine the signal strength outside the building. Then see the chart below to see how much
area you can expect to cover.
In locations where the outside signal is weak, a higher gain or higher power model booster unit will be required in
order to increase the coverage area.
Example:
If the outside signal is fair to good, the Stealth X2 60 model can cover up to 4000 sqft.
However if the outside signal is poor the coverage area will be reduced and in cases where the outside signal is extremely
low the coverage area could be only a few feet from the inside antenna.
(See coverage area and signal strength charts below to help determine which model you need)
NOTE: Stealth X2 boosters are recommended for distances between 10 to 40 miles from the cellular tower.
X2 60
X2 65
60dB
65dB
4000
7000
Smoothtalker
Cell Signal
Anywhere
Home & Building
X2 72
72dB
12000
R
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SmoothTalker STEALTH X2 Series
Summary of Contents for SmoothTalker STEALTH X2 Series
- Page 1 They can help eliminate dropped calls and increase battery life and data speeds with simultaneous boost of both voice and data services. The LED console display signal level indicators help make installation quick and easy. The Smoothtalker Stealth X2 Building Boosters are the most technologically advanced wireless cellular signal boosters made. They feature proprietary "Stealthtech technology"...
- Page 2 STEALTH X2 series MODELS AND COVERAGE AREA OUTSIDE X2 60 X2 65 X2 72 CELLULAR SIGNAL COVERAGE COVERAGE COVERAGE LEVEL AREA SQFT. AREA SQFT. AREA SQFT. 5 bars 4,000 7,000 12,000 4 bars 2,000 3,500 6,500 3 bars 1,000 2,000...
- Page 3 In this case you can try to increase your gain by moving the outside antenna to a different location which points more to your own cellular provider tower or use a Smoothtalker Beam directional antenna which points directly at your own cell tower.
- Page 4 Cellular Signal Boosters - Boosting Your Signal Anywhere Made in Smoothtalker.com Approved North 2 Year Who is Smoothtalker ? Aurora, Ontario L4G 6V8 America Warranty Tech Support 3 Year In 2001 we designed the first mobile digital Cellular Signal Booster in North America.
