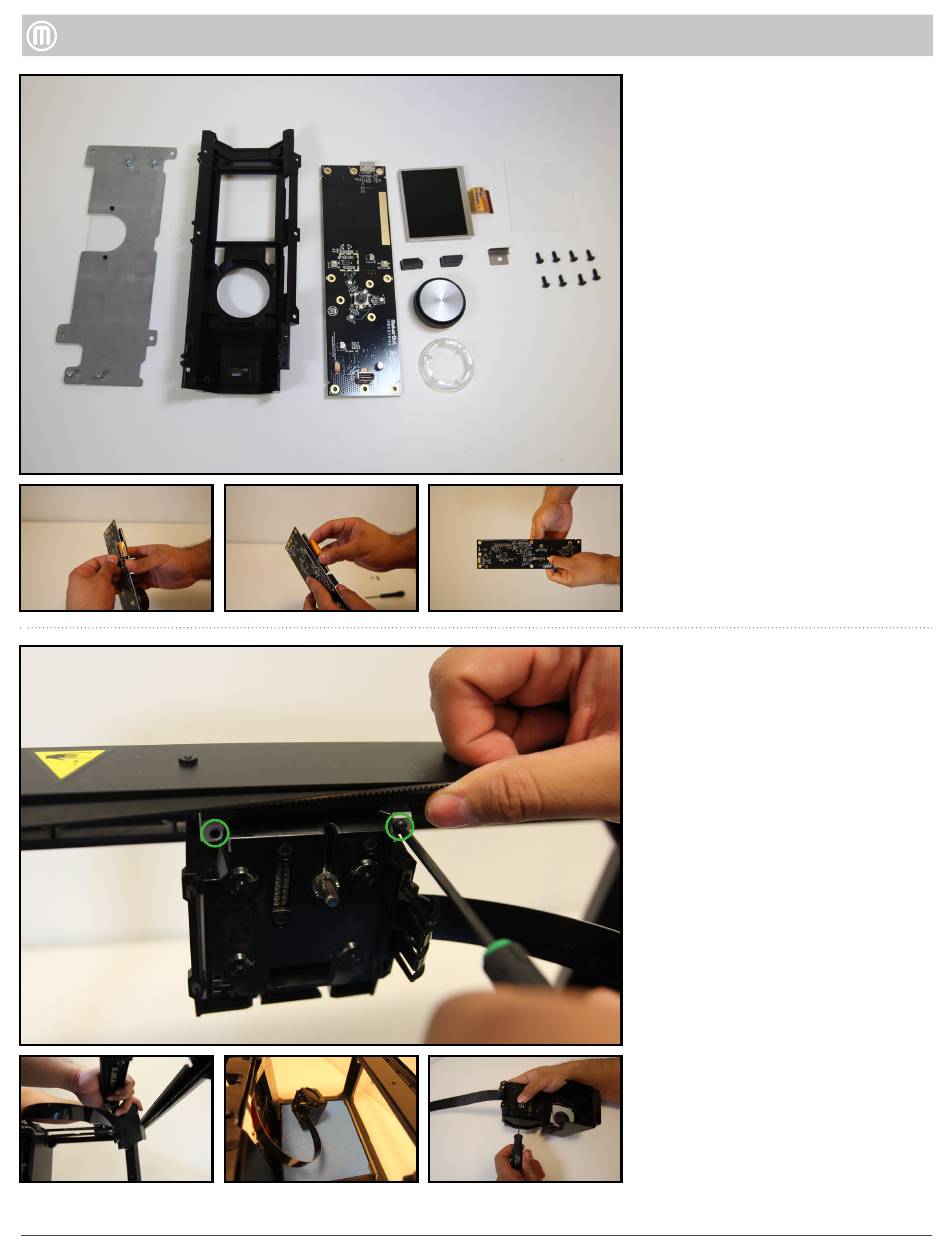

Step 5 - Disassemble
the UI (Optional)
•
Note: This step only necessary
if you troubleshooting the LCD
screen or Hoboken PCB
To disconnect the LCD Screen lift
the brown tab on the back of the
Hoboken PCB and gently pull out
the LCD Screens' ribbon cable
and lift the LCD Screen off of the
Hoboken PCB. Notice the two (2)
foam spacers on the back of the
LCD Screen
NOTE: The LCD Screen is not
glued to the Hoboken PCB it's held
by pressure
Step 6 - Remove Carriage
Assembly
•
Remove the two (2) Torx screws
attaching the Carriage Assembly
to the Carriage Adapter using a
T10.
Push on the back of the Carriage
Assembly (push toward the front
of the printer) to remove the
carriage from the bracket.
(optional) Use a 1.3mm hex driver
to remove the set screw holding
the Castle Gear on to the Carriage
Motor axle.
