Bill of Materials, PCB Layout, and Schematics
7.2

PCB Layout

Figure 16
through
28
ADS8900BEVM-PDK
Figure 19
illustrate the EVM PCB layout.

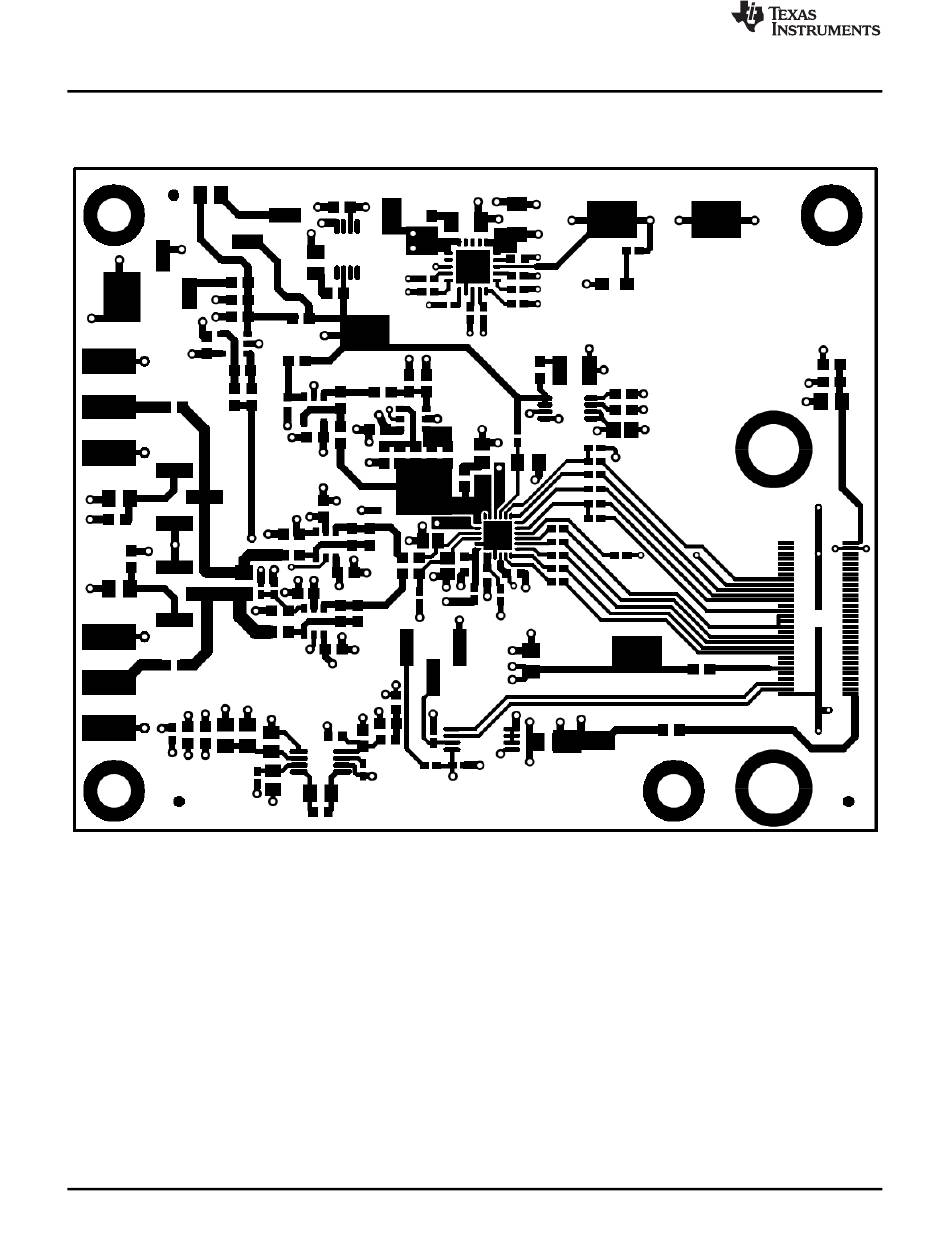

Figure 16. ADS8900BEVM PCB Layer 1: Top Layer
Copyright © 2016, Texas Instruments Incorporated
www.ti.com
SBAU269 – October 2016
Submit Documentation Feedback
