Register Map Configuration Tool; Register Map Configuration - Texas Instruments ADS8900BEVM-PDK User Manual

www.ti.com
6.2

Register Map Configuration Tool

The register map configuration tool allows the user to view and modify the registers of the ADS8900B.
This tool can be selected by clicking on the Register Map Config radio button at the Pages section of the
left pane, as indicated in
Configuration Settings that enable ADC sampling at the maximum sampling rate specified for the ADC.
The register values can be edited by double-clicking the corresponding value field. If interface mode
settings are affected by the change in register values, this change reflects on the left pane immediately.
The effect of changes in the register value reflect on the ADS8900B device on ADS8900BEVM-PDK
based on the Update Mode selection, as described in
Section 6.3 through
PDK GUI.
SBAU269 – October 2016
Submit Documentation Feedback

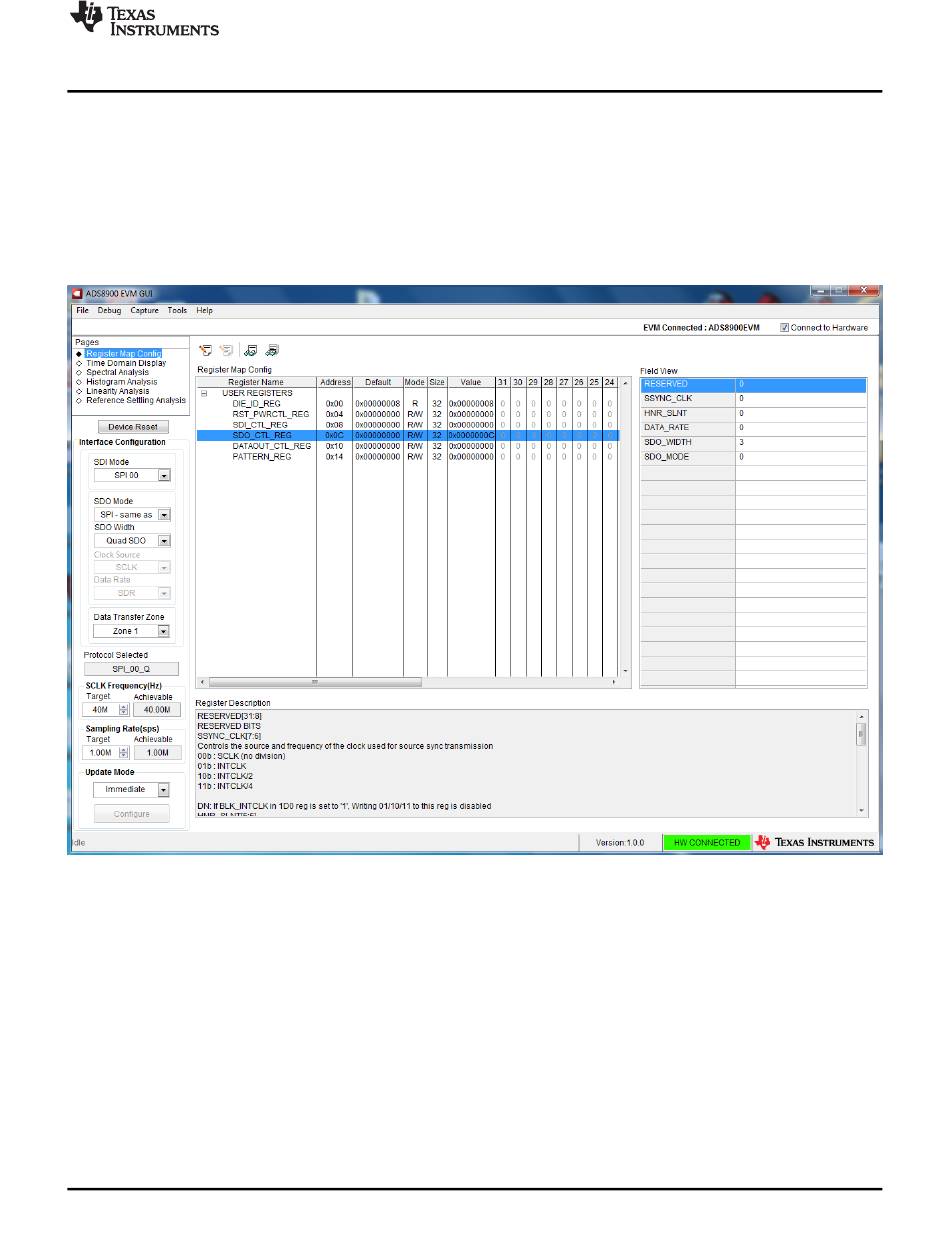

Figure 10. On power-up, the values on this page correspond to the Host
