O P E R A T I N G I N S T R U C T I O N S

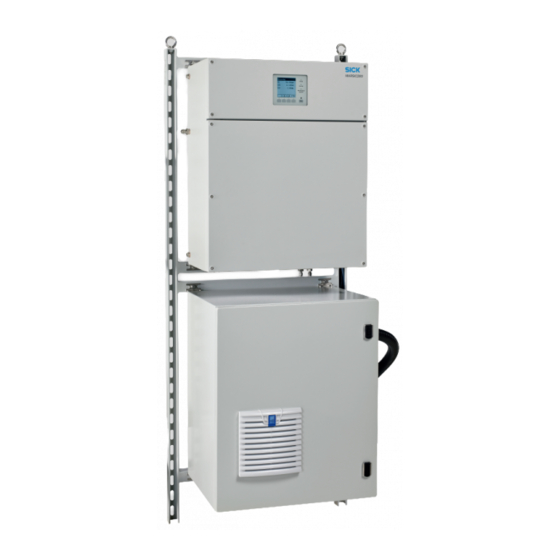

MARSIC280
Ship Emission Measuring Devices

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARSIC280 and is the answer not in the manual?

Questions and answers

Related Manuals for SICK MARSIC280

Summary of Contents for SICK MARSIC280

  • Page 1 O P E R A T I N G I N S T R U C T I O N S MARSIC280 Ship Emission Measuring Devices...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Storage...................... Mounting..................... 24 Safety......................Scope of delivery..................Screw fittings..................... 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 4 Switch-on procedure for one measuring point....... 7.1.2 Switch-on procedure for two measuring points..... O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...
  • Page 5 Switching the device off................Modbus functions..................8.5.1 Activating Modbus functions........... 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 6 10.10.3 Replacing the sample gas fine filter........10.10.4 Replacing the condensate pump hose........O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...
  • Page 7 13.2 Technical data................... 113 13.2.1 Measured values..............114 13.2.2 Ambient conditions..............114 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 8 Liability disclaimer..............119 14.1.2 Software licences..............119 14.1.3 Source codes................119 O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 9: About This Document

    Hazard (general) Hazard by electrical voltage Hazard by acidic substances 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 10: Warning Levels / Signal Words

    Patch Management. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 11: Safety Information

    There is a risk of electric shock when working on the measuring device with the voltage supply switched on. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 12: Dangerous Substances

    Warning for general hazard Warning for hazard by electric voltage, possibly also by residual electric voltage O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 13: Intended Use

    • Service training 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 14 Authorized operator Ü (possibly customer training at SICK) • Service training O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 15: Product Description

    Test gas: Generic term for zero and reference gas • Instrument air: Clean compressed air 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 16: Layout And Function

    Control module • Measurement technology • Analog and digital interfaces O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 17: Sample Conditioning And Distribution Unit

    à Gas module (flow/humidity/pressure) 3.3.3 Sample conditioning and distribution unit View 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 18: Gas Sampling Unit For Indoor Installation

    When no voltage is applied, the heated sample gas line and the analyzer are purged with instrument air. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 19: Gas Sampling Unit For Outdoor Installation

    When no voltage is applied, the heated sample gas line and the analyzer are purged with instrument air. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 20: Hose Bundle Line

    The heated sample gas line leads the flue gas from the gas sampling unit to the measuring device. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 21: Instrument Air, Conditioning

    (Ethernet). 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 22: Remote Maintenance (Option)

    Related topics • MPR Meeting Point Router Operating Instructions O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 23: Transport And Storage

    When high air humidity can be expected: Include a drying agent (Silica-Gel) in the packing 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 24: Mounting

    Using a plastic fitting Overview Screw-in piece Clamping ring Knurled nut Hose O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 25: Using A Push-In Fitting (Pneumatic)

    • Connect the discharge hose to the condensate pump 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 26: Installation Sequence

    Ensure that the mounting location has sufficient load-bearing capacity. • Observe appropriate ambient conditions. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 27: Laying The Sample Gas Lines

    Lay the end without electrical connection to the gas sampling unit. Observe a minimum bending radius of 300 mm. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 28: Laying The Hose Bundle Line

    Figure 9: Lines – clearance and bending radius Fasten the hose bundle line accordingly (e.g. on cable trays). O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 29: Connecting The Hose Bundle Line To Gas Sampling Unit (115 V)

    Connect the hose bundle line. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 30 Line 2 / wire 4 = reserve (do not cut off) ° O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 31: Connecting The Hose Bundle Line To Gas Sampling Unit (230 V)

    PA hose, black, DN6/8, labeled "1" PA hose, blue, DN6/8, labeled "2" 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 32 Lay the Pt100 and power supply lines through the clamps to the cable duct. Open cover. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...
  • Page 33 Clamp the two-point jumper to contacts 4 and 5. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 34: Connecting The Hose Bundle Line To The Sample Conditioning And Distribution Unit (One Measuring Point)

    Connect the hoses of the hose bundle line to the valve block. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 35: Fitting The Sample Gas Line On The Gas Sampling Unit

    Open the clamp of the strain relief of the heated sample gas line. Insert the heated sample gas line. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 36: Connecting The Hose Bundle Line To The Sample Conditioning And Distribution Unit (One Measuring Point)

    Connect the heated sample gas line to the cooler inlet with the clamping ring screw connection. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 37: Connecting The Hose Bundle Line To The Sample Conditioning And Distribution Unit (Two Measuring Points)

    24 • Wiring diagram of the measuring device 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 38: Connecting The Discharge Hose To The Condensate Pump

    Connect the reducer from 6 mm to 10 mm to the discharge hose of the conden‐ sate pump. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 39: Connecting The Filling Level Sensor To The Condensate Container (Option)

    The status LED indicates whether the sensor is triggered or not and sends an 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 40: Connecting The Valve Block

    5.5.15 Connecting the gas connections on the analyzer Overview O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 41: Closing The Shut-Off Valve Of The Control Gas

    < 0.3 bar. The test gas is fed directly to the analyzer when the shut-off valve is opened. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 42: Connecting The Instrument Air

    • Instrument air specification: see "Gas supply", page 117 O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 43: Fitting The Gas Sampling Unit

    Switch off the device and allow the components to cool down. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 44: Fitting The Gas Sampling Unit On The Flange

    Gas sampling tube Welding neck flange Filter housing flange Filter housing O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...
  • Page 45 Screw the filter housing flange of the gas sampling unit to the welding neck flange. Fit the weather hood. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 46: Electrical Installation

    For a voltage supply of 115 V and 230 V: Remove and fit the bridge from the accessory pack. Connect the feed line with ferrule. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 47: Connecting Data Communication

    Establish a safe contact between the signal cable shield and the cable gland. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 48: Commissioning

    Zero gas available on sample conditioning and distribution unit. • Leak test .has been carried out. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 49: Connecting With Sopas Et

    "Changing the IP address on the BCU", page 50 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 50: Changing The Ip Address On The Bcu

    Open the BCU module with a double-click. Open the “Test gas table” menu under “Parameter”. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 51: Determining Adjustment Gas Purging Times

    BCU. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 52: Performing Zero Point Validation And Adjustment

    Set the flow rate on the throttle to 100 l/h. Read off the flow rate on the flow meter. ✓ Measured value displays 0 ppm. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 53: Performing Sensitivity Validation Or Adjustment

    14. Use the arrow keys to set the time for the first automatic val. / adj. and confirm with “Save”. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 54: Setting Automatic Validation And Adjustment With Sopas Et

    ✓ Date and time setting are synchronized to the PC. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 55: Setting The Heating Controller

    Display Cancel Arrow up Confirm Arrow left Arrow down 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 56: Checking The Condensate Pump Cooler

    Drag the current raw flow sensor value to the lower right of the window. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 57: Setting The Measuring And Purging Times

    The measuring time includes the measuring time of the corresponding sampling unit. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 58: Activating And Deactivating Measuring Points

    ✓ The settings menu of the measuring point opens. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 59: Setting Analog Outputs With Sopas Et

    If there are several measuring points: select the corresponding measuring point before the test. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 60 15. Return gas lines to original position. 16. Click “Automatic”. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 61: Recognizing The Safe Operating State

    Check only the green LED lights on the display. Check all measured values are plausible. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 62: Operation

    Diag is shown only when a message is pending. To display the message: Press this button. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 63: Status Messages

    Check the hours of operation of the DEFOR lamp and replace when necessary. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 64: Activating Standby Mode

    Select “Type” from the “TCP” selection menu. Set “Activation” to “on”. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 65: Measured Value Inquiry Mbo Desox

    Float AB CD Unequal 0.0: Ena‐ inputs Disable 0.0: 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 66 0.0: Reset to be able to start again later O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 67: Menus

    Validation results Parameters Date - Time Special Customer functions. Language 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 68: Changing The User Level

    Select “Group” and click “Select all”. ✓ User level has been changed. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 69: Maintenance

    Data recovery can be used to correct erroneous data or update the system. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 70: Maintenance Plan

    Replace the hose of the condensate pump. hose", page 83 O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 71: Consumable, Wearing And Spare Parts

    Check the condensate outlet for clogging. Check the fill level of the collecting container, if required. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 72: Checking Operation

    Replacing the water trap: see "Replacing the water trap", page 84 O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 73: Cleaning

    Selecting “On” sets the maintenance signal. Selecting “Off” switches the mainte‐ nance signal off. Press “Save” to confirm. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 74: Setting The Maintenance Condition With Sopas Et

    Allow the surface of the device parts to cool down to body temperature or wear suitable protective gloves. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 75: Replacing The Glass Fiber Filter Element

    Replacing the fine filter cartridge: Loosen the rotary handle counterclockwise. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 76 If the filter cover is hot: Place the filter cover on a heat-resistant mat. Pull out the bottom flat seal with a hook. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...
  • Page 77 11. Swing back the mounting bracket. Make sure that the pressure disk is behind the mounting bracket. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 78: Replacing The Non-Return Valves

    Observe the alignment of the non-return valves! • Arrow must point in housing direction. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 79: Replacing The Sample Gas Line

    Pull the sample gas line out of the analyzer. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 80: Laying The Sample Gas Lines

    ≥ 100 mm Figure 21: Lines – clearance and bending radius O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 81: Fitting The Sample Gas Line On The Gas Sampling Unit

    Fit on the gas sampling unit with the clamping ring screw connection. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 82: Swapping The Temperature Sensors On The Sample Gas Line

    2 × PT100 connections (1 as reserve) Procedure Disconnect defective temperature sensor. Connect reserve. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 83: Replacing The Sample Gas Fine Filter

    Replacing the condensate pump hose Prerequisites • Measuring device is switched off. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 84: Replacing The Water Trap

    Set the measuring device to Standby mode before turning it off. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 85: Replacing The Filter Pad

    Take filter pad out. Insert new filter pad. Close the cover. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 86: Emptying The Condensate Container

    Sample gas outlet (seen from the front, bottom right) O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 87: Fit The Analyzer

    For individual settings: Inform your contact person when ordering so that the settings can be adopted. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 88: Replacing The Complete Analyzer Module

    Sample gas inlet (rear) Sample gas outlet (front) Complete analyzer module O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 89: Fit The Complete Analyzer Module

    It is in the analyzer bottom part. It can be removed complete with all modules. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 90 Connect the sample gas outlet (front). Check gas tightness of the sample gas path. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 91: Replacing The Analyzer Door With Control Unit

    Close the door and check the fit (screw connections). 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 92: Replacing The Power Supply Unit

    Disconnect all electric lines. Take out the power supply unit. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 93: 10.10.11.2 Fit The Analyzer Power Supply Unit

    The analyzer fuse is on the left in the analyzer top part. Used fuse: F 10A0 250 V D5*20 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 94 Switch the On/Off switch on again. Close the housing door again. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 95: Replacing The Defor Module

    Close the housing door of the analyzer bottom part. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 96: Replacing The Co Module (Finor)

    The gas module (measurement of flow, humidity and pressure) is in the analyzer bottom part. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...
  • Page 97 Connect the sample gas outlet according to the marking made. Refit the complete analyzer module. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 98: Troubleshooting

    O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...
  • Page 99 Restart device. If error is position position repeated, replace complete analyzer module 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 100 If error is repeated, replace complete analyzer module O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...
  • Page 101 If error is tion tion repeated, replace complete analyzer module 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 102 Restart device. If error is repeated, replace module O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...
  • Page 103 Software overflow or mem‐ ment. ory error. Perform a warm start. *2 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 104 Restart device. Replace complete analyzer module if necessary O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...
  • Page 105 Repeat data backup failed failed 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 106 Error in BCU configuration in Table Table Table BVSi Table O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...
  • Page 107 Adj./Val. 8 Adj./Val. 8 adjustment / validation cator was activated 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 108 Gas pump was manually Status indicator Pump off Pump off switched off. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...
  • Page 109 Dry the gas lines. Service required for drying 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 110 Check network cables between the modules and external. If the error cannot be corrected *2 O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 111: Decommissioning

    Contact your local SICK representative. Addresses: See last page of Operating Instructions. Clean device. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 112: Cleaning The Device Before Returning

    The device can easily be disassembled into its components which can then be sent to the respective raw material recycling facilities. O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK...

  • Page 113: Technical Data

    See the enclosed System Description for the configuration of your device. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 114: Measured Values

    –200 ... +200 hPa relative Dust load < 200 mg/m O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 115: Housing

    Condensate vessel status Alarm Zero Zero point calibration, remote Adjust 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 116: Power Supply

    Analyzer unit • Digital outputs gland on both sides O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 117: Gas Supply

    115 V or 230 V Power consumption 90 VA/m 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...

  • Page 118: Torques For Screw Fittings

    M 39 1330 1780 2416 3016 3597 5123 5994 O P E R A T I N G I N S T R U C T I O N S | MARSIC280 8021339/1CHC/V1-1/2021-07 | SICK Subject to change without notice...

  • Page 119: Annex

    Please enter “Open Source Software” as subject. 8021339/1CHC/V1-1/2021-07 | SICK O P E R A T I N G I N S T R U C T I O N S | MARSIC280 Subject to change without notice...
  • Page 120 E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...

Table of Contents
