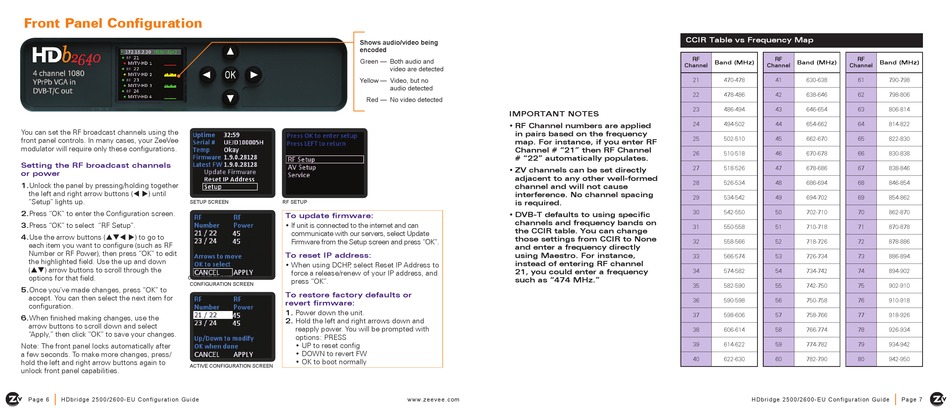

Front Panel Configuration
You can set the RF broadcast channels using the
front panel controls. In many cases, your ZeeVee
modulator will require only these configurations.
Setting the RF broadcast channels
or power
1. Unlock the panel by pressing/holding together
the left and right arrow buttons ( ) until
"Setup" lights up.
SETUP SCREEN
2. Press "OK" to enter the Configuration screen.
3. Press "OK" to select "RF Setup".
4. Use the arrow buttons ( ) to go to
each item you want to configure (such as RF
Number or RF Power), then press "OK" to edit
the highlighted field. Use the up and down
() arrow buttons to scroll through the
options for that field.
CONFIGURATION SCREEN
CONFIGURATION SCREEN
5. Once you've made changes, press "OK" to
accept. You can then select the next item for
configuration.
6. When finished making changes, use the
arrow buttons to scroll down and select
"Apply," then click "OK" to save your changes.
Note: The front panel locks automatically after
a few seconds. To make more changes, press/
hold the left and right arrow buttons again to
ACTIVE CONFIGURATION SCREEN
unlock front panel capabilities.
|
Pa ge 6
H D br i dg e 25 0 0 / 2 6 0 0 -E U Co n fi g u ra tio n Gu id e
Shows audio/video being
encoded
Green — Both audio and
video are detected
Yellow — Video, but no
audio detected
Red — No video detected
RF SETUP
To update firmware:
• If unit is connected to the internet and can
communicate with our servers, select Update
Firmware from the Setup screen and press "OK".
To reset IP address:
• When using DCHP , select Reset IP Address to
force a release/renew of your IP address, and
press "OK".
To restore factory defaults or
revert firmware:
1. Power down the unit.
2. Hold the left and right arrows down and
reapply power. You will be prompted with
options: PRESS
• UP to reset config
• DOWN to revert FW
• OK to boot normally
w ww.z eev ee.c om
CCIR Table vs Frequency Map
Channel
IMPORTANT NOTES
•
RF Channel numbers are applied
in pairs based on the frequency
map. For instance, if you enter RF
Channel # "21" then RF Channel
# "22" automatically populates.
•
ZV channels can be set directly
adjacent to any other well-formed
channel and will not cause
interference. No channel spacing
is required.
•
DVB-T defaults to using specific
channels and frequency bands on
the CCIR table. You can change
those settings from CCIR to None
and enter a frequency directly
using Maestro. For instance,
instead of entering RF channel
21, you could enter a frequency
such as "474 MHz."
RF
RF
RF
Band (MHz)
Band (MHz)
Channel
Channel
21
470-478
41
630-638
61
22
478-486
42
638-646
62
23
43
63
486-494
646-654
24
494-502
44
654-662
64
25
502-510
45
662-670
65
26
46
66
510-518
670-678
27
518-526
47
678-686
67
28
526-534
48
686-694
68
29
534-542
49
694-702
69
30
542-550
50
702-710
70
31
550-558
51
710-718
71
32
558-566
52
718-726
72
33
566-574
53
726-734
73
34
574-582
54
734-742
74
35
582-590
55
742-750
75
36
56
76
590-598
750-758
37
598-606
57
758-766
77
38
606-614
58
766-774
78
39
59
79
614-622
774-782
40
622-630
60
782-790
80
H D br id ge 2 50 0/ 2 6 00 -E U Co n f ig u ra t io n Gu id e
Band (MHz)
790-798
798-806
806-814
814-822
822-830
830-838
838-846
846-854
854-862
862-870
870-878
878-886
886-894
894-902
902-910
910-918
918-926
926-934
934-942
942-950
|
Pa g e 7
