- Page 1 ZvPro 800i CO NF IG URAT ION GU I DE i - S E R I E S ZvPro810i • ZvPro820i...
-
Page 2: Fcc Statement
I N S T R U C T I O N S P E R TA I N I N G T O A R I S K O F F I R E , E L E C T R I C S H O C K , O R I N J U R Y T O P E R S O N S Important Safety Instructions. -
Page 3: Table Of Contents
Warranty ..... 15 HDMI Cables Contact ZeeVee ....16 ZvP r o 800i Conf igurat ion Guide... -
Page 4: Front And Back Panels

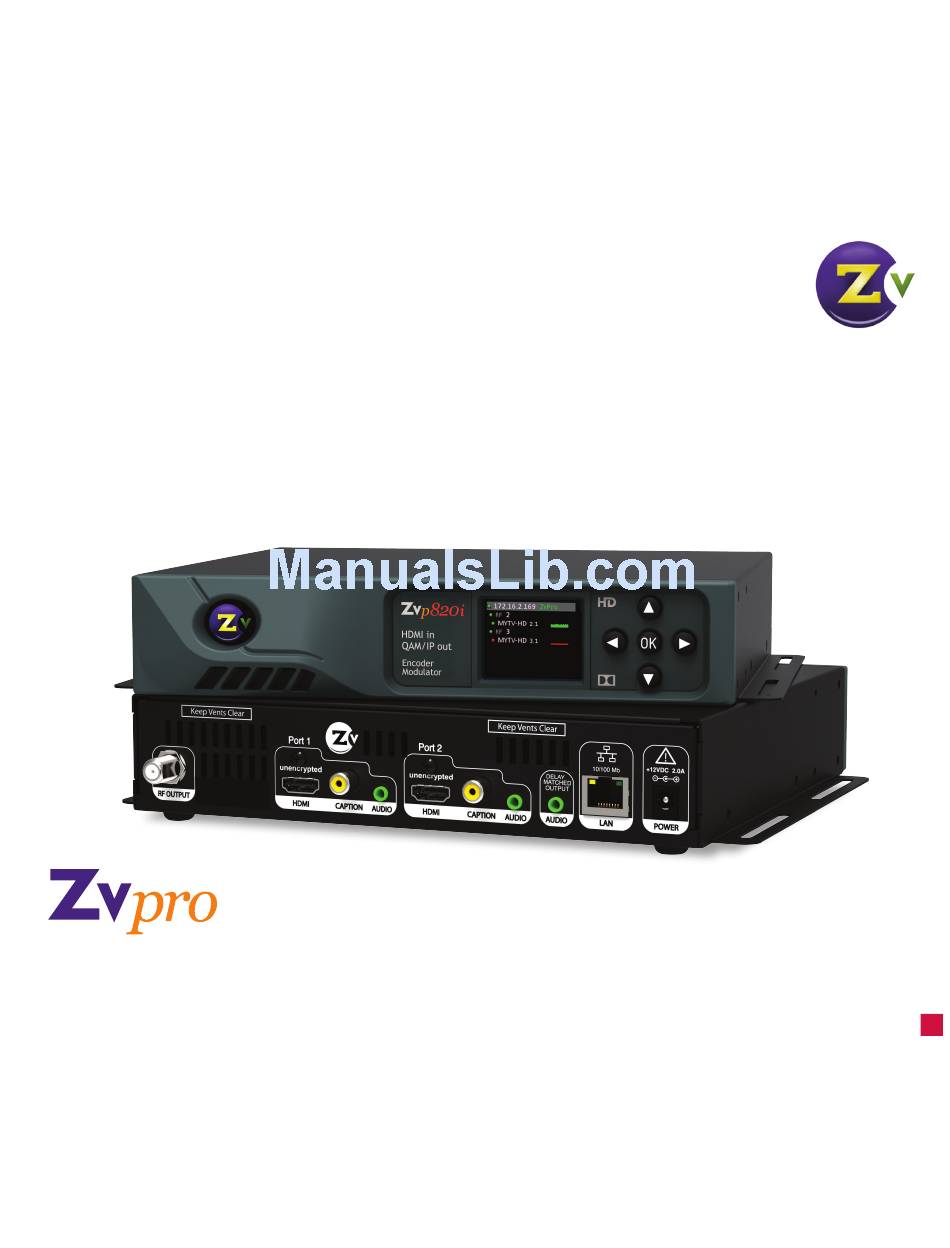

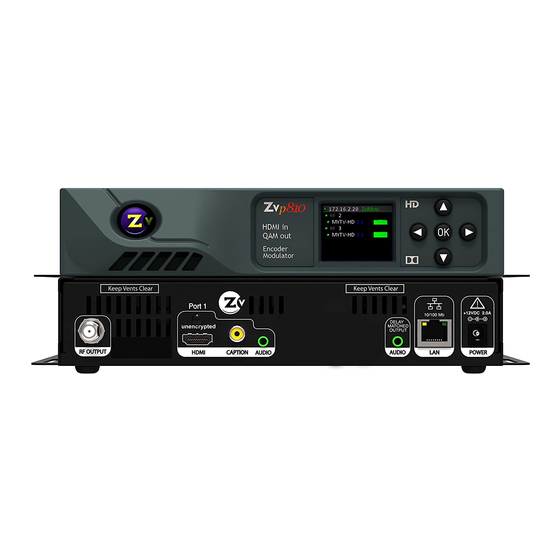

Front and Back Panels Model Number Name and description of unit Color Display 5-Way Control Navigate options on front panel display Coax Output Closed Caption: Composite Analog Audio: 3.5mm Audio Delay Matched Audio Output 10/100 LAN Port DC Power Input P a g e 4 Zv Pro 800i Co n fig ur atio n Guide w w w.z eev ee.c om... -
Page 5: Basic Rf Installation
Basic RF Installation Unencrypted Composite Analog HDMI Out Video Audio Unencrypted HDMI Video Source Video Source RF Output +25 dBm Back of Zvp820i Modulator Optional Delay Coax cable connects Matched Analog Ethernet to network or to coax network Audio Output to directly to computer audio system Factory default settings allow ZvPro 800i modulators... -
Page 6: Channels Or Power
Shows audio/video being encoded Green — Both audio and video are detected Yellow — Video, but no audio detected Red — No video detected You can set the RF broadcast channels or implement delay matched audio using the front RF power or audio delay •... -
Page 7: And Virtual Channels
numbers and virtual channels RF Ch. RF Ch. RF Ch. RF Ch. RF Ch. 54-60 240-246 420-426 600-606 780-786 60-66 246-252 426-432 606-612 786-792 the RF channels are paired and 66-72 252-258 432-438 612-618 792-798 matched with RF frequency. 76-82 258-264 438-444 618-624... -
Page 8: Connecting With Maestro
customize your system beyond what is allowed in the front 1. Click on the RF Channel Plan tab. panel. For example, using Maestro you can assign a channel label the channels. You can also set up IP streaming. connect the unit and your computer to any LAN that has a DHCP server. - Page 9 generated out its RF-port. connected at 720p60, the output stream will arrive at 720p60. The IP stream generated is an exact copy of the broadcast-grade transport stream over the RF ports. The bandwidth required To receive and display an IP stream, you must employ a decoder capable of receiving UDP video streams and rendering them to a video device --...
-
Page 10: Using Other Maestro Tabs
THE AV SOURCE TAB Allows for specifying audio and video inputs and adjusting settings such as Delayed Audio Out (for matching audio to external audio systems -- THE RF TAB Allows you to change the RF power output. Manage All allows you Group Action bar allows you to set units on your network. - Page 11 Allows you to change the device password and update THE NETWORK TAB Allows you to assign a static IP address. THE SUPPORT TAB Provides technical support contact information and allows you to send logs for troubleshooting. Zv P ro 800i C onfi gur at ion Gui de P a g e 11...
- Page 12 Unable to If unable to connect, try one of the following: Connect try disabling WIFI. If that does to Maestro not correct it, make sure your PC is not using a static IP address. The PC and the ZvPro unit must be on the same IP subnet for them to communicate.
- Page 13 Audio and video are not because the video is being encoded into a digital signal, modulated by the unit and then demodulated at the path. To work around the issue, you can try one of the following: Use an audio delay device that allows you to add a delay to the audio stream before it reaches the sound system.
-
Page 15: Warranty
All warranties implied by law, including for a particular purpose, are expressly limited to reseller. Check zeevee.com for a list of authorized distributors and a list of any expressly excluded 3833. If it is determined that the product needs to... -
Page 16: Contact Zeevee
