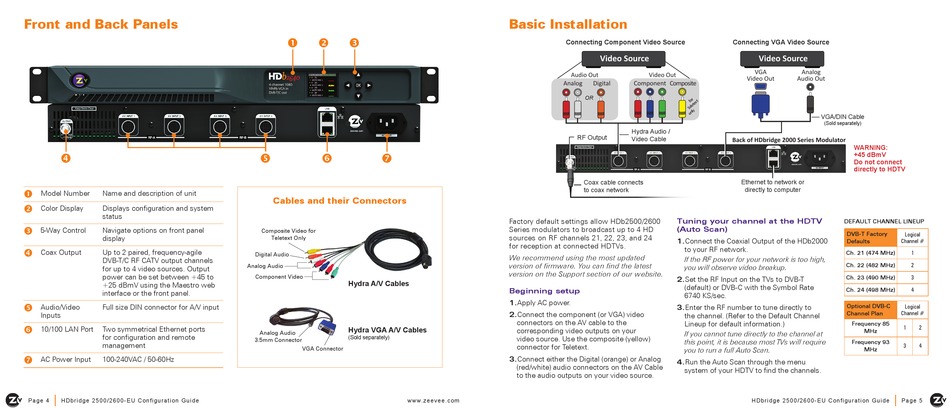

Front and Back Panels
Model Number
Name and description of unit
Color Display
Displays configuration and system
status
5-Way Control
Navigate options on front panel
display
Coax Output
Up to 2 paired, frequency-agile
DVB-T/C RF CATV output channels
for up to 4 video sources. Output
power can be set between +45 to
+25 dBmV using the Maestro web
interface or the front panel.
Audio/Video
Full size DIN connector for A/V input
Inputs
10/100 LAN Port
Two symmetrical Ethernet ports
for configuration and remote
management
AC Power Input
100-240VAC / 50-60Hz
|
Pa ge 4
H D br i dg e 25 0 0 / 2 6 0 0 -E U Co n fi g u ra tio n Gu id e
Cables and their Connectors
Composite Video for
Teletext Only
Digital Audio
Analog Audio
Component Video
Hydra A/V Cables
Hydra VGA A/V Cables
Analog Audio
(Sold separately)
3.5mm Connector
VGA Connector
w ww.z eev ee.c om
Basic Installation
Connecting Component Video Source
Video Source
Audio Out
Video Out
Analog
Digital
Component
Composite
OR
Hydra Audio /
RF Output
Video Cable
Coax cable connects
to coax network
Factory default settings allow HDb2500/2600
Tuning your channel at the HDTV
(Auto Scan)
Series modulators to broadcast up to 4 HD
sources on RF channels 21, 22, 23, and 24
1. Connect the Coaxial Output of the HDb2000
for reception at connected HDTVs.
to your RF network.
We recommend using the most updated
If the RF power for your network is too high,
version of firmware. You can find the latest
you will observe video breakup.
version on the Support section of our website.
2. Set the RF Input on the TVs to DVB-T
(default) or DVB-C with the Symbol Rate
Beginning setup
6740 KS/sec.
1. Apply AC power.
3. Enter the RF number to tune directly to
2. Connect the component (or VGA) video
the channel. (Refer to the Default Channel
connectors on the AV cable to the
Lineup for default information.)
corresponding video outputs on your
If you cannot tune directly to the channel at
video source. Use the composite (yellow)
this point, it is because most TVs will require
connector for Teletext.
you to run a full Auto Scan.
3. Connect either the Digital (orange) or Analog
4. Run the Auto Scan through the menu
(red/white) audio connectors on the AV Cable
system of your HDTV to find the channels.
to the audio outputs on your video source.
Connecting VGA Video Source
Video Source
VGA
Analog
Video Out
Audio Out
VGA/DIN Cable
(Sold separately)
Back of HDbridge 2000 Series Modulator
WARNING:
+45 dBmV
Do not connect
directly to HDTV
Ethernet to network or
directly to computer
DEFAULT CHANNEL LINEUP
DVB-T Factory
Logical
Defaults
Channel #
Ch. 21 (474 MHz)
1
Ch. 22 (482 MHz)
2
Ch. 23 (490 MHz)
3
Ch. 24 (498 MHz)
4
Optional DVB-C
Logical
Channel #
Channel Plan
Frequency 85
1
MHz
Frequency 93
3
MHz
|
H D br id ge 2 50 0/ 2 6 00 -E U Co n f ig u ra t io n Gu id e
Pa g e 5
2
4
