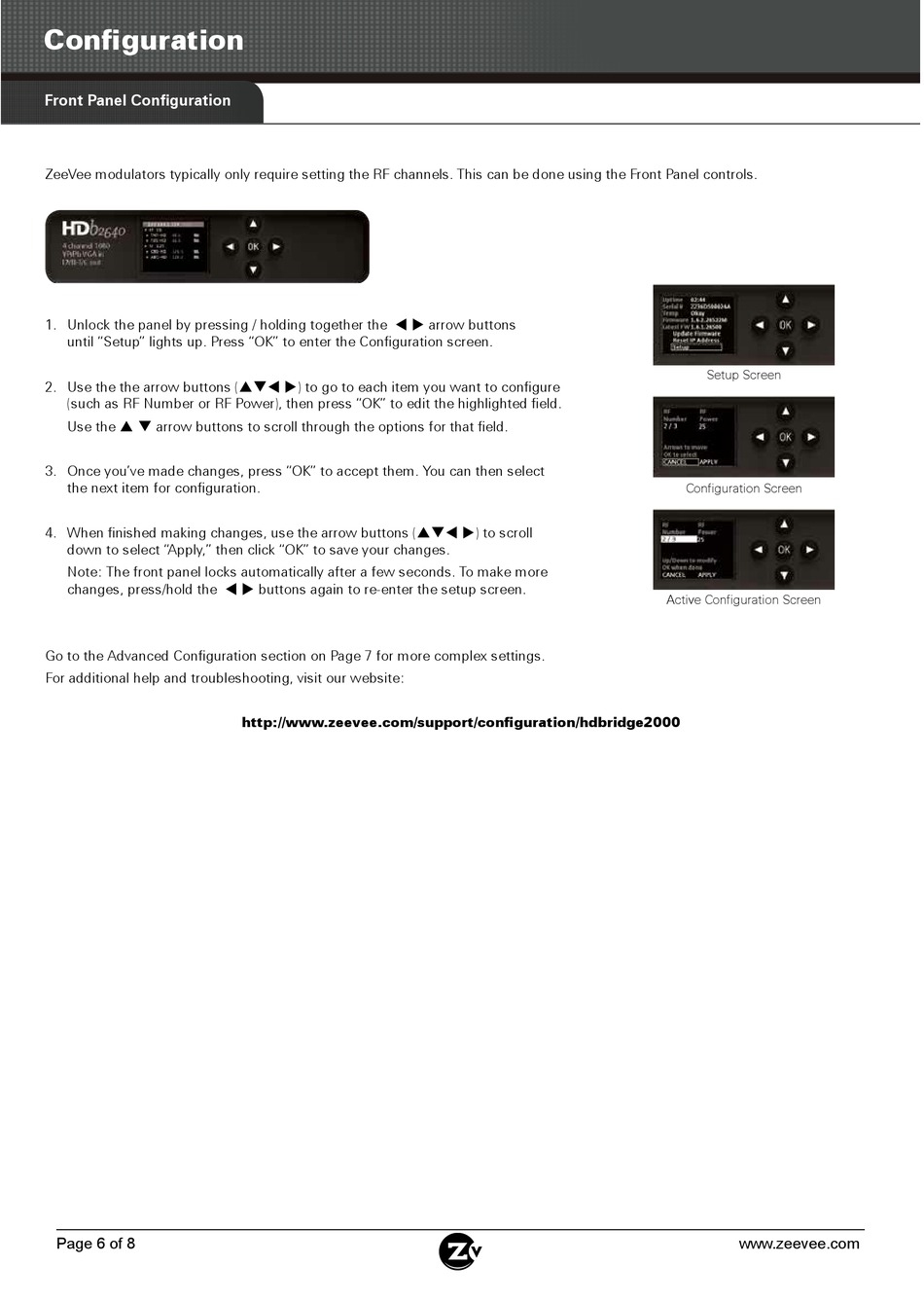

Configuration

Front Panel Configuration

ZeeVee modulators typically only require setting the RF channels. This can be done using the Front Panel controls.
1. Unlock the panel by pressing / holding together the
until "Setup" lights up. Press "OK" to enter the Configuration screen.
2. Use the the arrow buttons (
(such as RF Number or RF Power), then press "OK" to edit the highlighted field.
Use the   arrow buttons to scroll through the options for that field.
3. Once you've made changes, press "OK" to accept them. You can then select
the next item for configuration.
4. When finished making changes, use the arrow buttons (
down to select "Apply," then click "OK" to save your changes.
Note: The front panel locks automatically after a few seconds. To make more
changes, press/hold the
Go to the Advanced Configuration section on Page 7 for more complex settings.
For additional help and troubleshooting, visit our website:
Page 6 of 8
 
  ) to go to each item you want to configure
 
buttons again to re-enter the setup screen.
http://www.zeevee.com/support/configuration/hdbridge2000
arrow buttons
  ) to scroll
Setup Screen
Configuration Screen
Active Configuration Screen
