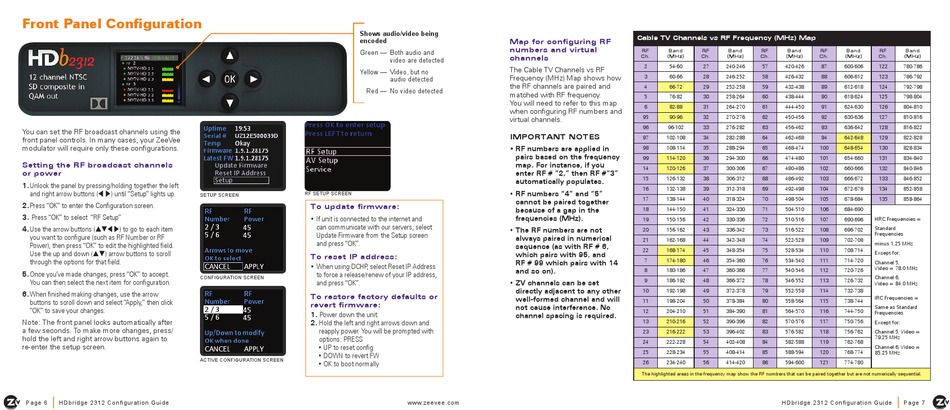

Front Panel Configuration

You can set the RF broadcast channels using the
front panel controls. In many cases, your ZeeVee
modulator will require only these configurations.
Setting the RF broadcast channels
or power
1. Unlock the panel by pressing/holding together the left
and right arrow buttons ( ) until "Setup" lights up.
SETUP SCREEN
2. Press "OK" to enter the Configuration screen.
3. Press "OK" to select "RF Setup"
4. Use the arrow buttons ( ) to go to each item
you want to configure (such as RF Number or RF
Power), then press "OK" to edit the highlighted field.
Use the up and down () arrow buttons to scroll
through the options for that field.
5. Once you've made changes, press "OK" to accept.
CONFIGURATION SCREEN
You can then select the next item for configuration.
6. When finished making changes, use the arrow
buttons to scroll down and select "Apply," then click
"OK" to save your changes.
Note: The front panel locks automatically after
a few seconds. To make more changes, press/
hold the left and right arrow buttons again to
re-enter the setup screen.
ACTIVE CONFIGURATION SCREEN
|
Pa ge 6 H D br i dg e 23 1 2 Co n fi g u ra tio n Gu id e
Shows audio/video being
encoded
Green — Both audio and
video are detected
Yellow — Video, but no
audio detected
Red — No video detected
RF SETUP SCREEN
To update firmware:
• If unit is connected to the internet and
can communicate with our servers, select
Update Firmware from the Setup screen
and press "OK".
To reset IP address:
• When using DCHP , select Reset IP Address
to force a release/renew of your IP address,
and press "OK".
To restore factory defaults or
revert firmware:
1. Power down the unit.
2. Hold the left and right arrows down and
reapply power. You will be prompted with
options: PRESS
• UP to reset config
• DOWN to revert FW
• OK to boot normally
w ww.z eev ee.c om

Cable TV Channels vs RF Frequency (MHz) Map

Map for configuring RF
numbers and virtual
RF Band
channels Ch. (MHz)
2 54-60
The Cable TV Channels vs RF
Frequency (MHz) Map shows how 3 60-66
the RF channels are paired and
4 66-72
matched with RF frequency.
5 76-82
You will need to refer to this map
6 82-88
when configuring RF numbers and
95 90-96
virtual channels.
96 96-102
IMPORTANT NOTES
97 102-108
• RF numbers are applied in
98 108-114
pairs based on the frequency
99 114-120
map. For instance, if you
14 120-126
enter RF # "2," then RF #"3"
15 126-132
automatically populates.
16 132-138
• RF numbers "4" and "5"
17 138-144
cannot be paired together
because of a gap in the
18 144-150
frequencies (MHz).
19 150-156
• The RF numbers are not
20 156-162
always paired in numerical
21 162-168
sequence (as with RF # 6,
22 168-174
which pairs with 95, and
7 174-180
RF # 99 which pairs with 14
and so on).
8 180-186
9 186-192
• ZV channels can be set
directly adjacent to any other
10 192-198
well-formed channel and will
11 198-204
not cause interference. No
12 204-210
channel spacing is required.
13 210-216
23 216-222
24 222-228
25 228-234
26 234-240
The highlighted areas in the frequency map show the RF numbers that can be paired together but are not numerically sequential.
RF Band RF Band RF Band RF
Ch. (MHz) Ch. (MHz) Ch. (MHz) Ch.
27 240-246 57 420-426 87 600-606 122
28 246-252 58 426-432 88 606-612 123
29 252-258 59 432-438 89 612-618 124
30 258-264 60 438-444 90 618-624 125
31 264-270 61 444-450 91 624-630 126
32 270-276 62 450-456 92 630-636 127
33 276-282 63 456-462 93 636-642 128
34 282-288 64 462-468 94 642-648 129
35 288-294 65 468-474 100 648-654 130
36 294-300 66 474-480 101 654-660 131
37 300-306 67 480-486 102 660-666 132
38 306-312 68 486-492 103 666-672 133
39 312-318 69 492-498 104 672-678 134
40 318-324 70 498-504 105 678-684 135
41 324-330 71 504-510 106 684-690
HRC Frequencies =
42 330-336 72 510-516 107 690-696
Standard
43 336-342 73 516-522 108 696-702
Frequencies
44 342-348 74 522-528 109 702-708
minus 1.25 MHz
45 348-354 75 528-534 110 708-714
Except for:
46 354-360 76 534-540 111 714-720
Channel 5,
Video = 78.0 MHz
47 360-366 77 540-546 112 720-726
Channel 6,
48 366-372 78 546-552 113 726-732
Video = 84.0 MHz
49 372-378 79 552-558 114 732-738
IRC Frequencies =
50 378-384 80 558-564 115 738-744
Same as Standard
51 384-390 81 564-570 116 744-750
Frequencies
52 390-396 82 570-576 117 750-756
Except for:
53 396-402 83 576-582 118 756-762 Channel 5, Video =
79.25 MHz
54 402-408 84 582-588 119 762-768
Channel 6, Video =
55 408-414 85 588-594 120 768-774 85.25 MHz
56 414-420 86 594-600 121 774-780
H D bri d ge 2 31 2 Co n f ig u ra t io n Gu id e
Band
(MHz)
780-786
786-792
792-798
798-804
804-810
810-816
816-822
822-828
828-834
834-840
840-846
846-852
852-858
858-864
|
