Summary of Contents for Teltonika TAT140

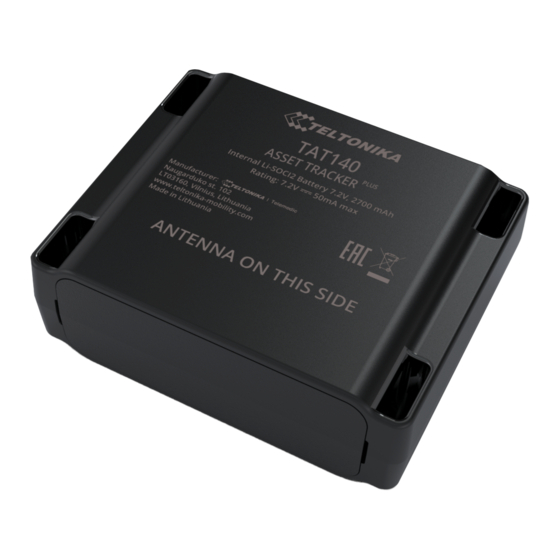

- Page 1 TAT140 Asset Tracker PLUS LTE Quick Manual v1.1...
-
Page 2: Table Of Contents
How to install USB drivers (Windows) ................................5 Configuration........................................6 Quick SMS configuration ....................................8 MOUNTING RECOMMENDATIONS................................. 10 LED indications ......................................... 11 Basic characteristics ......................................11 Safety information ......................................13 Certification and Approvals .................................... 14 Warranty ........................................... 15 Warranty disclaimer ....................................... 15 Quick Manual v1.1 // TAT140 Telematics... -
Page 3: Know Your Device
KNOW YOUR DEVICE ON/OFF MICRO-USB BATTERY BUTTON MICRO-SIM SLOT Quick Manual v1.1 // TAT140 Telematics... -
Page 4: Set Up Your Device
Teltonika Configurator Page 5, “PC Connection Make sure that Micro- (Windows)” SIM card cut-off corner is pointing forward to slot. wiki.teltonika.lt/index. php?title=TAT140_Security_info wiki.teltonika.lt/view/Teltonika_ Configurator Quick Manual v1.1 // TAT140 Telematics... -
Page 5: Pc Connection (Windows)
PC CONNECTION (WINDOWS) Power-up TAT140 device. LED should start blinking, see ‘’LED indications’’ Connect your device to computer using Micro-USB cable: • You will need to install USB drivers, see ‘’How to install USB Drivers (WINDOWS)“ You are now ready to use the device on your computer. -
Page 6: Configuration
CONFIGURATION At first TAT140 device will have default factory settings set. These settings should be changed according to the users needs. Main configuration can be performed via Teltonika Configurator software. Get the latest Configurator version from here . Configurator operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed. - Page 7 Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about TAT140 configuration using Configurator can be found in our Wiki wiki.teltonika-gps.com/view/TAT140_Status_info wiki.teltonika-gps.com/view/TAT140_Status_info#GNSS_Info wiki.teltonika-gps.com/view/TAT140_Status_info#GSM_Info wiki.teltonika-gps.com/view/TAT140_Status_info#I.2FO_Info wiki.teltonika-gps.com/view/TAT140_Status_info#Maintenance...
-
Page 8: Quick Sms Configuration
2003 – APN password (if there are no APN password, empty field should be left) SERVER SETTINGS: 2004 – Domain 2005 – Port 2006 – Data sending protocol (0 – TCP, 1 – UDP) Quick Manual v1.1 // TAT140 Telematics... - Page 9 Save configuration to the device by clicking on a Save to device button; • Initiate connection by pressing the Test Connection button. At this point, TAT140 will create one high-priority record and initiate connection to the server immediately. If connection was not initiated, it can mean any of the following: •...
-
Page 10: Mounting Recommendations
MOUNTING RECOMMENDATIONS We recommend mounting the TAT140 in such a way that the GNSS antenna is pointed at the sky and the device itself is not covered by various obstructions that would interfere with the reception of the GNSS fix. -
Page 11: Led Indications
LTE Cat 1/GSM/GPRS/GNSS/ Technology Bluetooth Bluetooth GNSS Specification Bluetooth 4.2 + LE GNSS GPS, GLONASS, GALILEO, BEIDOU ELA Temperature, Humidity, Supported Movement and Magnet sensors, Receiver 33 channel peripherals EYE sensor, Universal BLE sensor support Quick Manual v1.1 // TAT140 Telematics... - Page 12 128 MB internal flash memory Operating Environment Operating -20 °C to +60 °C temperature Ingress Protection IP68 Rating Battery discharge -55 °C to +60 °C temperature Battery storage Recommended max. 30°C temperature Features Sensors Accelerometer Quick Manual v1.1 // TAT140 Telematics...
-
Page 13: Safety Information
SAFETY INFORMATION This message contains information on how to operate TAT140 safely. By following these requirements and recommendations, you will avoid dangerous situations. Please read these instructions carefully and follow them strictly before operating the device! INTERFERENCE OPERATE THE DEVICE IN SUITABLE CONDITIONS... -
Page 14: Certification And Approvals
Full User‘s Manual version can be found in mixed with general household waste. Wiki 1 wiki.teltonika-gps.com/index.php?title=TAT140 CHECK ALL CERTIFICATES All newest certificates may be found in our Wiki wiki.teltonika-gps.com/view/TAT140_Certification_%26_Approvals Quick Manual v1.1 // TAT140 Telematics... -
Page 15: Warranty
Warranty does not apply to any consequential damages. • Warranty is not applicable for supplementary product equipment (i. e. PSU, power cables, antennas) unless the accessory is defective on arrival. More information can be found at teltonika-gps.com/warranty-repair Quick Manual v1.1 // TAT140 Telematics...
