Summary of Contents for HIKVISION DS-MP7508 Series
- Page 1 Mobile Digital Video Recorder User Manual UD02710B...
- Page 2 COPYRIGHT ©2015 Hangzhou Hikvision Digital Technology Co., Ltd. ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means,...
- Page 3 User Manual of Mobile Digital Video Recorder Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 4 User Manual of Mobile Digital Video Recorder (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le pré sent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence. L'exploitation est autorisé...
- Page 5 User Manual of Mobile Digital Video Recorder Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
- Page 6 Series Models DS-MP7508 DS-MP7508/GW DS-MP7508 Series DS-MP7508/GW/WI DS-MP7508/GLF/WI This manual may contain several technically incorrect places or printing errors, and the content is subject to change without notice. The updates will be added into the new version of this manual.
- Page 7 User Manual of Mobile Digital Video Recorder Safety Instructions Read, keep and follow these instructions. Professional automobile assembly manufacturers or automakers are required for the system installation. And place the device at a well-ventilated position inside the automobile. ...
-
Page 8: Product Key Features
User Manual of Mobile Digital Video Recorder Product Key Features General User-friendly GUI providing easy and flexible operations. Each channel supports up to 1080p resolution with high-efficient and flexible H.264 encoding technology. are connectable. HDDs/SSDs Hard disk box with fan and USB interface supporting intelligent temperature control and data export. ... - Page 9 User Manual of Mobile Digital Video Recorder Alarm and Exception Management of alarm input/output. Management of video loss alarm, motion detection alarm, video tampering alarm. Configurable arming schedule of alarm input/output. Alarm for video loss, motion detection, video tampering, video signal exception, video input/output standard mismatch, illegal login, network disconnected, IP confliction, hard disk error, and hard disk full.
-
Page 10: Table Of Contents
User Manual of Mobile Digital Video Recorder TABLE OF CONTENTS Product Key Features .............................. 7 Chapter 1 Introduction ............................11 Front Panel ..............................11 Rear Panel ..............................11 IR Remote Control Introduction ........................ 12 1.3.1 Buttons Description .......................... 12 1.3.2 Operation Introduction ........................ - Page 11 User Manual of Mobile Digital Video Recorder PTZ Control Panel ............................. 40 Chapter 7 Wireless Network Settings ....................... 42 Dialing Settings ............................42 Wi-Fi Settings ............................43 Chapter 8 Storage ............................... 46 Chapter 9 Platform Settings ..........................47 Chapter 10 Mobile Specified Functions......................48 10.1 Configuring Startup and Shutdown ......................
-
Page 12: Chapter 1 Introduction

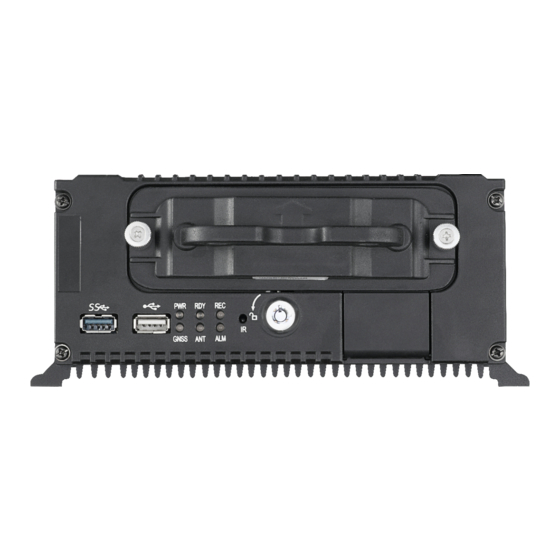

User Manual of Mobile Digital Video Recorder Chapter 1 Introduction 1.1 Front Panel The front panel of DS-MP7508 series is displayed below: Figure 1. 1 Front Panel Table 1. 1 Description of Front Panel Name Description Hard disk box Insert two 2.5-inch SATA HDDs/SSDs for data storage. -
Page 13: Ir Remote Control Introduction
User Manual of Mobile Digital Video Recorder Figure 1. 2 Rear Panel Table 1. 2 Description of Rear Panel Name Description WIFI WiFi antenna interface CAN interface RS-232 RS-232 interface EXT.DEV RS-422 communication interface, two-way audio interface, and CVBS video output. 4-ch alarm inputs, 4-ch sensor in;... - Page 14 User Manual of Mobile Digital Video Recorder The interface of IR remote control is shown in Figure 1. 3. Batteries (2× AAA) must be installed before operation. Figure 1. 3 Remote Control Table 1. 3 Description of the IR Remote Control Buttons Name Description Power...
-
Page 15: Operation Introduction
User Manual of Mobile Digital Video Recorder Up, Down, Left, Right 1. The DIRECTION buttons are used to navigate between different fields and items in menus. DIRECTION Buttons 2. In the playback interface, they are used for fast forward, slow forward, rewind. -
Page 16: Starting Up And Shutting Down The Device
User Manual of Mobile Digital Video Recorder receiver in the front panel. If there is no response after you press any button on the remote, follow the procedure below to troubleshoot. Steps: Enter Menu > Other Settings > Display > Advanced Settings by operating the mouse. Check and remember device ID#. - Page 17 User Manual of Mobile Digital Video Recorder Positive Pole Ignition Switch Figure 1. 4 Connection of Positive Pole Ignition Switch Ignition switch is connected to the positive pole of DC+12/24V of vehicle batteries. Please make sure that the connection is correct, and then perform the following steps: Steps: Connect the “DC IN +”...
-
Page 18: Timing On/Off
1.5.1 Alarm Input Connection DS-MP7508 series mobile DVR adopts the high/low-level electrical signals triggering (high level: 6 to 36 VDC; low level: 0 to 5 VDC) to realize alarm input. And in order to avoid error report caused by voltage fluctuation, no alarm will be triggered by voltage ranging of 5 to 6 VDC. -
Page 19: Alarm Output Connection
User Manual of Mobile Digital Video Recorder 1.5.2 Alarm Output Connection An alarm device with power supply is needed. The alarm output interfaces A1 and B1 of the mobile DVR is disconnected normally. When an alarm output is triggered, the interface of corresponding A1 and B1will be connected. Figure 1. - Page 20 User Manual of Mobile Digital Video Recorder Unfasten the two screws in hard disk box anticlockwise with the screwdriver and pull out the hard disk box. Figure 1. 10 Pull Out Hard Disk Box Figure 1. 11 Hard Disk Box Fully place the first HDD/SSD into the hard disk box, with the PCB facing downward and HDD/SSD SATA and power interface facing the SATA and power interface of hard disk box.
-
Page 21: Sd Card Installation
User Manual of Mobile Digital Video Recorder Figure 1. 13 Tighten Screws Repeat the step 4 to 6 to install another HDD/SSD. Insert the hard disk box back to the mobile DVR and tighten the screws in hard disk box. 1.7 SD Card Installation Purpose: SD card with capacity up to 128 G can be installed. -
Page 22: Sim Card Installation
User Manual of Mobile Digital Video Recorder Figure 1. 15 Insert SD Card Close the SD card slot cover, plug in the hard disk box, and fasten the two screws in hard disk box clockwise. 1.8 SIM Card Installation Purpose: Pluggable 3G/4G wireless communication module is designed for the mobile DVR and you should install the SIM card to realize the wireless communication function. - Page 23 User Manual of Mobile Digital Video Recorder Figure 1. 17 3G/4G Module Place the SIM card in the SIM card base correctly. Figure 1. 18 SIM Card Base Plug the SIM card base installed with the SIM card back to the 3G/4G module. Install the 3G/4G module component back to the mobile DVR, and tighten the set screw.
-
Page 24: Chapter 2 Basic Operations
User Manual of Mobile Digital Video Recorder Chapter 2 Basic Operations 2.1 Setting Admin Password Purpose: For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation. Steps: 1. Input the same password in the text field of New Password and Confirm. Figure 2. -
Page 25: User Management
User Manual of Mobile Digital Video Recorder Figure 2. 2 Main Page 2.3 User Management The admin user has all the operation permissions of the device. Steps: Enter the User Management interface. Menu > Other Settings > User Figure 2. 3 User Management Click the Add button to enter the Add User interface. -
Page 26: Display Settings
User Manual of Mobile Digital Video Recorder STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product. - Page 27 User Manual of Mobile Digital Video Recorder Figure 2. 6 DST Settings Click the Set button of Advanced Settings, and you can configure the advanced parameters for display. Device Name: Enter the system name as desired in the text field. ...
-
Page 28: Camera Settings
User Manual of Mobile Digital Video Recorder 2.5 Camera Settings Purpose: You can configure the camera name, OSD (On Screen Display) settings, etc. The settings of OSD, standing for On Screen Display, include the display of camera name, date and week and the corresponding position information. - Page 29 User Manual of Mobile Digital Video Recorder Click the Set button of Image Settings to enter the Image Settings interface. Select the parameter item, press Enter key on the remote control, and use the Direction keys to adjust the value of the selected item. You can click Default to restore the default video parameters.
-
Page 30: Preview Settings
User Manual of Mobile Digital Video Recorder 2.6 Preview Settings Purpose: You can configure the dwell time of live view window, set the camera order, enable/disable the audio preview, etc. Steps: Enter the Preview Settings interface. Menu > Other Settings > Preview Figure 2. - Page 31 User Manual of Mobile Digital Video Recorder Figure 2. 12 Camera Order Click the Apply button to save the new settings and click OK to exit.
-
Page 32: Chapter 3 Record Settings
User Manual of Mobile Digital Video Recorder Chapter 3 Record Settings 3.1 Configuring Encoding Parameters 3.1.1 Formatting Storage Device Before you start: Install at least one HDD/SSD or SD card on the mobile DVR for video data storage. Steps: Enter the storage management interface. Menu >... - Page 33 User Manual of Mobile Digital Video Recorder Figure 3. 2 Record Settings Select the camera from the drop-down list. Configure the following settings: Encoding Parameters Main Stream (Normal): used for schedule recording; Main Stream (Event): used for event recording; Sub-Stream: used for network transmission.
-
Page 34: Configuring Motion Detection Record
User Manual of Mobile Digital Video Recorder 5 recording types are selectable: Normal, Motion Detection, Alarm, Motion | Alarm and Motion & Alarm. Up to 8 time periods can be set for each day and each of the time periods cannot be overlapped. Figure 3. - Page 35 User Manual of Mobile Digital Video Recorder Click the Area Settings button to set the area for motion detection. Perform the following steps to set a specified area for motion detection: Press the Edit key on the remote control and a red block appears on the screen. Press the Direction keys on the remote control to adjust the position of the red block.
-
Page 36: Configuring Alarm Triggered Record
User Manual of Mobile Digital Video Recorder 3.3 Configuring Alarm Triggered Record Purpose: Follow the procedure to configure alarm triggered recording. Steps: Enter the Alarm Input settings interface. Menu > Other Settings > Alarm In Figure 3. 6 Alarm Input Settings Click the Set button of Trigger Record Channel to select the alarm triggered recording channel(s). -
Page 37: Chapter 4 Playback
User Manual of Mobile Digital Video Recorder Chapter 4 Playback 4.1 Playing Back General Video Purpose: General video includes normal, motion detection, alarm, motion and alarm, and motion or alarm video. 4.1.1 Playback by Camera and Time Steps: Enter Video Search interface. Menu >... -
Page 38: Playback By Video
User Manual of Mobile Digital Video Recorder Table 4. 1 Playback Control Panel Description Button Description Mute/Audio on Start/End clipping. 4.1.2 Playback by Video Steps: Enter Video Search interface. Menu > Video Search Figure 4. 3 Video Search Select Search Mode as General. Specify Camera, Video Type, Start Time, and End Time to search. -
Page 39: Playing Back Event Video
User Manual of Mobile Digital Video Recorder Click to select a video and click Play to start playback the video. 4.2 Playing Back Event Video Purpose: Five event types are provided, including alarm input, manual alarm, speeding alarm, G-sensor event, and sensor-in event. For the five events, when an event happens, all the cameras whose normal recording enabled will be triggered to record the event video. -
Page 40: Chapter 5 Video Backup
User Manual of Mobile Digital Video Recorder Chapter 5 Video Backup Purpose: You can back up the general videos. Steps: Enter the Video Search interface. Menu > Video Search Figure 5. 1 Video Search Interface Select the Search Mode as General. Select the Camera and Video Type, and specify the Start Time and End Time for search. -
Page 41: Chapter 6 Ptz Controls
User Manual of Mobile Digital Video Recorder Chapter 6 PTZ Controls 6.1 Configuring PTZ Settings Purpose: Follow the procedure to set the parameters for PTZ. The configuring of the PTZ parameters should be done before you control the PTZ camera. Before you start: Connect the RS-485 cables of PTZ camera to device EXT.DEV interface. - Page 42 User Manual of Mobile Digital Video Recorder Table 6. 1 Description of PTZ Control Panel Icon Description Icon Description Icon Description Direction button and Zoom+, Focus+, Zoom-, Focus-, Iris- the auto-cycle button Iris+ Moving speed Light on/off Wiper on/off 3D-Zoom Image Centralization...
-
Page 43: Chapter 7 Wireless Network Settings
User Manual of Mobile Digital Video Recorder Chapter 7 Wireless Network Settings 7.1 Dialing Settings Before you start: Install a 3G/4G SIM card on the device. Dialing function is only supported by DS-MP7508/GW, DS-MP7508/GW/WI, and DS-MP7508/GLF/WI series. Steps: Enter the 3G/4G Dialing Settings interface. Menu >... -
Page 44: Wi-Fi Settings
User Manual of Mobile Digital Video Recorder Figure 7. 2 Private Network Settings Click OK and reboot the device to activate the new settings. You can view the dialing status on the Dialing Status interface (Menu > Status > Dial). 7.2 Wi-Fi Settings Purpose: You can connect the device to the Wi-Fi networks and transmit the data via the Wi-Fi. - Page 45 User Manual of Mobile Digital Video Recorder Figure 7. 4 IP & DNS Settings for Wi-Fi Check the checkbox of DHCP and Auto-Obtain DNS to obtain IP address and DNS server for Wi-Fi network automatically. Click the Set button of WiFi AP, and you can configure the settings of Wi-Fi access point. ...
- Page 46 User Manual of Mobile Digital Video Recorder Figure 7. 6 Wi-Fi Status Interface...
-
Page 47: Chapter 8 Storage
User Manual of Mobile Digital Video Recorder Chapter 8 Storage Steps: Enter Storage management interface. Menu > Storage ● To keep writing data into storage device even when it is full, you can select Overwrite as Yes to enable overwrite function for all storage device, or select it as No to disable it. -
Page 48: Chapter 9 Platform Settings
User Manual of Mobile Digital Video Recorder Chapter 9 Platform Settings Purpose: The Mobile DVR can be remotely accessed via iVMS platform. Make sure the parameters configured are valid for the platform you select for login. Steps: Enter the Platform Settings interface. Menu >... -
Page 49: Chapter 10 Mobile Specified Functions
User Manual of Mobile Digital Video Recorder Chapter 10 Mobile Specified Functions 10.1 Configuring Startup and Shutdown Purpose: You can set the shutdown delay time (Vehicle Ignition Startup and Shutdown) or specify the startup/shutdown time (Timing On/Off) for the mobile DVR. ... -
Page 50: Configuring Satellite Positioning
User Manual of Mobile Digital Video Recorder Two periods can be configured for each day. And the time periods can’t be overlapped each other. Figure 10. 2 Start Control-Auto Working 10.2 Configuring Satellite Positioning Purpose: The built-in GNSS module supports GPS (Global Positioning System), contributing to the device positioning and speed limit alarm. -
Page 51: Configuring G-Sensor Alarm
User Manual of Mobile Digital Video Recorder Click the Set button of Display Channel, check the checkboxes of display channels, and click OK to go back to upper menu. Then the device positioning information will be displayed on the selected channels. Click OK to save the new settings and exit. - Page 52 User Manual of Mobile Digital Video Recorder Steps: Enter the Sensor-In Settings interface. Menu > Basic Settings > Sensor-In Figure 10. 5 Sensor-In Settings Select the Sensor-in Behavior to configure. Sensor-In is triggered by high or low level. Select the Triggering Level in dropdown list. You can select the Full Screen Monitoring channel when sensor-in behavior is triggered.
-
Page 53: Chapter 11 Other Functions
User Manual of Mobile Digital Video Recorder Chapter 11 Other Functions 11.1 Local Network Settings Steps: Enter the Local Network Settings interface. Menu > Basic Settings > Network Figure 11. 1 Local Network Settings Enter the device IP Address, Subnet Mask, Default Gateway, DNS Server address and Downloading Server IP in the corresponding text fields. -
Page 54: Alarm Settings
User Manual of Mobile Digital Video Recorder Figure 11. 2 NTP Settings Click Apply to save the new settings and click OK to exit. 11.2 Alarm Settings 11.2.1 Configuring Alarm Input Purpose: Configure the settings for alarm input, including trigger level, arming schedule, alarm linkage actions, etc. Steps: Enter the Alarm Input Settings interface. -
Page 55: Configuring Alarm Output
User Manual of Mobile Digital Video Recorder to 6 VDC. Click the Set button of Trigger Record Channel to select the alarm triggered recording channel(s). The selected channel(s) will start recording when a connected alarm input occurs. Click the Set button of arming Schedule to set the arming schedule for alarm inputs. Up to 8 time periods can be set within each day. -
Page 56: Configuring Video-Tampering Alarm
User Manual of Mobile Digital Video Recorder Enter the Alarm Output Settings interface. Menu > Other Settings > Alarm Out Figure 11. 6 Alarm Output Settings Select the Alarm Output No., input the Alarm Name as desired in the text field, and then set the alarm Dwell Time. Two alarm outputs are available: A1 &... - Page 57 User Manual of Mobile Digital Video Recorder Figure 11. 8 Tamper-Proof Settings Check the checkbox of Video-Tampering to enable the video-tampering detection function. Click the Area Settings button to set the area for video tampering detection. The video tampering alarm can be triggered only when the view of the camera is fully covered. The regional video tampering alarm function is reserved.
-
Page 58: Configuring Video Loss Alarm
User Manual of Mobile Digital Video Recorder Figure 11. 9 Linkage Action of Tamper-proof Click Apply to save the new settings and click OK to exit. 11.2.4 Configuring Video Loss Alarm Purpose: When the device cannot receive video signal from the front-end devices, the video loss alarm will be triggered. Linkage actions including audible warning, alarm output, etc., can be set to handle it. -
Page 59: Handling Exceptions
User Manual of Mobile Digital Video Recorder Figure 11. 11 Linkage Action of Video Loss Click Apply to save the new settings and click OK to exit. 11.2.5 Handling Exceptions Purpose: Exception Settings refer to the handling methods of various exceptions, e.g. ... -
Page 60: Configuring Alarm Terminal
User Manual of Mobile Digital Video Recorder 11.2.6 Configuring Alarm Terminal Steps: Enter the Alarm Terminal interface. Menu > Other Settings > Alarm Terminal Figure 11. 13 Alarm Terminal Check the checkbox of Enable Alarm Terminal to enable the alarm terminal settings. Edit the Terminal Name if needed. - Page 61 User Manual of Mobile Digital Video Recorder Figure 11. 14 Firewall Settings Optionally, you can select Enable SSH Service, thus to effectively prevent information leakage during remote management. Click the Add button to enter the Add IP Address dialog box, input the trusted IP address, and click OK. Figure 11.
-
Page 62: Serial Port Settings
User Manual of Mobile Digital Video Recorder 11.4 Serial Port Settings Purpose: Two types of serial ports are provided: RS-232 and RS-485. The RS-232 port can be used in two ways: Console: Connect a PC to the DVR through the PC serial port. DVR parameters can be configured by using software such as HyperTerminal. -
Page 63: Chapter 12 Device Maintenance
User Manual of Mobile Digital Video Recorder Chapter 12 Device Maintenance 12.1 Checking Status The status of recording, dialing, platform, satellite positioning, G-Sensor, alarm, and WiFi can be checked in the Status interface (Menu > Status). Figure 12. 1 Status Interface 12.2 Management and Maintenance 12.2.1 Upgrading the System Purpose:... - Page 64 User Manual of Mobile Digital Video Recorder Figure 12. 2 Upgrade Interface Click Refresh to refresh the latest information of the connected USB device. Click Upgrade to start upgrading and reboot the device to activate the new settings. Upgrading by remote FTP server Before you start: Ensure the network connection of the PC (running FTP server) and the DVR is valid and correct.
-
Page 65: Searching & Exporting Log Files
User Manual of Mobile Digital Video Recorder 12.2.2 Searching & Exporting Log files Purpose: The operation, alarm, exception and information of the device can be stored in log files, which can be viewed and exported at any time. Steps: Enter the Log Search interface. Menu >... -
Page 66: Restoring Default Settings
User Manual of Mobile Digital Video Recorder Select the log item, and then click Play to play the related record files (If there is any record file related). Connect the USB device to the mobile DVR, and then click Export to export the log file to the USB device for backup. ... -
Page 67: Viewing System Information
User Manual of Mobile Digital Video Recorder Figure 12. 7 Import/Export Configuration Files Click the Export button to export configuration files to the USB device. To import the configuration file, connect a USB device on which the configuration file is stored to the mobile DVR, and then click the Import button. -
Page 68: Rebooting Dvr
User Manual of Mobile Digital Video Recorder backup device if needed. Steps: Enter the Backup Device interface. Menu > Maintenance > Storage Figure 12. 9 Backup Device Interface Select the backup device from the drop-down list. You can view the status and the free space/capacity of the backup device. -
Page 69: Chapter 13 Appendix
Chapter 13 Appendix 13.1 Glossary 3G/4G: 3G/4G refers to the 3rd/4th-generation telecommunication technology which is the high speed transmission of the cell data. The 3G/4G service can transmit sound and other data simultaneously and the bitrate is up to hundreds kbps. -
Page 70: Faq
User Manual of Mobile Digital Video Recorder 13.2 FAQ • Why does my DVR make a beeping sound after booting? The possible reasons for the warning beep on the device are as follows: There is no hard disk installed in the device. The hard disk is not initialized. - Page 71 User Manual of Mobile Digital Video Recorder , and check: a) The batteries are installed correctly, making sure that the polarities of the batteries are not reversed. b) The batteries are fresh and are not out of power. c) The remote sensor is not covered or blocked by other object. d) There are no fluorescent lamps in use nearby.
