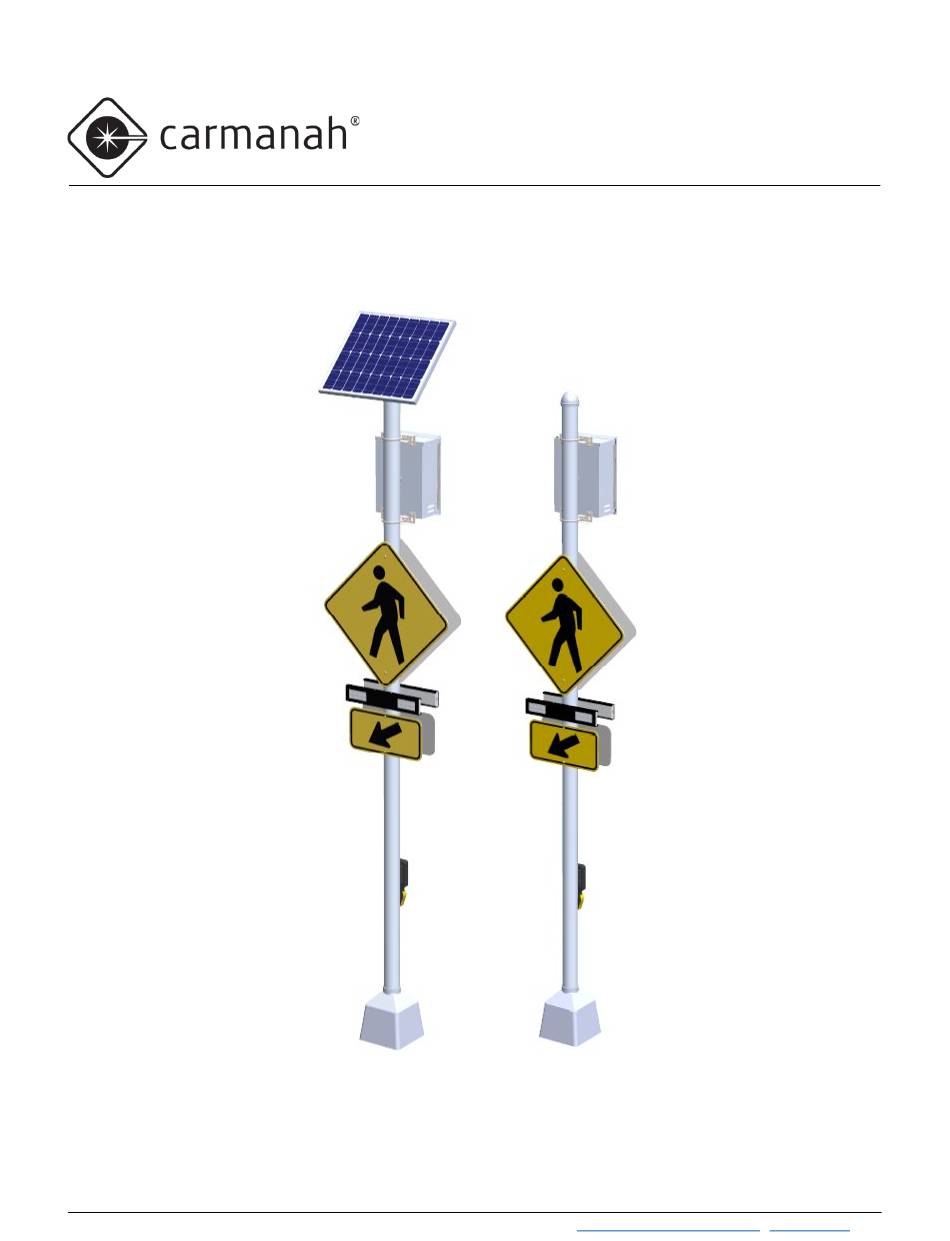

- Page 1 G Series SOLAR TO AC RETROFIT GUIDE For all solar-powered G Series systems 89322_RETROFIT_GUIDE_SOLAR_TO_AC_G_SERIES_REVB Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 2: Table Of Contents
Safety and Usage Precautions ........................3 2.0 Solar to AC Retrofit Kit ............................5 3.0 Installation Procedure ............................5 Removing Solar Components ........................6 Installing AC Backplane ..........................7 Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 3: Warnings And Precautions
NOTE suggests optimal conditions and provides additional information. Warranty Disclaimer This guide will familiarize you with the features and installation of the Carmanah solar to AC retrofit kit. Failure to comply with the use, storage, maintenance, installation or placement instructions detailed in this guide could void the warranty. - Page 4 Product can have sharp edges. Accidental movement of hinged components can cause injury. This guide is specific to retrofitting the G Series cabinet from solar to AC power and is not a replacement for the complete G Series product user manual.
-
Page 5: Solar To Ac Retrofit Kit
AC input 3.0 Installation Procedure This guide is for installing the solar to AC retrofit kit into one of the following compatible Carmanah systems: G Series – SC315-G, R820-G, R247-G, R829-G • Refer to the individual product user manual for more details at support.carmanah.com. There are many different options available for the G Series cabinet so your product may look different than shown throughout this guide. -
Page 6: Removing Solar Components
5. Remove the solar panel, solar panel harness, and solar panel mount from the pole. 6. Remove the battery bumpers as shown pictured below: Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com... -
Page 7: Installing Ac Backplane
2. Wire the DC output wires from the power supply to the DC Input Power terminal (red wire to RD +, black wire to BK −). 3. Secure the wires to one of the cutouts on the terminal block plate with a cable tie. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... - Page 8 Run the BIST (built-in self-test) and verify you only have a charging error (4000), which is normal for AC-powered systems. c. Visit support.carmanah.com for a list of BIST error codes. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
- Page 9 SOLAR TO AC RETROFIT GUIDE © 2021 Carmanah Technologies Corporation Technical Support: Email: customersupport@carmanah.com Toll Free: 1.877.722.8877 (US & Canada) Worldwide: 1.250.380.0052 Fax: 1.250.380.0062 Web: carmanah.com Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
