- Page 1 R247-G with Wireless Control USER MANUAL SUPPLEMENT Technical Support: Email: customerservice@carmanah.com Toll Free: 1.877.722.8877 (US & Canada) Worldwide: 1.250.380.0052 Fax: 1.250.380.0062 Web: carmanah.com © 2017 Carmanah Technologies Corporation...
-
Page 2: Table Of Contents
Contents Safety & Usage ................................2 Wireless Precautions ............................2 Warranty Disclaimer ............................2 Recycling ................................. 2 Abbreviations ..............................3 Limitations of scope ............................3 Theory of operation ............................3 Product Set-up ..............................4 Antenna Installation ............................4 Mechanical Arrangement and Mounting ......................4 Product Configuration ............................ -
Page 3: Safety & Usage
Safety & Usage The following symbols indicate important safety warnings and precautions throughout this manual: WARNING indicates that serious bodily harm or death may result from failure to adhere to the precautions. CAUTION indicates that damage to equipment may result if the instructions are not followed. NOTE suggests optimal conditions and provides additional information. -
Page 4: Abbreviations

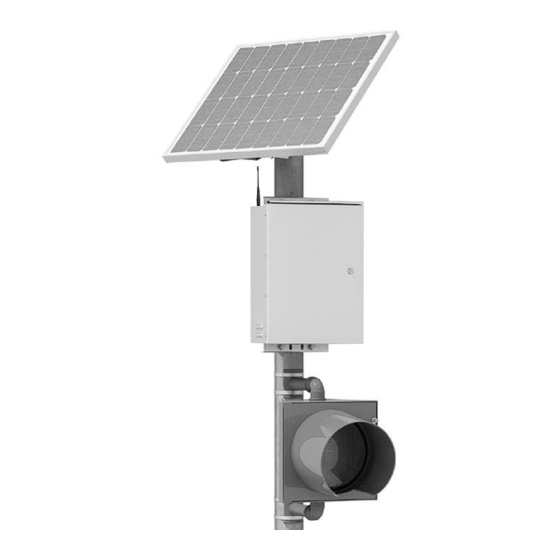

The Carmanah R247-G is a solar-powered vehicle traffic flashing beacon system designed to provide continuous 24-hour visual warning of mandatory roadway stop points and hazards. The R247-G provides an on-off flash pattern compliant with U.S. Federal Highways Administration, Manual on Uniform Traffic Control Devices (MUTCD). -
Page 5: Product Set-Up
Product Set-up Please refer to the following user manual for complete product set-up and product warnings: 3.1 Antenna Installation The control cabinet has been furnished with a replaceable whip style antenna. Locate the antenna inside the cabinet and install it on the exterior of the control cabinet as shown below: Figure 1. -
Page 6: Product Configuration
Product Configuration This product has been configured for wireless on-demand activation, however, the product can also be operated manually and can be configured to work autonomously 24 hours per day. 4.1 Wireless Control For wireless control, the system will need to be configured as an R829 product. See user manual excerpt below: Note: Please consult the product user manual for instructions for using the on-board user interface (OBUI) and the complete list of user programmable settings. -
Page 7: Beacon Intensity
– 365 candelas (Current setting of 220mA on the OBUI). Note: If higher intensities are required either for 24-hour or temporary system activations, please consult Carmanah prior to making intensity adjustments. Increasing beacon output intensity may result in either unsustainable operation or a reduction in usable battery life. - Page 8 Not Used Beacons “OFF” all other system functions Lights Off Output off remain active. Grouping R247-G listens for group Used for assigning a system or systems commands for 5 min. to unique control group. DIAGNOSE 0 Not Used DIAGNOSE 1...
- Page 9 5.1.1 Handheld Controller Key Sequences The following are key sequences for applicable operating modes with wireless control Temporary Operation (15 minutes): System ON: TEMP -> LOW, MED or HIGH -> ENTER System OFF: LIGHTS OFF -> ENTER Continuous Operation: System ON: AUTO ->...
-
Page 10: Non-Wireless Control
5.2 Non-Wireless Control If continuous 24-hour operation without wireless control is required, set the product type through the OBUI to “r247” as per section 4.2 above. Note: When the product is configured in this manner, the beacon will beacon to flash once power is connected to the system. -
Page 11: Appendix
Appendix System Overview – Control Cabinet Interior: OBUI Antenna – Lead Wire Grouping Button Radio Module Beacon Harness System Fuse (spares) Solar Panel Harness Battery Harness Antenna (packaged) Figure 5. Control Cabinet – Interior Detail... -
Page 12: Product Support
This product is covered by the Carmanah warranty. Visit carmanah.com for additional information. Before contacting Carmanah’s customer service department, please have the serial number of your product available, a brief description of the problem, as well as all details of the installation and recharging efforts (if applicable).
