OWNER'S MANUAL
Model 502 Solar LED Light

Advertisement

Table of Contents
loading

Related Manuals for Carmanah 502

Summary of Contents for Carmanah 502

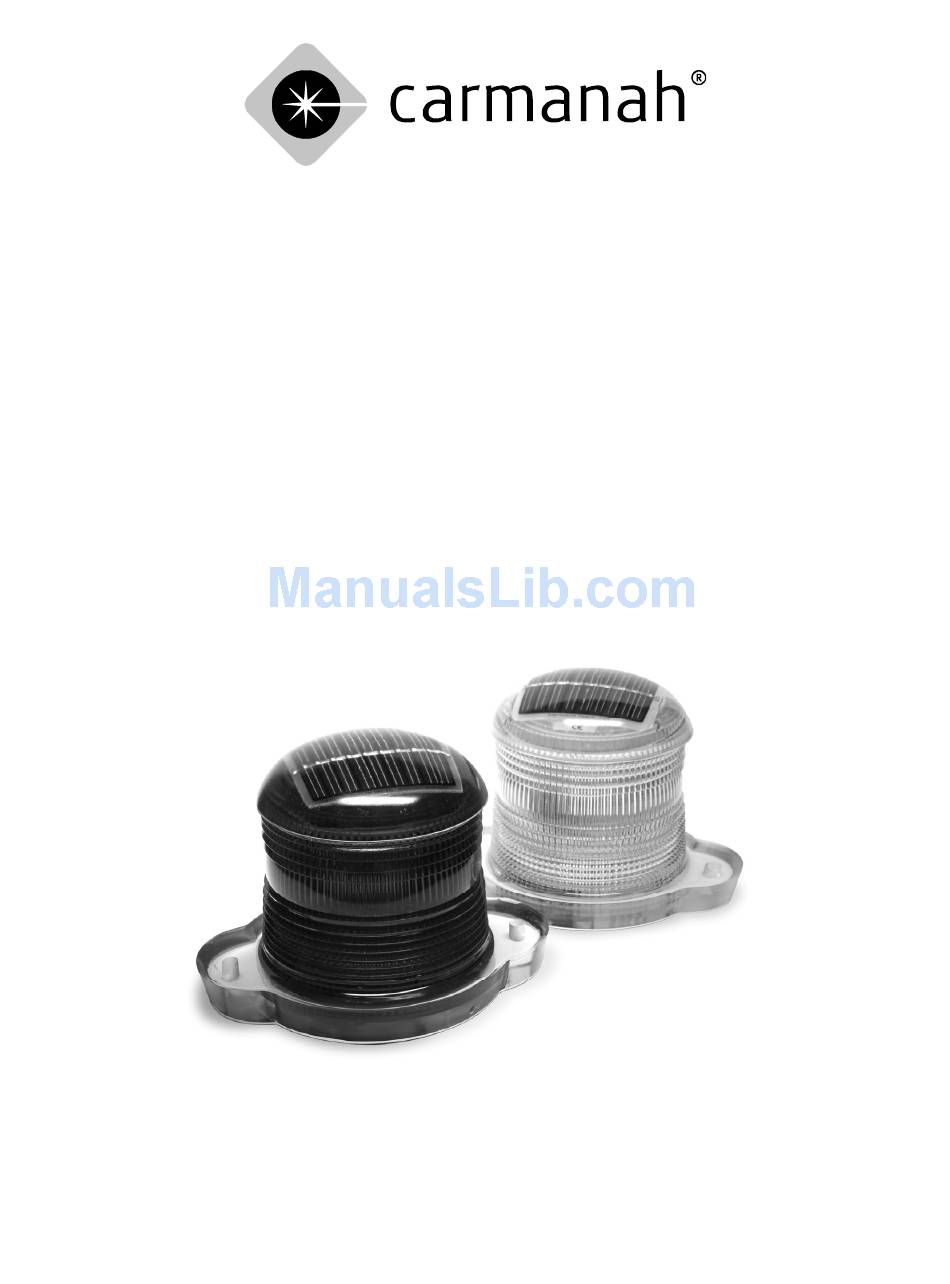

  • Page 1 OWNER’S MANUAL Model 502 Solar LED Light...

  • Page 3: Table Of Contents

    Owner’s Manual | Model 502 Contents Introduction ........................4 Infrared Programmer ......................5 Setting up the Programmer ......................5 Programming a Light ......................6 Transitioning the Light ........................6 Programming Sequence......................... 6 Entering the Security Code......................8 Changing the Flash Pattern......................8 Automatic Light Control ........................

  • Page 4: Introduction

    Owner’s Manual | Model 502 1.0 Introduction Carmanah Model 502 lights are small, self-contained, and easy to operate. During daylight hours, the light is dormant and charges its battery from the available sunlight. At night, the light flashes according to a customer-specified flash pattern.

  • Page 5: Infrared Programmer

    Owner’s Manual | Model 502 2.0 Infrared Programmer All functions of the Model 502 light are controlled by an infrared programmer. Carmanah currently supports both the original and the updated infrared programmers. The only differences between the two programmers are the faceplate and setting up the programmers; all other functionality remains the same.

  • Page 6: Programming A Light

    Owner’s Manual | Model 502 3.0 Programming a Light You can customize the light settings using the programmer. Before programming the settings you must transition the light and enter the security code. You can then program the settings listed in Table 3-1: Programmable Settings.
  • Page 7 When programming a Model 502 light, the key sequence on the programmer and the responding flash sequence from the light is always in the format shown in Figure 3-1 regardless of the settings being configured.

  • Page 8: Entering The Security Code

    After the light is transitioned, you must enter the programming security code before you can make any changes to the Model 502 light’s settings. You must enter the security code every time the light is transitioned. The security code is 753.

  • Page 9: Automatic Light Control

    Owner’s Manual | Model 502 3.5 Automatic Light Control The Automatic Light Control (ALC) function of the Model 502 light monitors the battery voltage and reduces the light’s intensity level if the light is not receiving sufficient solar charging to maintain the battery voltage.

  • Page 10: Storing A Light

    Owner’s Manual | Model 502 4.0 Storing a Light You can store or ship a light by placing it in either storage mode or sleep mode. Store a light if it is not going to be used for an extended period of time or if is being shipped to an alternate location and you do not want it to turn on during transit.

  • Page 11: Testing The Battery

    Owner’s Manual | Model 502 5.0 Testing the Battery Storing a light in a low state of charge can damage the battery and cause it to lose its ability to hold a charge. To determine the state of charge of the batteries in a light, transition the light, if needed, and enter code 8 1 0;...

  • Page 12: Recharging A Light

    Owner’s Manual | Model 502 6.0 Recharging a Light If the light is in use and in a low battery state, displays a single quick flash once every minute to indicate that the light needs charging. The light cannot be programmed or transitioned until it is charged. The light must also be charged if it has a charge of 75% or less while in storage or sleep mode.

  • Page 13: Appendices

    7.0 Appendices Appendix A: Original Infrared Programmer All functions of the Model 502 light are controlled by an infrared programmer. Carmanah currently supports both the original and the updated infrared programmers. The only differences between the two programmers are the faceplate and setting up the programmers; all other functionality remains the same.

  • Page 14: Appendix B: Frequently Asked Questions

    It’s been raining a lot here. Will my light stop working? A Carmanah light is a solar light and it does require solar energy to work. However, it can run for 150 hours at full intensity, or 600 hours at low intensity without recharging.

  • Page 15: Appendix C: Glossary Of Terms

    Customer Service Before contacting Carmanah’s customer service department, please have the serial number of the Model 502 light available, a brief description of the problem, as well as all details of installation and recharging efforts. To contact Carmanah’s Customer Service Department:...
  • Page 16 © 2008 Carmanah Technologies Corporation carmanah.com Technical Support: customerservice@carmanah.com Toll Free in Canada and U.S.: 1.877.722.8877 International: 1.250.380.0052 | Fax: 1.250.380.0062 Number: 502_53510_Manual_vB 53510...
