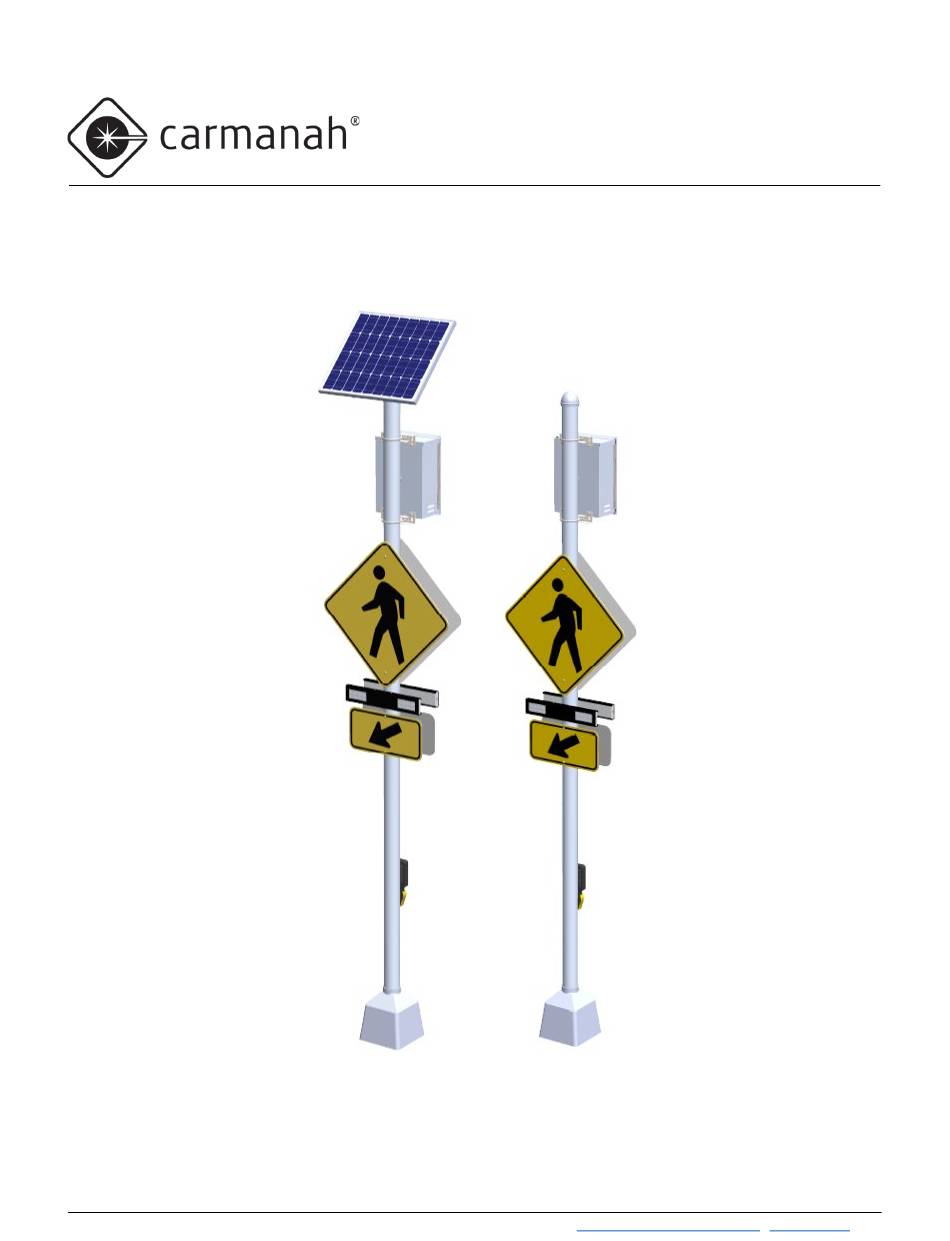

- Page 1 G Series AC TO SOLAR RETROFIT GUIDE For all AC-powered G Series systems 89321_RETROFIT_GUIDE_AC_TO_SOLAR_G_SERIES_REVC Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
-
Page 2: Table Of Contents
3.0 Installation Procedure ............................5 Removing AC Components ........................6 Installing Battery Bumpers ..........................8 Installing Solar Panel, Mount, and Harness ....................8 Installing Battery and Final Connections ....................8 Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com... -
Page 3: Warnings And Precautions
NOTE suggests optimal conditions and provides additional information. Warranty Disclaimer This guide will familiarize you with the features and installation of the Carmanah AC to solar retrofit kit. Failure to comply with the use, storage, maintenance, installation or placement instructions detailed in this guide could void the warranty. - Page 4 Product can have sharp edges. Accidental movement of hinged components can cause injury. This guide is specific to retrofitting the G Series cabinet from AC to solar power and is not a replacement for the complete G Series product user manual.
-
Page 5: Ac To Solar Retrofit Kit
• Battery – various sizes (1) 3.0 Installation Procedure This guide is for installing the AC to solar retrofit kit into one of the following compatible Carmanah systems: • G Series – SC315-G, R820-G, R247-G, R829-G Refer to the individual product user manual for more details at support.carmanah.com. There are various options available for the G Series cabinet so your product may appear differently than shown throughout this guide. -
Page 6: Removing Ac Components
Cross out the AC power ratings information on the label with a permanent marker. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com... - Page 7 If you do not have the optional Polara XAV push button, remove the ground wire from the system. There will be a ground wire that remains from the cabinet door to the inner cabinet. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com...
-
Page 8: Installing Battery Bumpers
Installing Solar Panel, Mount, and Harness 1. Refer to the G Series manual for solar panel and mount installation details. The G Series manual can be found on the Carmanah website: support.carmanah.com. a. Top of pole solar panel mounts will include a plastic pole cap. Systems located in Miami-Dade County will require a metal cap for the top of pole mount. - Page 9 NO (normally open) or disconnect the LED loads so the system isn’t under a constant power draw. d. Visit support.carmanah.com for a list of BIST error codes. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
- Page 10 AC TO SOLAR RETROFIT GUIDE © 2021 Carmanah Technologies Corporation Technical Support: Email: customersupport@carmanah.com Toll Free: 1.877.722.8877 (US & Canada) Worldwide: 1.250.380.0052 Fax: 1.250.380.0062 Web: carmanah.com Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
