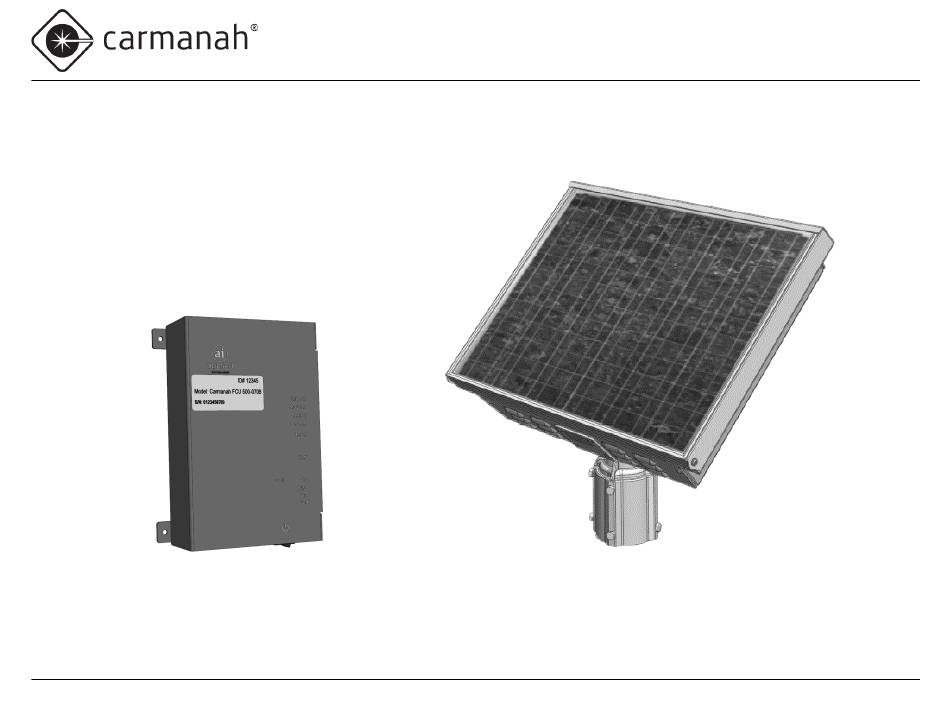

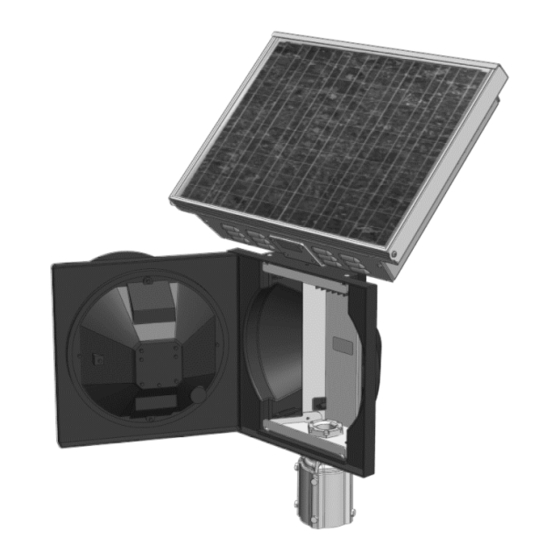

E/F Series
APPLIED INFORMATION (AI) INTEGRATION KIT INSTALL GUIDE
89104_InstallGuide_TRA_F-Series-AI-Integration-Kit_RevB
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carmanah E Series

Summary of Contents for Carmanah E Series

  • Page 1 E/F Series APPLIED INFORMATION (AI) INTEGRATION KIT INSTALL GUIDE 89104_InstallGuide_TRA_F-Series-AI-Integration-Kit_RevB Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 1...

  • Page 2: Warnings And Precautions

    Warranty Disclaimer This manual will familiarize you with the features, operation standards, and installation of Carmanah’s E/F Series Applied Information (AI) Integration Kit. Failure to comply with the use, storage, maintenance, installation or placement instructions detailed in this manual could void the warranty.

  • Page 3: Safety And Usage Precautions

    Changes or modifications to Carmanah equipment not expressly approved by Carmanah could void both the user's authority to operate the equipment and the warranty. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 3...
  • Page 4 The E/F Series AI Integration Kit is available in two different states of assembly described below. • If ordered with a Carmanah E/F system: the harnessing is assembled to the Carmanah EMS in the factory, creating an “AI-ready” Carmanah E/F system. Installation Steps 1 – 14 can be skipped.

  • Page 5: System Components

    3 Inch 89106 Heat Shrink Tubing, 3/8" ID, 2:1, Glue-Lined, black 1 Inch 89104 Install Guide, AI Integration Kit, F-Series Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 5...

  • Page 6: Tools And Materials Required

    • Crescent wrench • Side cutters • Heat gun • 3/32” flat blade screwdriver • Multi-bit screwdriver • Electrical multimeter Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 6...
  • Page 7 • Use heat gun to affix the heat shrink tubing. • Strip insulation of the five wires 0.35”. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 7...
  • Page 8 • Swing the EMS down to access the internal wiring. If radio is present, ensure radio pins are not bent and antenna cable is not damaged. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 8...
  • Page 9 • Remove battery harness wires from battery circuit board terminal by pushing down on each terminal button with small flat bladed screwdriver and pulling out each wire. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 9...
  • Page 10 BAT−. wires wires Make sure all wire strands go into the terminal hole. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 10...
  • Page 11 • Align ends of heatshrink on both harnesses near end of sheet metal tab. • Cable tie around both harnesses and sheet metal tab. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 11...
  • Page 12 • Insert other end of 3” yellow wire into 3-position splice terminal. • Insert yellow wire from AI harness into third splice terminal position. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 12...
  • Page 13 Route Wires • Tuck 3-position splice terminal under PV and battery harnesses as shown. • Route wires as neatly as possible. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 13...
  • Page 14 • Turn EMS over and replace four screws. • Install ring terminal from green ground wire under bottom right EMS screw. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 14...
  • Page 15 Drill Hole for Antenna • F Series: use the indentation to locate the tip of the drill bit. • E Series: on the top of the enclosure, mark a point 1.13” from the back and 1.50” from the side as shown.
  • Page 16 • Match GPS & GSM labels on antenna harness & AI unit (Cell closer to front, GPS closer to back). Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 16...
  • Page 17 • Route coax cables between AI unit and antenna neatly and cable tie as needed. Avoid sharp bends in the coax cable. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 17...
  • Page 18 • On the upper left side of the browser, select the device name that matches the Device ID (the ID number labelled on the AI unit). Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 18...
  • Page 19 If testing indoors where there is no GPS signal, this may result in a device status of “No GPS Lock.” R829 school zone application shown. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 19...
  • Page 20 © 2021 Carmanah Technologies Corporation Technical Support: Email: customerservice@carmanah.com Toll Free: 1.877.722.8877 (US & Canada) Worldwide: 1.250.380.0052 Fax: 1.250.380.0062 Web: carmanah.com Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customerservice@carmanah.com | carmanah.com Page 20...
