Summary of Contents for Carmanah EG 145

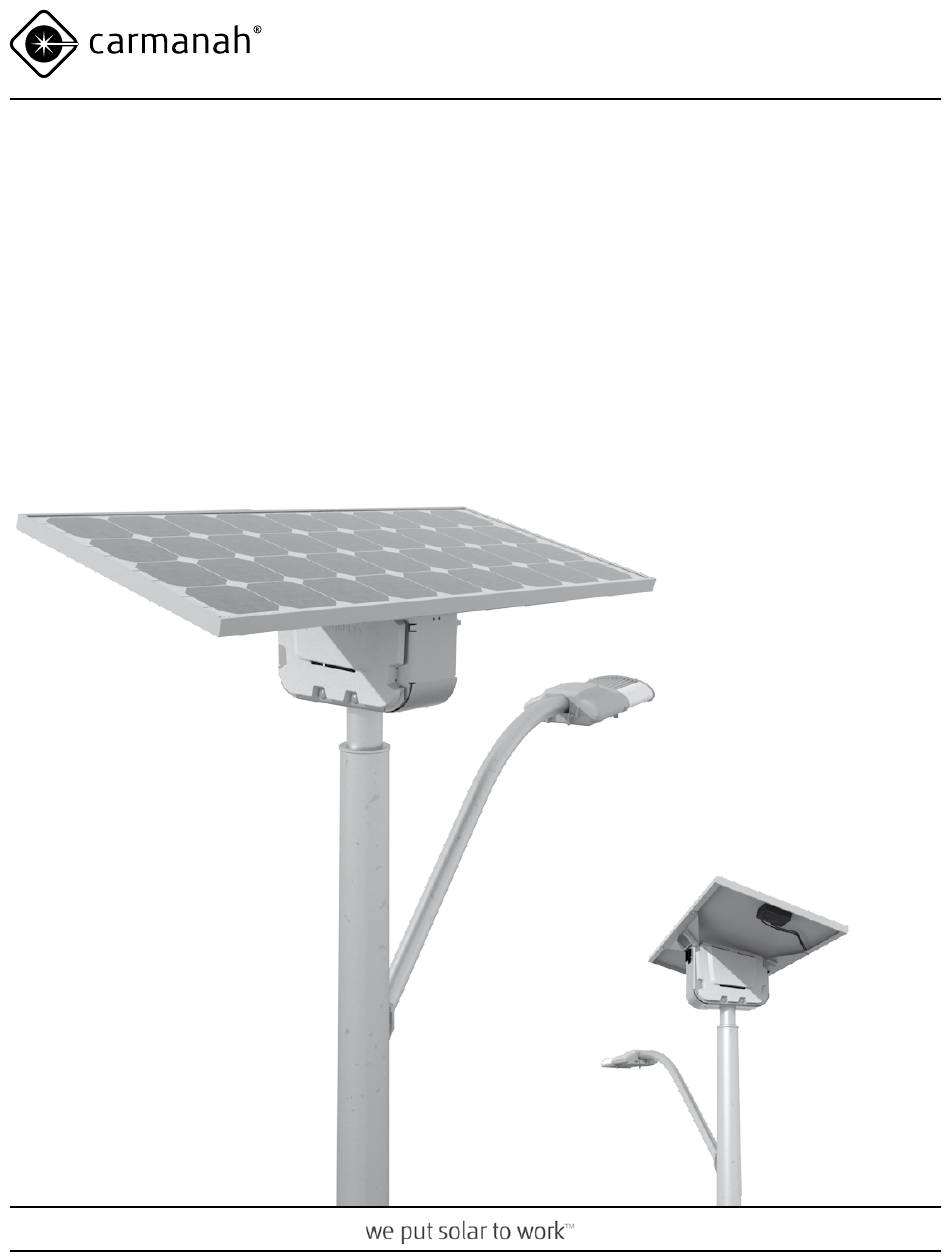

- Page 1 EG 145 InstallatIon GUIDE • GUÍa DE InstalacÍon • GUIDE D'InstallatIon Model • Modelo • Modèle EG 145...
- Page 2 EG 145 InstallatIon GuIdE 10° tilt Kit Required tools Flat Head screw Driver 15° tilt Kit Phillips screw Driver 7/16” Wrench or socket 1/2” Wrench or socket 20° tilt Kit 3/4” Wrench or socket © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 3 EG 145 InstallatIon GuIdE Insert Grounding 10° tilt Kit secure Panel Brackets to Washer Panel Frame Finger tighten only secure Braces to Panel Brackets Finger tighten only © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 4 EG 145 InstallatIon GuIdE Insert Grounding 15° tilt Kit secure Panel Brackets to Washer Panel Frame Finger tighten only secure Braces to Panel Brackets Finger tighten only © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 5 EG 145 InstallatIon GuIdE Insert Grounding 20° tilt Kit secure Panel Brackets to Washer Panel Frame Finger tighten only secure Braces to Panel Brackets Finger tighten only © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 6 EG 145 InstallatIon GuIdE tighten all nuts secure Panel cable with Zip ties © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 7 EG 145 InstallatIon GuIdE Place Frame on Wood supports Insert Bolts into Frame © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 8 EG 145 InstallatIon GuIdE attach Grounding Block Insert controller into Frame © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 9 EG 145 InstallatIon GuIdE Insert controller Ground Wire into Ground Block Insert only carmanah supplied Resistor © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 10 EG 145 InstallatIon GuIdE Route Panel cables secure Panel cables with Zip tie © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 11 EG 145 InstallatIon GuIdE Pre-install Zip tie Feed optional Ground Wire into Frame (not supplied, Max 4aWG) © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 12 EG 145 InstallatIon GuIdE secure optional Ground Wire secure optional Ground cable to Frame with Zip ties © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 13 EG 145 InstallatIon GuIdE Feed Fixture Wire into Frame secure Fixture Wire with Marrets © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 14 EG 145 InstallatIon GuIdE secure Fixture Wire with Zip ties Feed Battery strap through Frame © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 15 U1 Battery Battery Pan legs Facing Down Group 22 Battery Battery Pan legs Facing Up Group 24 Battery Battery Pan legs Facing Up Group 27 Battery no Battery Pan Group 31 Battery no Battery Pan © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 16 EG 145 InstallatIon GuIdE secure Battery with strap apply Grease to Battery terminals © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 17 EG 145 InstallatIon GuIdE connect negative terminal Do not Insert Fuse connect Positive terminal © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 18 EG 145 InstallatIon GuIdE Place Panel assembly on Frame Insert Bolt and Finger tighten nut © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 19 EG 145 InstallatIon GuIdE clIcK Route and connect Panel cables secure Panel connectors with Zip tie © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 20 Green From Engine Brown TEST SEND HOLD TO TEST OR SEND TEST TEST SEND SEND HOLD TO HOLD TO TEST OR TEST OR SEND SEND HolD BUttons FoR > 10 sec! © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva TEST SEND...
- Page 21 EG 145 InstallatIon GuIdE lower Plastic cover over Battery Proper Wire Routing Ensure tabs are secure © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 22 EG 145 InstallatIon GuIdE lift and Pivot Panels into Place Insert Bolt and tighten nut Do not over tighten! © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 23 EG 145 InstallatIon GuIdE tighten nut at Pivot Do not over tighten! © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 24 EG 145 InstallatIon GuIdE connect lift straps (not supplied) system lifted off Ground and over Pole © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 25 EG 145 InstallatIon GuIdE Feed Fixture Wire Feed optional Ground Wire © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 26 EG 145 InstallatIon GuIdE lower on Pole Point Panels south if Point Panels north if in northern Hemishere in southern Hemishere © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 27 EG 145 InstallatIon GuIdE 60 ft-lb tighten spine nuts 8.3 kg-m Install Fixture © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 28 TEST OR HOLD TO SEND TEST OR SEND HolD BUtton FoR > 10 sec! TEST TEST SEND SEND HOLD TO TEST OR HOLD TO SEND TEST OR SEND HolD BUtton FoR > 10 sec! © 2012, carmanah technologies corporation. EG145InstallGuide_67845Reva...
- Page 29 Worldwide: 1.250.380.0052 © 2012 carmanah technologies Fax: 1.250.380.0062 corporation Web: carmanah.com a color version of this document is available at carmanah.com a version for mobile devices can be downloaded by scanning the code to the right using a QR reader...
