Satel ABAX 2 ACU-280 Manual

Wireless system controller
Hide thumbs Also See for ABAX 2 ACU-280:
Table of Contents

Advertisement

Quick Links

Download this manual

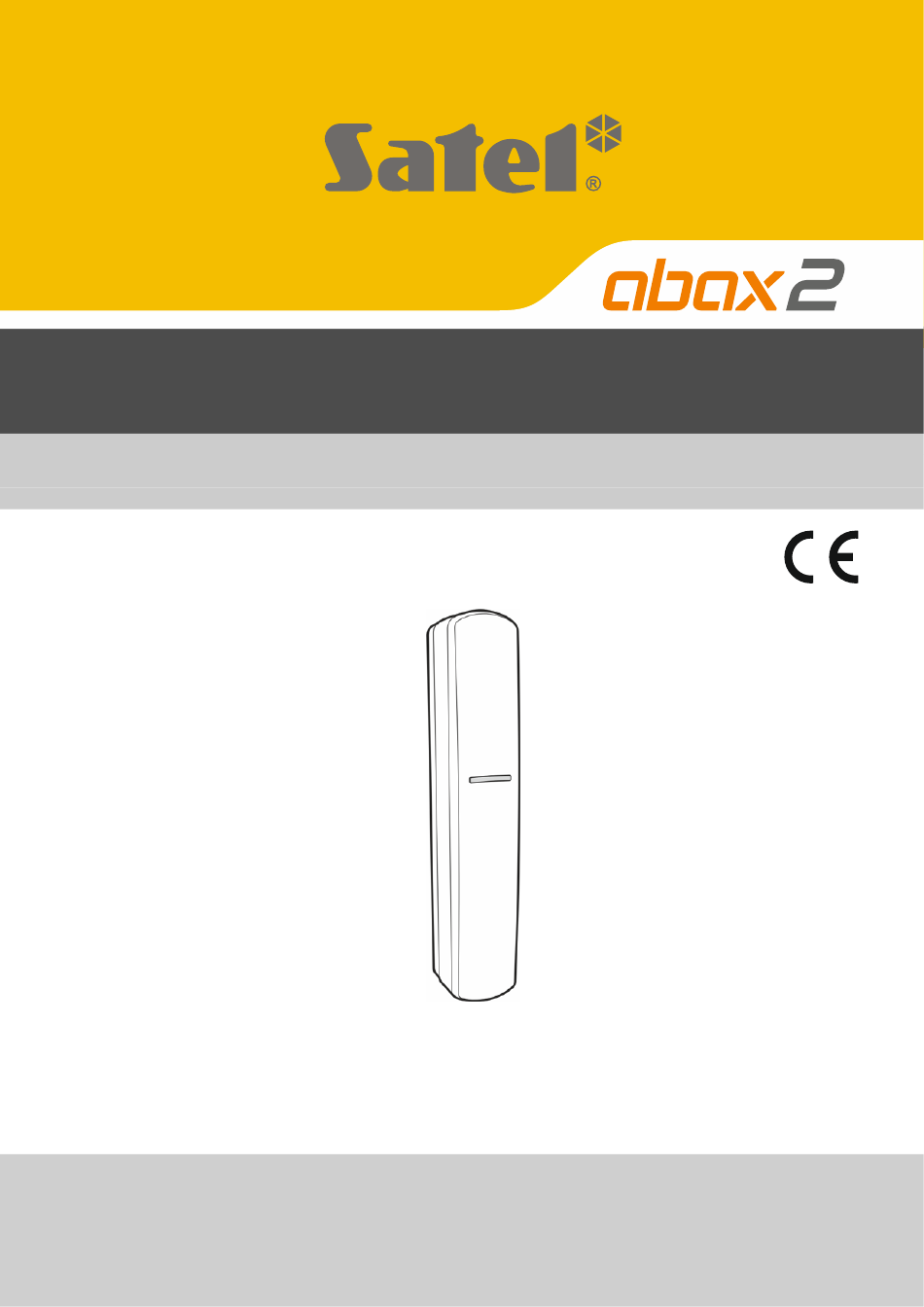

ACU-280

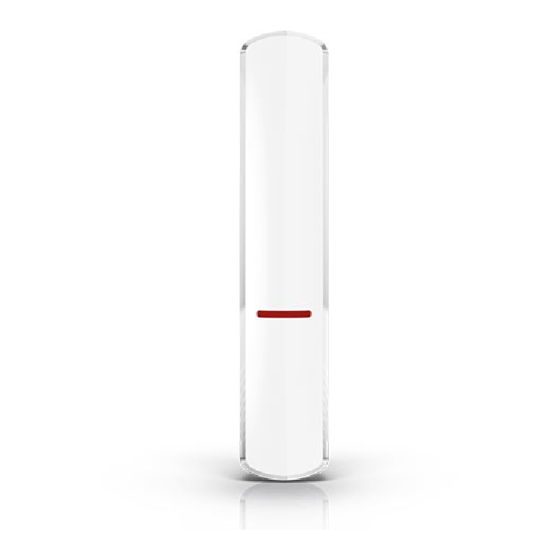

ABAX 2 wireless system controller
Firmware version 6.00
acu-280_en 03/19
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABAX 2 ACU-280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satel ABAX 2 ACU-280

Summary of Contents for Satel ABAX 2 ACU-280

  • Page 1 ACU-280 ABAX 2 wireless system controller Firmware version 6.00 acu-280_en 03/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 The rating plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.

  • Page 3: Table Of Contents

    CONTENTS Introduction........................3 Features ........................... 3 Electronics board ......................4 Terminals........................4 DIP-switches......................5 3.2.1 Selecting the controller operating mode ..............5 3.2.2 Address setting [expander of wireless devices for the INTEGRA / INTEGRA Plus control panel] ......................5 Installation of the controller....................6 Selecting a mounting location..................
  • Page 4 ACU-280 SATEL Description of the program ..................35 9.1.1 Menu bar in the program..................35 9.1.2 Additional menu ....................36 Establishing connection between the program and the controller......36 Status ........................37 9.3.1 Comm. history......................39 Keyfob state......................40 10 Controller firmware update....................41 10.1 Updating the firmware of ABAX 2 wireless devices ..........41 11 Restoring the controller factory settings................42...

  • Page 5: Introduction

    Introduction The ACU-280 controller enables expansion of the alarm system by adding the ABAX 2 wireless devices. It can work as expander of wireless devices for SATEL alarm control panels:  INTEGRA and INTEGRA Plus (firmware version 1.19 or newer), ...

  • Page 6: Electronics Board

    ACU-280 SATEL Electronics board Fig. 1. Controller electronics board. DIP-switches. LED indicating the status of communication with the control panel: ON – no communication with the control panel, flashing – communication with the control panel OK. tamper switch. RS-232 port (TTL standard).

  • Page 7: Dip-Switches

    SATEL ACU-280 DIP-switches Using the DIP-switches, you can:  define the controller operating mode,  set the controller address (operating mode: expander of wireless devices for the INTEGRA / INTEGRA Plus control panel). 3.2.1 Selecting the controller operating mode Fig. 2. Switches defining the controller operating mode.

  • Page 8: Installation Of The Controller

    ACU-280 SATEL DIP-switch Number Table 2. If the controller is to be connected to the control panel to which an ABAX 2 / ABAX controller is already connected, it is recommended that the address to be set in the new controller be higher than that in the controller already connected to the control panel.
  • Page 9 SATEL ACU-280 Fig. 4. Opening the enclosure. Fig. 5. Installation of enclosure base.

  • Page 10: Setting Dip Switches

    ACU-280 SATEL 3. Drill holes for wall plugs (anchors) in the wall. 4. Make the cable entry opening at the base. The opening diameter must be larger than 5 mm. The finished opening must not have sharp edges. 5. Run the cables through the prepared opening (power cables, cables connecting the controller with the control panel or other devices, etc.).

  • Page 11: Connecting The Power Supply And Starting The Controller

    SATEL ACU-280 VERSA Plus VERSA ACU-280 ACU-280 VERSA IP AUX CLK DTA COM +12V COM CKE DTE +VR DTA CLK COM +12V COM CKE DTE Fig. 7. Method of connecting the controller to the VERSA / VERSA Plus / VERSA IP control panel.

  • Page 12: Keypads

    ACU-280 SATEL - wireless smoke detector. ASD-250 - wireless multipurpose detector, which can work as: AXD-200 AFD-200 - water flood detector, AMD-200 - magnetic contact, AMD-201 - dual channel magnetic contact, AMD-202 - magnetic contact with input for roller shutter detector,...

  • Page 13: Registering Devices To The Controller

    SATEL ACU-280 For detailed information about installation of individual devices, please refer to the manuals of the respective products. Registering devices to the controller Each wireless device, including the ARF-200 tester, must be registered to the controller. Before adding a device that was previously registered to the ABAX / ABAX 2 system, you must restart it (remove the battery / power the device off for 30 seconds).
  • Page 14 ACU-280 SATEL list and then added to the system again, so as to fill up the gap in the list and reduce the number of zones reserved for wireless devices. In case of devices which, in addition to zones, also take up outputs, it is recommended that you add them to the system first.

  • Page 15: Adding New Wireless Devices

    SATEL ACU-280 Table 3 shows how the wireless devices should not be registered. The first siren output takes up position 8, and the second output occupies position 9. As a result, 16 outputs have been reserved for wireless devices in the system, although actually only 2 are used (the eighth output in the first group of 8 outputs and the first output in the second group of 8 outputs).
  • Page 16 ACU-280 SATEL the same name will be given to the other zones. If the device is to be assigned to outputs, the outputs will be given the same name. 6.3. For some devices you can select if the device is to occupy one or two positions on the list of devices.

  • Page 17: Removing Wireless Devices

    SATEL ACU-280 6. Press the key 1. 7. If you can select whether the device will take up one or two positions (channels) on the list of devices, a special message will inform you about it. Press the key 1 (the device will occupy 1 position) or the key 2 (the device will occupy 2 positions).

  • Page 18: Expander Of Wireless Devices For The Versa / Versa Plus / Versa Ip Control Panel

    ACU-280 SATEL 6.1.2 Expander of wireless devices for the VERSA / VERSA Plus / VERSA IP control panel Data on wireless devices are stored in the controller. If you connect to the control panel a controller:  with registered devices – during identification procedure, these devices will be automatically assigned to the system zones / outputs.

  • Page 19: Removing Wireless Devices

    SATEL ACU-280 the same name will be given to the other zones. If the device is to be assigned to outputs, the outputs will be given the same name. 7.3. In the “Zone” field, select the number of the zone to which you want to assign the device (if you have not done this before or if you want to change the previously selected number).

  • Page 20: Configuring The Abax 2 System

    ACU-280 SATEL 3. Click on the “Delete” button. 4. The “Confirm” window will open. 5. Click on the “Yes” button. 6. The “Confirm” window will close. 7. Click on the “Write” button to save changes to the controller (these data will not be saved after clicking on the button in the main menu).

  • Page 21: Controller Settings

    SATEL ACU-280 Controller settings Fig. 10. DLOADX program: parameters and options of the controller connected to INTEGRA / INTEGRA Plus control panel. Name – individual name of device (up to 16 characters). Tamper signaled in partition [Tamper in part.] – partition where alarm will be triggered in the event of module tamper.

  • Page 22: Functions

    ACU-280 SATEL No automatic update of wireless devices firmware [No updates] – if this option is enabled, the firmware of wireless devices registered in the controller is not updated automatically (see “Updating the firmware of ABAX 2 wireless devices” p. 41).

  • Page 23: Device Settings

    SATEL ACU-280 Device settings ARU [Use ARU-100] – parameter available for a wireless device, if the ARU-200 repeater is registered in the controller (the controller is connected to the INTEGRA or INTEGRA Plus control panel). It allows you to define whether the device is to communicate to the controller directly, or via the selected ARU-200 repeater (several ARU-200 repeaters can be registered in the controller).
  • Page 24 ACU-280 SATEL APD-100 (APD-200) – wireless passive infrared detector. You can configure sensitivity. APD-100 (APD-200 Pet) – wireless passive infrared detector with pet immunity up to 20 kg:  you can configure sensitivity,  do not configure the pet immunity option (the APD-200 Pet detector is always immune to the movement of pets).

  • Page 25: Configuring Devices Using The Dloadx Program

    SATEL ACU-280 Temp. corr. – you can correct the temperature information sent by the device by up to ±3.5°C. ECO – if this option is enabled, periodical communication with the device takes place every 3 minutes. Thus the battery life can be extended up to four times.
  • Page 26 ACU-280 SATEL AOD-200 (AOD-210) Enter 3 digits: 1st digit – sensitivity of PIR sensor: from 1 to 4 (1 – minimum; 4 – maximum). 2nd digit – sensitivity of microwave sensor: from 1 to 8 (1 – minimum; 8 – maximum).

  • Page 27: Configuring Devices Using The Lcd Keypad

    SATEL ACU-280 Two sound frequencies (1450 Hz/2000 Hz) alternating within 1 second. Sound with rising frequency (from 1450 Hz to 2000 Hz) within 1 second. Sound with smoothly rising and falling frequency (1450 Hz – 2000 Hz – 1450 Hz) within 1 second.
  • Page 28 ACU-280 SATEL Active mode Press any key to define whether the detector is to be always active ( – no, – yes). Settings To configure parameters and options, use the arrow keys and the number keys. For description of the settings, see the section on configuring devices from the DLOADX program.
  • Page 29 SATEL ACU-280 3. Use the  and  keys to select the pulse validity (30, 120 or 240 seconds or unlimited duration). 4. Press AOCD-250 (AOCD-260) 1. Enter a number from the 0 to 50 range to define the rules of device presence control.
  • Page 30 ACU-280 SATEL 5. Enter a digit from the 1 to 3 range to define sensitivity (1 – low, 2 – medium, 3 – high). 6. Press 7. When the pet immunity settings are displayed, press (these settings are irrelevant). APMD-150 (APMD-250) 1.

  • Page 31: Specific Character Of The Operation Of Wireless Devices

    SATEL ACU-280 For the shock detector: 1. Enter a digit from the 1 to 8 range to define sensitivity (1 – minimum; 8 – maximum). 2. Press 3. When the settings regarding the number of shocks are displayed, press (these settings are irrelevant).

  • Page 32: Wireless Sirens

    ACU-280 SATEL Operation of the detector is affected by the state of partition to which the zone belongs: partition disarmed – the detector operates in passive mode. This operating mode prolongs the battery life. Detector informs the controller about its status during periodical communication (only the tamper information is sent immediately).

  • Page 33: Wireless 230 V Ac Controllers

    SATEL ACU-280 The EN50131-3 standard requires that zones must react to signals lasting more than 400 ms. Therefore, select 400 ms when programming sensitivity of the alarm zones. Information on the state of zones and commands to change the state of outputs are sent immediately.
  • Page 34 ACU-280 SATEL  LCD keyfob – use “Copy ABAX kfobs” function (service mode “Structure” “Hardware” “Expanders” “Copy ABAX kfobs”). The controller does not support the APT-100 keyfobs. Fig. 12. DLOADX program: keyfob management when the controller is connected to INTEGRA / INTEGRA Plus control panel.

  • Page 35: Keyfob Management Using The Dloadx Program

    SATEL ACU-280 8.1.1 Keyfob management using the DLOADX program You can manage the keyfobs in the “Keyfobs ABAX” window (Fig. 12). The window opening command is available in the “Users” menu. Before making any changes, click on the “Read” button, and after making the changes – on the “Write” button (the data related to keyfobs are not read and saved after clicking on the button in the program main menu).

  • Page 36: Keyfob Management Using The Dloadx Program

    ACU-280 SATEL After a keyfob has been added, its settings will be configured automatically, based on the user schedule. These settings can be modified (different functions can be assigned to the buttons / combination of buttons and different information to the LEDs).

  • Page 37: Abax 2 Soft Program

    6. The keyfob serial number shown in the “S/N” column will be erased. ABAX 2 Soft program The ABAX 2 Soft program enables diagnostics of the ABAX 2 wireless system. You can download the ABAX 2 Soft program from www.satel.eu website. Description of the program 9.1.1 Menu bar in the program The menu bar is displayed in the top part of the program window.

  • Page 38: Additional Menu

    Establishing connection between the program and the controller 1. Connect the controller RS-232 (TTL) port with the computer port using the USB-RS converter offered by SATEL. 2. Select the computer COM port to be used for communication with the controller (see ““Connection”...

  • Page 39: Status

    SATEL ACU-280 Status Fig. 16. ABAX 2 Soft program: “Status” tab. Controller status Jamming Information about radio communication jamming: [yellow] – communication is jammed, [gray] – communication was jammed. Level – level of radio communication jamming signal. Count – number of radio communication jamming cases.
  • Page 40 ACU-280 SATEL expander of wired zones/outputs: input activated, ASW-200 controller: button pressed / relay turned on (230 V AC power ON), ASW-210 controller: input activated / relay turned on (230 V AC power ON). TMP – tamper information: [red] – tamper, [gray] –...

  • Page 41: Comm. History

    SATEL ACU-280 communication are working on this channel and what is the radio noise level. If there are any undesired radio signals which are comparable to or stronger than the signals from the ABAX 2 system, they will interfere with the system operation. This may result in a periodic loss of communication as well as quicker draining of the battery in wireless devices.

  • Page 42: Keyfob State

    ACU-280 SATEL Fig. 19. A segment of graph showing communication history. Legend to Fig. 19: dark-green – level of the radio signal received by the device from the controller. light-green – level of the radio signal received from the device by the controller.

  • Page 43: Controller Firmware Update

    Remember to save the controller settings to file before the firmware update. 1. Download the ACU-280 controller firmware update program from www.satel.eu. 2. Connect the RS-232 (TTL) port of the controller to the USB port of the computer. To make the connection, use the USB-RS converter, offered by SATEL.

  • Page 44: Restoring The Controller Factory Settings

    ACU-280 SATEL ABAX 2 Soft program at the device firmware version. You can then click on the button (see “Devices status” p. 37 and “Keyfob state” p. 40) to restart the update process. At the final phase of the firmware update, the device does not perform its normal functions for a few seconds.
