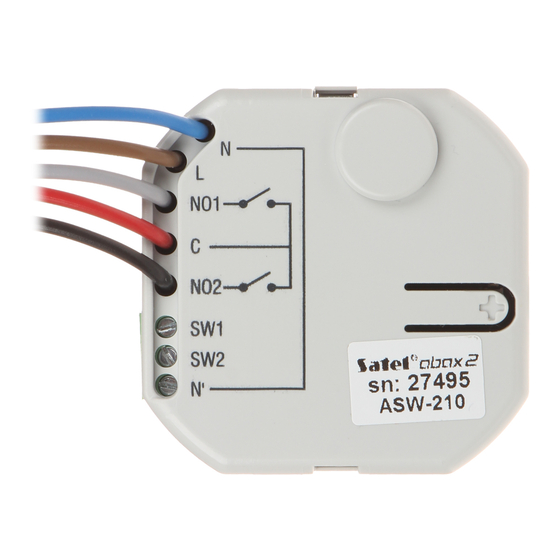

Abax 2 flush-mounted wireless two-channel 230 v ac controller

Advertisement

ASW-210
Flush-mounted wireless two-channel
230 V AC controller
Firmware version 1.00
asw-210_en 07/19
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASW-210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Satel ASW-210

  • Page 1 ASW-210 Flush-mounted wireless two-channel 230 V AC controller Firmware version 1.00 asw-210_en 07/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 The rating plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 The ASW-210 controller enables 230 V AC wired devices to be remotely switched ON/OFF. Additionally, the controller inputs make it possible to manually control these devices by using wired switches. The controller is designed to work as part of the ABAX 2 / ABAX two-way wireless system.
  • Page 4 - for connecting 230 V AC supply neutral wire. N’ Radio communication The ASW-210 controller connects to the ABAX 2 / ABAX controller / control panel at regular time intervals to provide information about its status (periodical communication). Additional communication takes place when the ASW-210 controller: ...
  • Page 5 Do not connect more than one LED lighting power supply to the relay output. The ASW-210 controller is designed for mounting inside an electrical junction box (60 mm deep). It should be installed indoors, in spaces with normal air humidity. When choosing the installation location, remember that thick masonry walls, metal partitions etc.
  • Page 6 / INTEGRA 128-WRL alarm control panel is not possible. 7. Close the junction box. 8. Check the level of radio signal received from ASW-210 controller by the ABAX 2 / ABAX controller / control panel. If it is low, try to move around the ASW-210 controller and check if it improves the signal strength.
  • Page 7 SATEL ASW-210...
