The RX2K (RX4K) multi-channel radio controller has been designed for application in the
security systems, where it can serve control functions for arming partitions and bypassing
partitions or detectors, or even panic buttons. Owing to its expanded configuration options, it
can be successfully used in all situations where wireless control is required.
The radio controller is fitted with electromagnetic relays which make possible direct control of
the electric equipment operation. It comes as a two-channel (RX2K) and/or four-channel
(RX4K) device, the both versions differing in the number of the relays installed. To perform
the control function (as transmitters), two- or four-button remote controls are designed. High
resistance of the remote controls to environmental changes ensures a stable performance
and
a high comfort of the controller use. The construction, based on the Microchip
Technology Inc. component parts, which use the dynamically changed KEELOQ
the transmission between transmitter and receiver, ensures both the safety of use and the
resistance to spurious control signals coming from other equipment. The multi-channel
controller can work together with 340 remote controls. The controller can only handle the
SATEL remote controls.
Interfacing with the security systems is facilitated by the inputs informing of the system
status, which make for an easy arrangement of the signaling of arming/disarming and
clearing alarm.
WARNINGS
The control panel main board contains electronic components sensitive to electric charges.
Prior to installation, these charges must be removed. During installation, avoid touching any
elements on the control panel main board.
Making any construction changes or unauthorized repairs is prohibited. This applies, in
particular, to modification of assemblies and components.
It is recommended that in the remote controls the producer's required battery should be used.
CAUTION! The old batteries must not be thrown away, but disposed of as required by the
existing regulations (European Directives 91/157/EEC and 83/86/EEC).
HOOKUP DESCRIPTION
ANTENNA
RECEIVER
ANTI-TAMPERING
CONTACT
®
TMP
D1
AR AL. LV SS+12V COM C1 NC1 NO1 C2 NC2 NO2 C3 NC3 NO3 C4 NC4 NO4

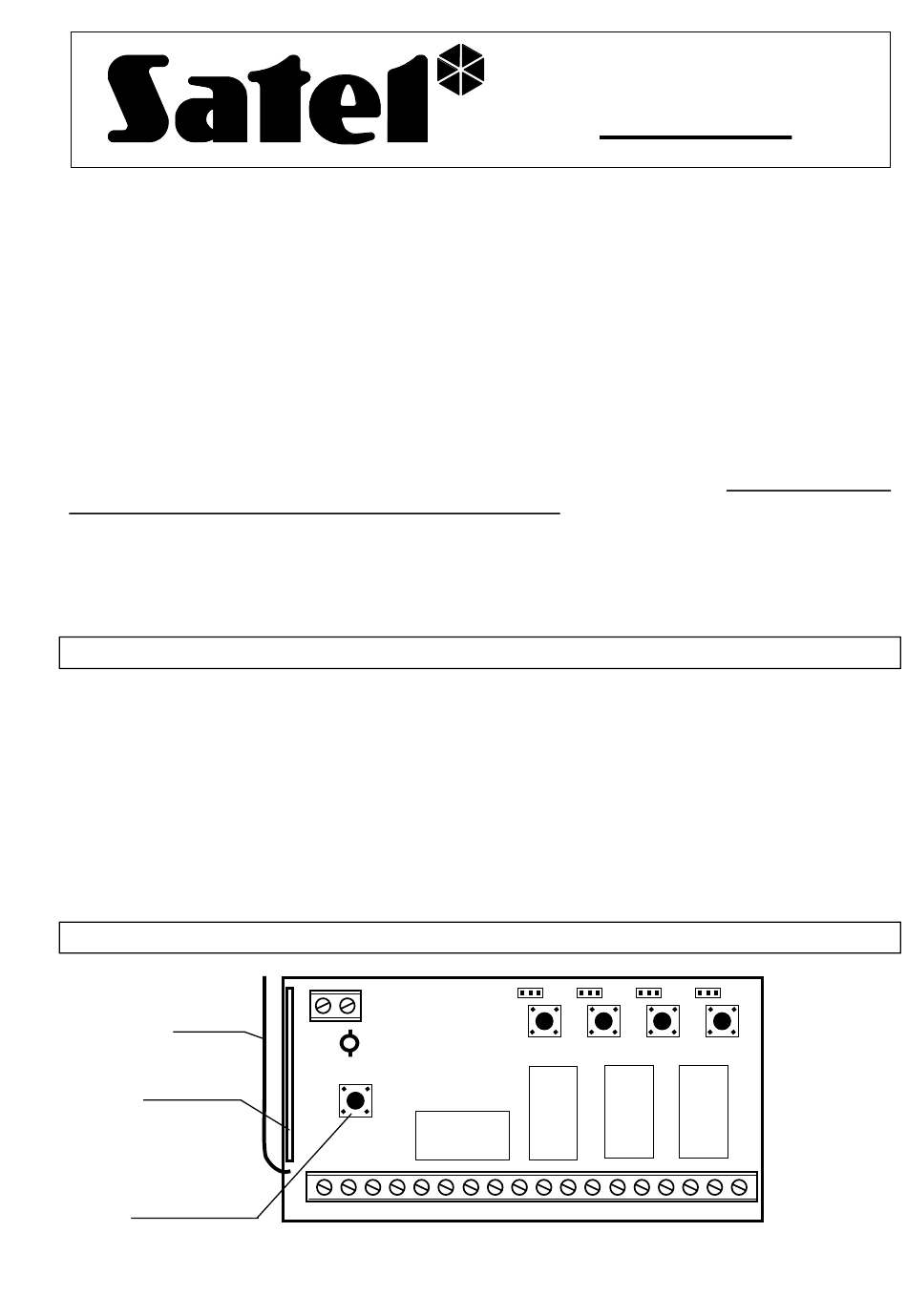

Figure 1. View of the four-channel controller board.
RADIO CONTROLLER
RX2/4K
ABC
PRG1
PRG2
-
-
1
Program Version 2.0
rx24k_e 06/04
®
code for
PRG3
PRG4
