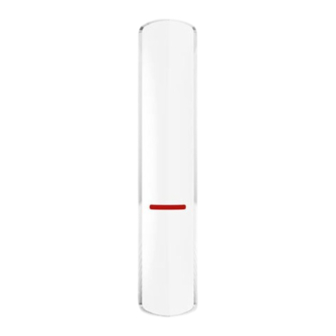

ABAX 2 wireless system controller
ACU-280
EN
Firmware version 6.06
acu-280_en 03/23
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACU-280 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel ACU-280

Summary of Contents for Satel ACU-280

  • Page 1 ABAX 2 wireless system controller ACU-280 Firmware version 6.06 acu-280_en 03/23 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
  • Page 2 13 August 2005). The device meets the technical regulations of the Eurasian Customs Union. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 Changes made to the firmware version 6.06 New device supported: ART-200 wireless radiator thermostat. Wireless devices Expander of wireless devices for the PERFECTA 64 M control Controller panel. operating mode...

  • Page 4: Table Of Contents

    Setting DIP switches ....................13 Connecting the wires ....................13 4.5.1 Expander of wireless devices for SATEL alarm control panels ......13 4.5.2 Module of wireless devices with Modbus RTU interface ........15 Powering on and starting the controller ..............15 ABAX 2 Soft program ......................
  • Page 5 8.3.2.5 Wireless radiator thermostat ................. 66 8.3.2.6 Radio signal repeater ................... 66 APT-200 keyfobs ......................66 Expander of wireless devices for SATEL alarm control panels ....... 67 9.1.1 Keyfobs in the INTEGRA system ................. 67 9.1.1.1 Keyfob management using the DLOADX program ........68 9.1.2 Keyfobs in the PERFECTA 64 M system .............
  • Page 6 ACU-280 SATEL 12 Battery replacement in ABAX 2 device ................74 13 Specifications ........................75 14 Manual update history ..................... 76...

  • Page 7: Introduction

    SATEL ACU-280 Introduction The ACU-280 controller enables expansion of the alarm system by adding the ABAX 2 wireless devices. It can work as: • expander of wireless devices for: – INTEGRA series control panels (firmware version 1.21 or newer), – PERFECTA 64 M control panel, –...

  • Page 8: Electronics Board

    ACU-280 SATEL Electronics board Fig. 1. Controller electronics board. DIP-switches. LED indicating the status of communication with the control panel: ON – no communication with the control panel, flashing – communication with the control panel OK. tamper switch. RS-232 port (TTL standard).

  • Page 9: Dip-Switches

    SATEL ACU-280 DIP-switches Using the DIP-switches, you can: • define the controller operating mode, • set the controller address (operating mode: expander of wireless devices for the INTEGRA series control panels), • enable / disable the support of the ARF-200 radio signal level tester that has not been registered to the controller.

  • Page 10: Enabling / Disabling The Support Of The Unregistered Arf-200 Tester

    ACU-280 SATEL Numerical values assigned to individual switches in ON position are presented in Table 2. The sum of numerical values assigned to switches 1-5 constitutes the address set in the device. The address must be different than that set in the other devices connected to the expander bus of the control panel.
  • Page 11 SATEL ACU-280 a “W” symbol. 48 registers in each group (e.g. 0x0000 – 0x002F) amount to the maximum number of devices that the controller can support. The first register in the group is assigned to the first device on the list of devices supported by the controller. The rest of the registers are assigned accordingly, each to a subsequent device on the list.
  • Page 12 ACU-280 SATEL Group of Value registers 0x0400 – 0x042F Detector operating mode [Act.] / / ART-200 thermostat operating mode (1024 – 1071) Registers can assume value: 0x0000 (0) – detector works in passive mode / thermostat works in “Economic temperature” mode, 0x0001 (1) –...

  • Page 13: Installation Of The Controller

    (such as electric motors). Installation of enclosure The description below applies to the enclosure in which the ACU-280 controller is sold. 1. Open the controller enclosure (Fig. 5). The enclosure opening tool, shown in the...
  • Page 14 ACU-280 SATEL 2. Place the enclosure base against the wall and mark location of the mounting holes. Set the enclosure so that the cable entry opening is situated at the bottom of the enclosure or at the base. 3. Drill holes for wall plugs (anchors) in the wall.

  • Page 15: Setting Dip Switches

    Protect the wiring against contact with sharp edges or else they can damage the insulation of cables. 4.5.1 Expander of wireless devices for SATEL alarm control panels Depending on the alarm system in which the controller is to operate: INTEGRA: connect the CKM, DTM, CKE, DTE and COM terminals to the corresponding...
  • Page 16 ACU-280 SATEL Fig. 7. Method of connecting the controller to the INTEGRA series control panel. VERSA: connect the CKE, DTE and COM terminals to the corresponding terminals of the control panel communication bus (Fig. 8). Fig. 8. Method of connecting the controller to the VERSA series control panels.

  • Page 17: Module Of Wireless Devices With Modbus Rtu Interface

    Connect the COM terminals of all devices connected to the bus with an additional wire. The maximum number of “Slave” type devices (e.g. ACU-280) that can be connected to the bus is n = 247. = 100 Ω (± 10%);...

  • Page 18: Description Of The Program

    The program can also be used for diagnostics of the system, when the controller works as expander for a SATEL control panel. You can download the ABAX 2 Soft program from www.satel.pl website. Required program version: 1.03.006 (or newer). Description of the program 5.1.1 Menu bar in the program...

  • Page 19: Establishing Connection Between The Program And The Controller

    Establishing connection between the program and the controller 1. Connect the controller RS-232 (TTL) port with the computer port using the USB-RS converter offered by SATEL. 2. Select the computer COM port to be used for communication with the controller (see ““Connection”...
  • Page 20 ACU-280 SATEL Version – firmware version of the controller. Serial number – serial number of the controller. Communication period – define the time intervals at which wireless devices are to communicate with the controller. Periodical communication can take place every 12, 24 or 36 seconds.

  • Page 21: Devices

    SATEL ACU-280 If the port is enabled: • it is possible to integrate the controller with other systems (see „RS-485 bus” p. 8). The Modbus RTU protocol is used for communication. • control inputs are not supported. Parity – type of data transmission check. Default: „None”.

  • Page 22: Status

    ACU-280 SATEL Configuration – for some devices, you can configure additional settings (see “Programming devices using the ABAX 2 Soft program” p. 61). Temp.corr. – you can correct the temperature information sent by the device by up to ±3.5°C. ECO – if this option is enabled, periodical communication with the device takes place every 3 minutes.
  • Page 23 SATEL ACU-280 Devices status Name – blank field. Type – device type. If the device takes up more than 1 position on the list, the “^” character is displayed in successive positions. S/N – serial number of the device. Act. –...

  • Page 24: Graphs

    ACU-280 SATEL Receiv. – the [black] icon indicates that the controller has just received a transmission from the device. Buttons click to clear trouble memory / restart the process of device firmware update. click to start the test mode in the ABAX 2 system.
  • Page 25 SATEL ACU-280 Fig. 18. ABAX 2 Soft program: “Comm. history” tab. Fig. 19. A segment of graph showing communication history. Legend to Fig. 19: dark-green – level of the radio signal received by the device from the controller. light-green – level of the radio signal received from the device by the controller.

  • Page 26: Keyfobs

    ACU-280 SATEL Keyfobs No. – number of the keyfob on the list. Name – individual keyfob name (up to 16 characters). You can enter a name that identifies the keyfob user. S/N – serial number of the keyfob. Keyfob buttons – do not configure.

  • Page 27: Wireless Devices Supported By The Controller

    SATEL ACU-280 Batt. – information about battery status: [green] – battery OK, [yellow] – low battery, [gray] – low battery memory. RSSI – level of the radio signal received from the keyfob by the controller. Batt.volt. – value of the battery voltage.

  • Page 28: Keypads

    ACU-280 SATEL ARD-200 - reorientation detector, ATD-200 - temperature detector, AVD-200 - shock detector and magnetic contact, ATX-220 - hardwired zone expander: 2 x NC, ATX-230 - hardwired zone expander: NC and roller shutter. Sirens ASP-200 - wireless outdoor siren.

  • Page 29: Registering Devices To The Controller

    SATEL ACU-280 Registering devices to the controller The ABAX 2 wireless devices must be registered to the controller (only the ARF-200 tester can be supported when unregistered – see: “Enabling / disabling the support of the unregistered ARF-200 tester” p. 8).
  • Page 30 ACU-280 SATEL wireless devices, although 8 positions are actually taken up on the list of wireless devices (see: Table 4). In such a case, it is recommended that the last devices be removed from the list and then added to the system again, so as to fill up the gap in the list and reduce the number of zones reserved for wireless devices.

  • Page 31: Adding New Wireless Devices

    SATEL ACU-280 INTEGRA / INTEGRA Plus ACU-280 zones outputs list of devices device device ASP-200 siren 17 ASP-200 siren 17 ASP-200 siren 18 ASP-200 siren 18 ASP-200 siren 19 unused/unavailable APD-200 detector 19 APD-200 detector 20 unused/unavailable APD-200 detector 20 APD-200 detector...
  • Page 32 ACU-280 SATEL 6. A message will confirm that the device has been added (unless you have entered an invalid serial number, of which the message will inform you). 6.1. Device type will be displayed. For the AXD-200 multipurpose detector, you can select the device type.

  • Page 33: Removing Wireless Devices

    SATEL ACU-280 To the outputs, the device is assigned automatically (to the first unoccupied outputs from the pool reserved for the controller). 1. Start the “New device” function. 2. When the “Device serial number:” is displayed, enter the serial number of the device being added.

  • Page 34: Expander For The Perfecta 64 M Control Panel

    ACU-280 SATEL 3. Use the  and  keys to select the zone to which the device you want to remove is assigned. 4. Press 5. A prompt will be displayed asking you whether to remove the device (type and serial number of the device will be displayed).

  • Page 35: Adding New Wireless Devices

    SATEL ACU-280 PERFECTA 64 M ACU-220 zones outputs list of devices device device APD-200 detector unused/unavailable APD-200 detector 10 APD-200 detector unused/unavailable APD-200 detector unused/unavailable AMD-200 detector 11 AMD-200 detector unused/unavailable AMD-200 detector 12 AMD-200 detector 13 AMD-201 detector unused/unavailable...
  • Page 36 ACU-280 SATEL Adding other wireless device You can assign detectors, sirens and other wireless devices to zones 9-56. When adding a device, you will select the number of zone to which the device will be assigned. If the device occupies more than one position on the list of devices, i.e. more than one zone, additional zones will be assigned automatically (these will be zones following the selected one).

  • Page 37: Removing Wireless Devices

    SATEL ACU-280 7.1.2.2 Removing wireless devices Removing a wireless keypad 1. Click the “Hardware” tab. 2. Click the wireless keypad you want to remove. 3. Click . The “Device deleting” window will be displayed. 4. Click “Delete”. The „Device deleting” window will close.
  • Page 38 ACU-280 SATEL DLOADX program You can add a wireless device in the “VERSA – Structure” window, “Hardware” tab, after clicking the name of the controller on the device list, and then on the “Zones/Outputs” tab. 1. Click the “Read” button. The data related to wireless devices will be read from the controller (these data are not read after clicking the button in the main menu).

  • Page 39: Removing Wireless Devices

    SATEL ACU-280 6. Depending on the device: – if the device takes up only 1 zone or you cannot select how many positions the device is to occupy on the device list – press the key 1. – if you can select whether the device will take up one or two positions (channels) on the list of devices, a special message will inform you about it –...

  • Page 40: Adding New Wireless Devices

    ACU-280 SATEL 7.1.4.1 Adding new wireless devices You can add a wireless device in the “Devices” tab. 1. Click . Data on wireless devices will be read from the controller. 2. Click 3. The “Adding devices” window will be displayed.

  • Page 41: Programming The Abax 2 System

    SATEL ACU-280 Programming the ABAX 2 system Expander for the INTEGRA / VERSA series control panels To configure the wireless system settings you can use the DLOADX program or LCD keypad. For description of the DLOADX program and LCD keypads, refer to the control panel manuals.
  • Page 42 ACU-280 SATEL Name – individual name of device (up to 16 characters). Tamper signaled in partition [Tamper in part.] – partition where alarm will be generated in the event of module tamper. No auto-reset after three module tamper alarms [No autorst.3t.] – if this option is enabled, each device tamper will generate alarm.

  • Page 43: Functions

    SATEL ACU-280 on the keypad that was used to enter the code). If the option is disabled, the battery can only be replaced by the users who have access to the “Replace bat.” function in the “0.Service” submenu. 8.1.2 Functions Test mode –...
  • Page 44 ACU-280 SATEL AMD-100 (AMD-200) / AMD-101 (AMD-201) – wireless magnetic contact. Do not configure the detector settings (the AMD-200 / AMD-201 detector does not have two reed switches). AMD-102 (AMD-202) – wireless magnetic contact with input for roller shutter detector: ...

  • Page 45: Programming Devices Using The Dloadx Program

    SATEL ACU-280  temperature,  tolerance. ATX-230 – hardwired zone expander: NC and roller shutter. You can configure parameters of roller shutter input [second zone]:  number of pulses after which the roller shutter input will generate alarm,  time period during which the defined number of pulses must occur for the roller shutter input to generate alarm.
  • Page 46 ACU-280 SATEL • enter the ARU-200 repeater number in the list of wireless devices, if the device is to communicate to the controller via the repeater (the repeater takes up two positions on the list of devices – enter the number of the first of them).
  • Page 47 SATEL ACU-280 APMD-150 (APMD-250) Enter 3 digits: 1st digit – sensitivity of PIR sensor: from 1 to 4 (1 – minimum; 4 – maximum). 2nd digit – sensitivity of microwave sensor: from 1 to 8 (1 – minimum; 8 – maximum).
  • Page 48 ACU-280 SATEL 2nd digit – counting time: 0 (30 seconds), 1 (120 seconds), 2 (240 seconds) or 3 (unlimited time). AVD-100 (AVD-200) Magnetic contact – do not configure. Shock detector – enter 2 digits: 1st digit – sensitivity: from 1 to 8 (1 – minimum; 8 – maximum).

  • Page 49: Programming Devices Using The Lcd Keypad

    SATEL ACU-280 8.1.3.2 Programming devices using the LCD keypad INTEGRA To configure devices, use the functions: “Use ARU-100”, “Active mode”, “Settings”, “Filter” and “ECO” (service mode “Structure” “Hardware” “Expanders” “Settings” [controller name]). Having started the function, use the  and  keys to select the zone to which the...
  • Page 50 ACU-280 SATEL AMD-102 (AMD-202) For the magnetic contact: 1. Enter a number from the 0 to 50 range to define the rules of device presence control. 2. Press 3. Define whether the detector is to be always active by pressing any number key ( – no, –...
  • Page 51 SATEL ACU-280 3. Define whether the detector is to be always active by pressing any number key ( – no, – yes). 4. Press 5. Enter a digit from the 1 to 3 range to define sensitivity (1 – low, 2 – medium, 3 – high).
  • Page 52 ACU-280 SATEL 5. Press any numeric key to define whether the detector is to send out alarm to other ASD-250 detectors ( – no, – yes). 6. Press AVD-100 (AVD-200) For the magnetic contact: 1. Enter a number from the 0 to 50 range to define the rules of device presence control.

  • Page 53: Specific Character Of The Operation Of Wireless Devices

    SATEL ACU-280 3. Use the  and  keys to define the way of control (“inactive” – only remote control; “interim control” – remote or manual control; “combined control” – remote or manual control, but with option to manually block the remote control).

  • Page 54: Wireless Expanders Of Hardwired Zones And Outputs

    ACU-280 SATEL The zones to which the wireless siren is assigned are activated if the signaling is triggered (select the appropriate zone type). If the siren tamper is to generate tamper alarm, program the zone as 2EOL/NC or 2EOL/NO. The tamper information is sent immediately, and the signaling state information – during periodical communication.

  • Page 55: Radio Signal Repeater

    SATEL ACU-280 operating mode the thermostat can only be controlled manually. If this output is turned off, the thermostat will operate as defined by the “120. Thermostat” type output settings. If the “Edition in ART-200” option is disabled in the “120. Thermostat” type output settings, you will not be able to control the thermostat manually (the thermostat keys will be disabled).

  • Page 56: Wireless Devices

    ACU-280 SATEL Some information and commands need to be sent immediately. Therefore, additional communication takes place when the device reports tamper, when the detector reports alarm, etc. Fig. 27. PERFECTA Soft program: controller settings in the PERFECTA 64 M. No jamming detection – if this option is enabled, the controller will not detect radio communication jamming.

  • Page 57: Programming Devices In The Perfecta Soft Program

    SATEL ACU-280 Alw.act. – the option is available for most of the wireless detectors. If it is enabled, the detector is permanently switched over to the active mode. The battery life time in the detectors switched permanently into the active mode is shorter than in those which are periodically switched to the passive mode.
  • Page 58 ACU-280 SATEL ADD-200 – wireless outdoor dusk and temperature detector. For the dusk detector you can configure: Sensitivity – detection sensitivity. You can select a number from 1 to 16 (1 – minimum; 16 – maximum). For the temperature detector you can configure the temperature threshold settings: Temperature threshold –...
  • Page 59 SATEL ACU-280 PIR – alarm after motion is detected by PIR sensor, MW – alarm after motion is detected by microwave sensor. ARD-200 – wireless reorientation detector. Sensitivity – detection sensitivity. You can select a number from 1 to 16 (1 – minimum;...

  • Page 60: Specific Character Of The Wireless Devices Operation

    ACU-280 SATEL Two sound frequencies (1450 Hz/2000 Hz) alternating within 1 second. Sound with rising frequency (from 1450 Hz to 2000 Hz) within 1 second. Sound with falling frequency (from 2000 Hz to 1450 Hz) within 1 second. Table 12. Types of acoustic signaling available for the ASP-215 siren.

  • Page 61: Wireless Detectors

    SATEL ACU-280 8.2.3.1 Wireless detectors The zone to which a wireless detector is assigned is activated when the detector reports alarm (select the appropriate zone type). If a detector tamper is to generate the tamper alarm, program the zone as 2EOL/NC or 2EOL/NO.

  • Page 62: Wireless Expanders Of Hardwired Zones And Outputs

    If communication with the controller is lost, all previously activated outputs will be deactivated after 20 communication periods. If the ACX-220 expander is powered from a SATEL power supply connected to the APS connector, the low battery information provided by the control panel means: first zone –...

  • Page 63: Wireless Radiator Thermostat

    SATEL ACU-280 8.2.3.5 Wireless radiator thermostat The thermostat operates as defined by the settings of the selected control panel thermostat (see the control panel programming manual). Select the controlling thermostat while programming the ART-200 thermostat settings. When the controlling thermostat’s first temperature threshold (temperature T1) is active, the ART-200 thermostat operates in the “Economy temperature”...
  • Page 64 ACU-280 SATEL to 140 ms, every 20 ms; above 140 ms, only some values are available: 400 ms, 500 ms, 700 ms, etc. every 200 ms). The EN 50131-3 standard requires that zones must react to signals lasting more than 400 ms.
  • Page 65 SATEL ACU-280 APMD-250 – wireless dual technology detector. You can configure: PIR sensitivity – select a number from a range of 1 to 4 (1 – minimum; 4 – maximum). MW sensitivity – select a number from a range of 1 to 8 (1 – minimum; 8 – maximum).

  • Page 66: Specific Character Of The Operation Of Wireless Devices

    ACU-280 SATEL Two sound frequencies (1450 Hz/2000 Hz) alternating within 1 second. Sound with rising frequency (from 1450 Hz to 2000 Hz) within 1 second. Sound with smoothly rising and falling frequency (1450 Hz – 2000 Hz – 1450 Hz) within 1 second.

  • Page 67: Wireless Sirens

    SATEL ACU-280 Switching the detector from passive mode to active and vice versa takes place during periodical communication. It results in a delay whose duration depends on the frequency of periodical communication (with the “ECO” option enabled, delay can be up to 3 minutes).

  • Page 68: Smart Plug / Wireless 230 Vac Controller

    0x0001 (1) in the event of a battery trouble. APT-200 keyfobs If the controller works as expander of wireless devices for SATEL alarm control panels, the number of supported keyfobs depends on the number of control panel users. When the controller works as module of wireless devices with Modbus RTU interface, it can support up to 256 keyfobs.

  • Page 69: Expander Of Wireless Devices For Satel Alarm Control Panels

    SATEL ACU-280 Expander of wireless devices for SATEL alarm control panels The data related to keyfobs are stored in the controller. After the controller containing keyfob data is connected to the control panel, keyfobs will be automatically assigned to the existing users.

  • Page 70: Keyfob Management Using The Dloadx Program

    ACU-280 SATEL You can indicate up to 8 outputs in the system which will be used to inform the keyfob users (“Keyfobs ABAX” window in the DLOADX program or “ABAX confirmat.” function in the LCD-keypad (service mode “Structure” “Hardware” “Expanders” “ABAX confirmat.”)).

  • Page 71: Keyfobs In The Perfecta 64 M System

    SATEL ACU-280 2. Click the “Delete” button. 3. The “Confirm” window will open. 4. Click the “Yes” button. 5. The “Confirm” window will close. 6. The keyfob serial number shown in the “S/N” column will be erased. 9.1.2 Keyfobs in the PERFECTA 64 M system After a keyfob has been added, its settings will be configured automatically, based on the default settings (see: “Default keyfob settings”...
  • Page 72 ACU-280 SATEL Serial number – serial number of the keyfob. Each keyfob has a unique serial number used for user authentication. Keyfob buttons – number of the function started on pressing the button. You can assign a different function to each keyfob button. Right-click the field to select a function from the list.

  • Page 73: Keyfobs In The Versa System

    SATEL ACU-280 4. Click the „Write” button to write the changes to the controller. Removing a keyfob 1. Click the field in the “Serial number” column next to the name of the user from whom you want to remove the keyfob.
  • Page 74 ACU-280 SATEL Fig. 30. DLOADX program: managing keyfobs in the VERSA system. Adding a keyfob Entering the serial number manually 1. Click the field in the “S/N” column next to the name of the user to whom you want to assign a keyfob.

  • Page 75: Module Of Wireless Devices With Modbus Rtu Interface

    Remember to save the controller settings to file before the firmware update. 1. Download the ACU-280 controller firmware update program from www.satel.pl. 2. Connect the RS-232 (TTL) port of the controller to the USB port of the computer. To make the connection, use the USB-RS converter, offered by SATEL.

  • Page 76: Updating The Firmware Of Abax 2 Wireless Devices

    ACU-280 SATEL 4. Click the button. 5. When the connection configuration window opens, select the computer COM port through which communication with the controller RS-232 (TTL) port is to take place. 6. When the prompt is displayed asking you whether to continue the firmware update, click “Yes”.
  • Page 77 SATEL ACU-280 The used batteries must not be discarded, but should be disposed of in accordance with the existing rules for environment protection. When the device indicates low battery, the battery must be replaced. When replacing the battery, wait about 1 minute between removing the old battery and installing the new one.
  • Page 78 ACU-280 SATEL 14 Manual update history Manual version Introduced changes • Section „Introduction” has been updated (p. 5). 02/20 • Section „Features” has been updated (p. 5). • Section „Electronics board” has been updated (p. 6). • Section „RS-485 bus” has been added (p. 8).
  • Page 79 SATEL ACU-280 • Information about required version of INTEGRA / INTEGRA Plus control panels 11/22 firmware has been updated (p. 5). • Section “DIP-switches” has been updated (p. 7). • Section “Enabling / disabling the support of the unregistered ARF-200 tester” has been added (p.
