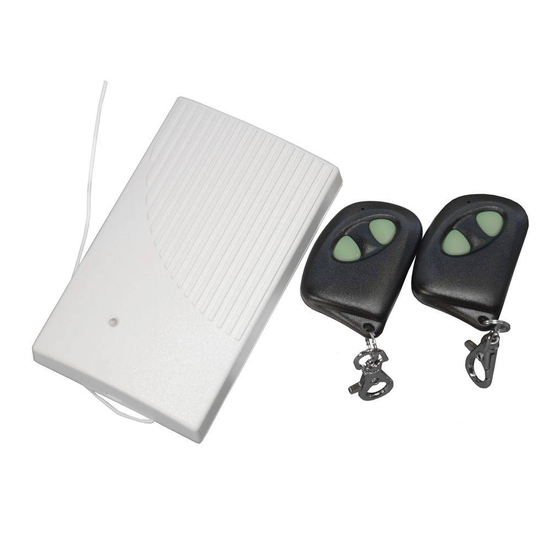

The RX-2K/RX-4K remote controller set enables electrical equipment to be remotely
controlled by means of radio transmitters (remote keyfobs). The remote controller set can
work with up to 340 remote keyfobs. The RX-2K/RX-4K only supports SATEL-
manufactured 433 MHz remote keyfobs.
Interaction of the RX-2K/RX-4K with security systems is facilitated by inputs which provide
information on the system status. They make it possible to easily organize signaling of
arming/disarming, as well as of alarm clearance.
The design is based on the components of Microchip Technology Inc. which use the
®
KEELOQ
code-hopping technology for transmission between the transmitter and the
receiver. It ensures both security of use and resistance to spurious control signals coming
from other devices.
1. Description of electronics board
Legend:
1 – receiver;
2 – LED indicator;
3 – programming buttons (PRG1 – channel 1; PRG2 – channel 2; PRG3 – channel 3; PRG4
– channel 4);
4 – pins to program the operating mode of relays (MODE1 – channel 1; MODE2 –
channel 2; MODE3 – channel 3; MODE4 – channel 4);
5 – antenna;
RADIO REMOTE CONTROLLER SET
®

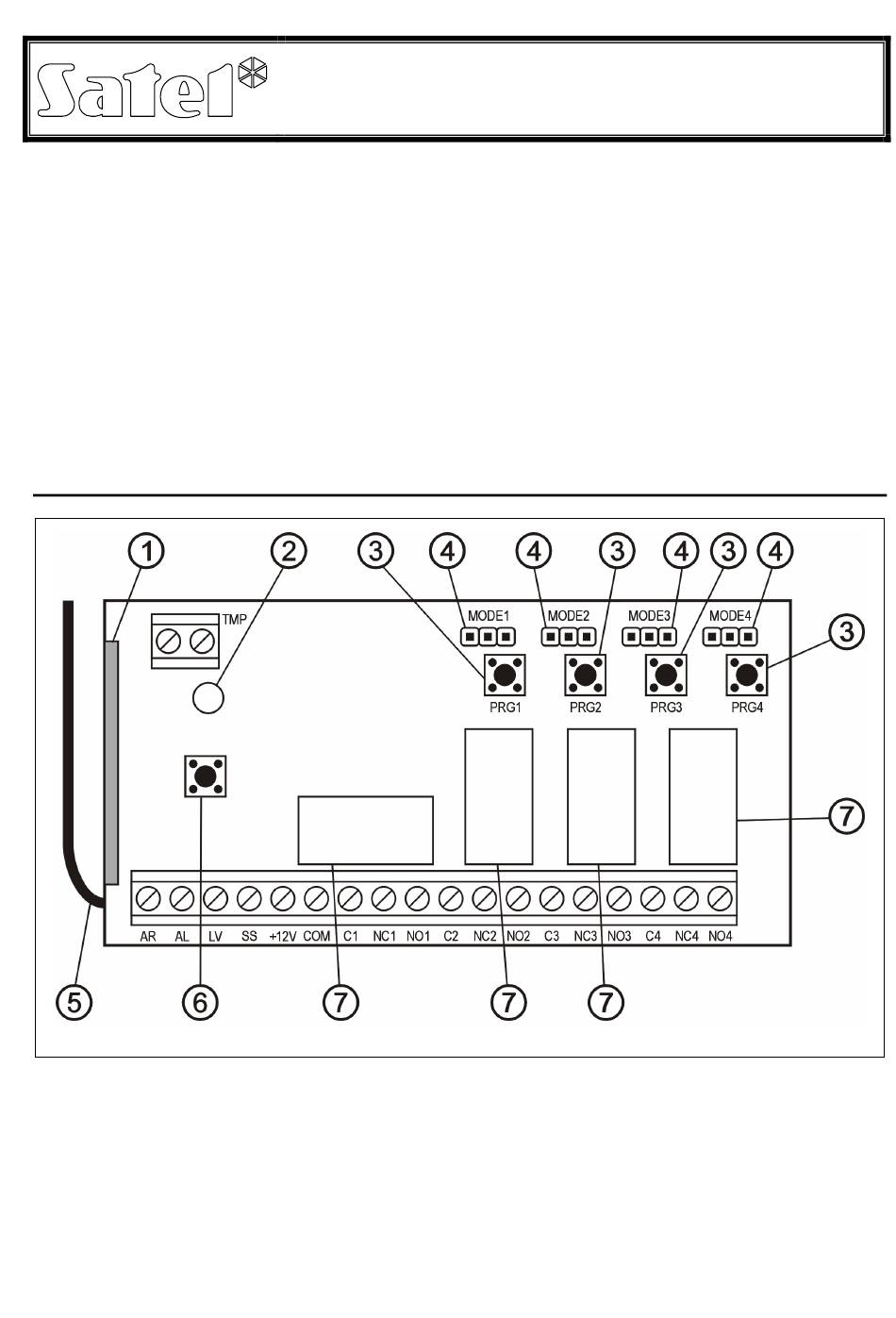

Figure 1. Schematic view of RX-4K receiver board.
RX-2K/RX-4K
rx24k_en 09/11
Advertisement
Related Manuals for Satel RX-2K
Summary of Contents for Satel RX-2K
- Page 1 340 remote keyfobs. The RX-2K/RX-4K only supports SATEL- manufactured 433 MHz remote keyfobs. Interaction of the RX-2K/RX-4K with security systems is facilitated by inputs which provide information on the system status. They make it possible to easily organize signaling of arming/disarming, as well as of alarm clearance.
-
Page 2: Installation
These electrostatic discharges should be removed prior to installation. Also, touching the receiver board components should be avoided in the process of installation. The RX-2K/RX-4K is mounted in a plastic housing. When closing the housing, be particularly careful so that the programming button is not pressed in by the cables. - Page 3 • Making any construction changes or unauthorized repairs is prohibited. This applies, in particular, to modification of assemblies and components. 3. Programming The RX-2K/RX-4K can be programmed by means of programming buttons or a computer with D 10 program installed. The D...
- Page 4 4. Start the computer programming mode in the receiver, following the procedure below: − press and hold down the PRG2 (RX-2K) or PRG4 (RX-4K) programming button until the LED changes for a while the color of its light to red;...
-
Page 5: Dload 10 Program
2 (RX-2K) or the channels 2, 3 and 4 (RX-4K). The channel 1 will be unavailable to it. The active buttons of the remote keyfob will be 1 (RX-2K) or 1, 2 and 3 (RX-4K). The others will be inactive. Shown in the table below are channels available in the remote keyfob, depending on which programming button was used to enter the remote keyfob. - Page 6 SATEL RX-2K/RX-4K Figure 4. Window for adding new remote keyfobs in the D 10 program. LOAD 7. Press the "Write transmitters" to save the entered changes. If the changes are not saved, the receiver will not be able to handle the new remote keyfobs.
- Page 7 RX-2K/RX-4K SATEL bistable mode monostable mode pulse mode jumper removed jumper on two pins, left- jumper on two pins, right- hand side hand side Figure 5. Example of setting the operating mode on pins – channel 1. 3.4.1 Programming monostable mode on-time By default, the monostable mode on-time is preprogrammed at 5 seconds.
- Page 8 SATEL RX-2K/RX-4K into the receiver memory by means of the PRG1 button. In order to arm/disarm the system, press and hold down the button No. 1 on the remote keyfob. To trigger the panic alarm, press the button No. 4. In order to avoid the risk of accidental alarm triggering, set a suitable sensitivity of the Z1 zone in the control panel (e.g.
-
Page 9: Specifications
Operating temperature range, receiver ..............-10 to +50 ºC Operating temperature range, transmitter (remote keyfob)........-20 to +55 ºC Housing dimensions ..................72x118x24 mm Type of remote keyfob battery, P-2 / P-4 ..............23 A 12 V Weight: RX-2K ..............139 g RX-4K ..............134 g... - Page 10 DECLARATION OF CONFORMITY Product: Manufacturer: SATEL sp. z o.o. 0681 RX-2K – remote controller set ul. Schuberta 79 RX-4K – remote controller set 80-172 Gdańsk, POLAND tel. (+48 58) 320-94-00 fax. (+48 58) 320-94-01 Product description: Radio remote controller set operating at 433 MHz with Keeloq code hopping system, equipped with 2 or 4 controlled outputs.
- Page 11 SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.eu...
