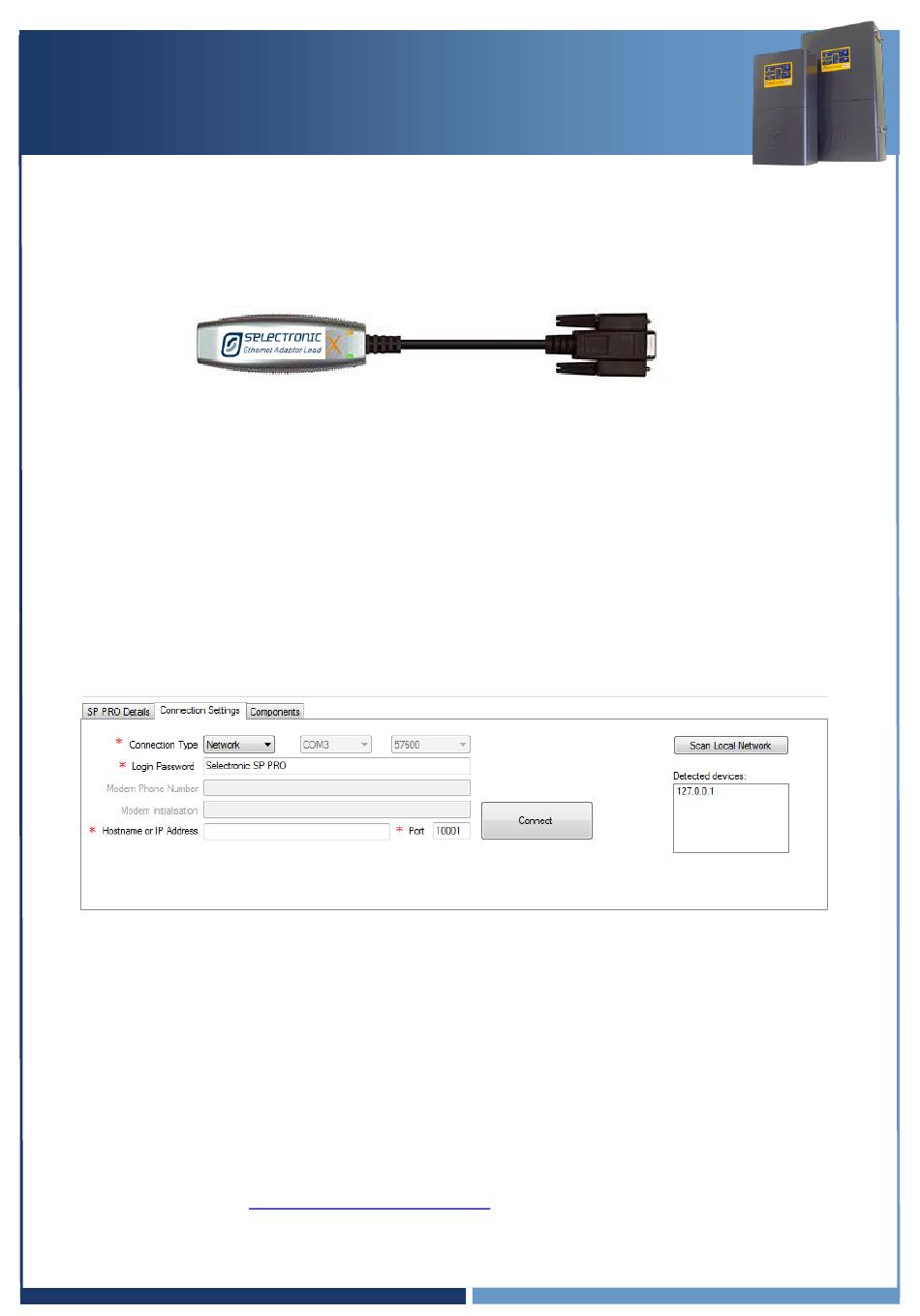

SP PRO Ethernet Adaptor Lead for LAN connection
Installation Notes
Unplug the USB lead from the SP PRO series II inverter then plug the Ethernet adaptor
lead into the DB9 connecter at the base of inverter. Screw in the thumb screw on each side of the DB9
plug. This will prevent the Ethernet adaptor lead from falling out.
Using the supplied network cable connect the other end of the Ethernet adaptor plug into your local
network. If the supplied cable is not long enough then any standard network cable may be used.
Connect this end
to network cable
C C
ONNECTING OMPUTER TO
1. Install SP LINK software found on the USB stick provided. (if not already installed). SP LINK must
be version 7.4 or greater.
2. Check that the computer is connected to the LAN
3. Run SP LINK and create a site file following the instructions in the SP LINK manual (found in the
"help" menu of SP LINK).
4. Click on "Connection Settings" under the "Site Information" tab and set Connection Type to
Network.
5. Enter 10001 in the "Port" settings then click "Scan Local Network" button to find the SP PRO
inverter's IP address. This will appear in the Detected devices box.
6. Double click on the found IP address and this will appear in the "Hostname or IP address" setting.
7. Click the "Connect" button to connect to the SP PRO inverter.

Useful Hints

1. If more than one IP address is detected then note all the IP addresses. Disconnect the Ethernet
Adaptor Lead from the network and perform another "Scan Local Network". The IP address that
does not appear is that of the SP PRO.
2. If the SP PRO has been disconnected from the network for a period of time then its IP address
may have changed and connection cannot be made. If this occurs then use "Scan Local Network"
to find the new IP address.
3. If you wish to make the SP PRO connection available anywhere on the internet then download
Technical note TN0028 from the web site and follow the instructions. Please note that this
document is only given as a guide and as all network configurations are different Selectronic is
unable to provide any further support.
For further information –
IN0031 Revision 01 (005079) – 3 of 3
