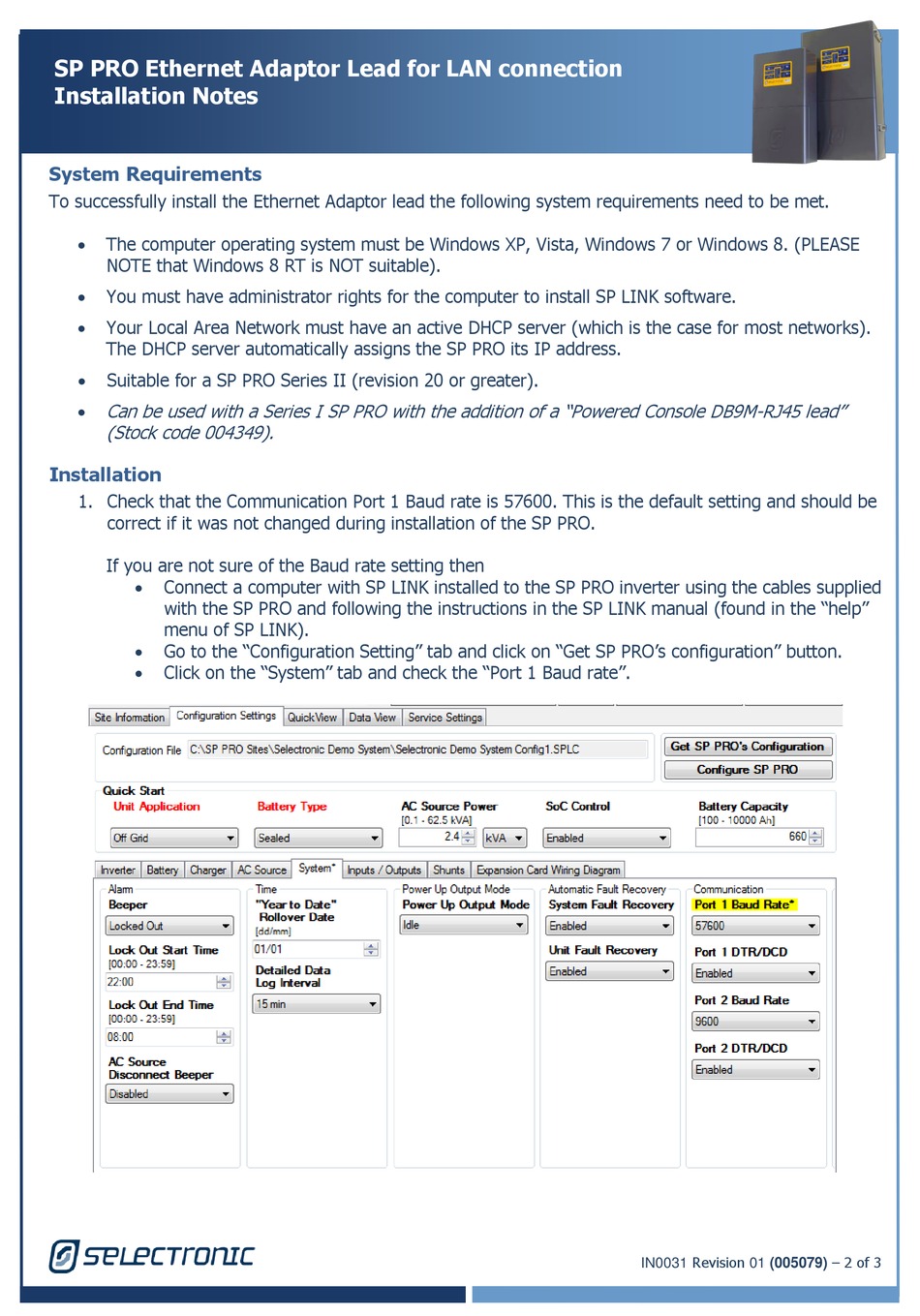

SP PRO Ethernet Adaptor Lead for LAN connection
Installation Notes

System Requirements

To successfully install the Ethernet Adaptor lead the following system requirements need to be met.
 The computer operating system must be Windows XP, Vista, Windows 7 or Windows 8. (PLEASE
NOTE that Windows 8 RT is NOT suitable).
 You must have administrator rights for the computer to install SP LINK software.
 Your Local Area Network must have an active DHCP server (which is the case for most networks).
The DHCP server automatically assigns the SP PRO its IP address.
 Suitable for a SP PRO Series II (revision 20 or greater).
Can be used with a Series I SP PRO with the addition of a "Powered Console DB9M-RJ45 lead"

(Stock code 004349).

Installation

1. Check that the Communication Port 1 Baud rate is 57600. This is the default setting and should be
correct if it was not changed during installation of the SP PRO.
If you are not sure of the Baud rate setting then

Connect a computer with SP LINK installed to the SP PRO inverter using the cables supplied
with the SP PRO and following the instructions in the SP LINK manual (found in the "help"
menu of SP LINK).
 Go to the "Configuration Setting" tab and click on "Get SP PRO's configuration" button.
 Click on the "System" tab and check the "Port 1 Baud rate".
IN0031 Revision 01 (005079) – 2 of 3
