SP PRO Ethernet Adaptor Lead for LAN connection
Installation Notes
SP PRO Ethernet Adaptor Lead for LAN connection

Introduction

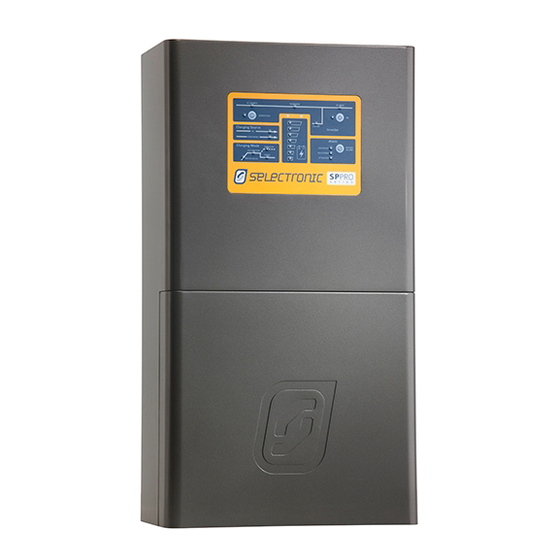

Connecting a SP PRO series II inverter to a local area network (LAN) requires an optional adaptor lead
and a simple configuration of SP LINK. Once connected the SP PRO can be accessed via
SP PLINK from any PC computer connected to the same LAN.
The adaptor lead is also suitable for connection to the SP PRO series I with the addition of a "Powered
Console DB9M-RJ45 lead" (Stock code 004349).
Attention
When using the Ethernet Adaptor lead connection both the USB and the COM1 connections are not
available. If a USB connection is required at the SP PRO inverter then first unplug the Ethernet adaptor
from the DB9 connector in the SP PRO, plug in the USB lead and connect to computer. When the USB
connection is concluded simply unplug the USB lead and reconnect the Ethernet lead. The SP PRO will
again be available on the LAN.
Overview

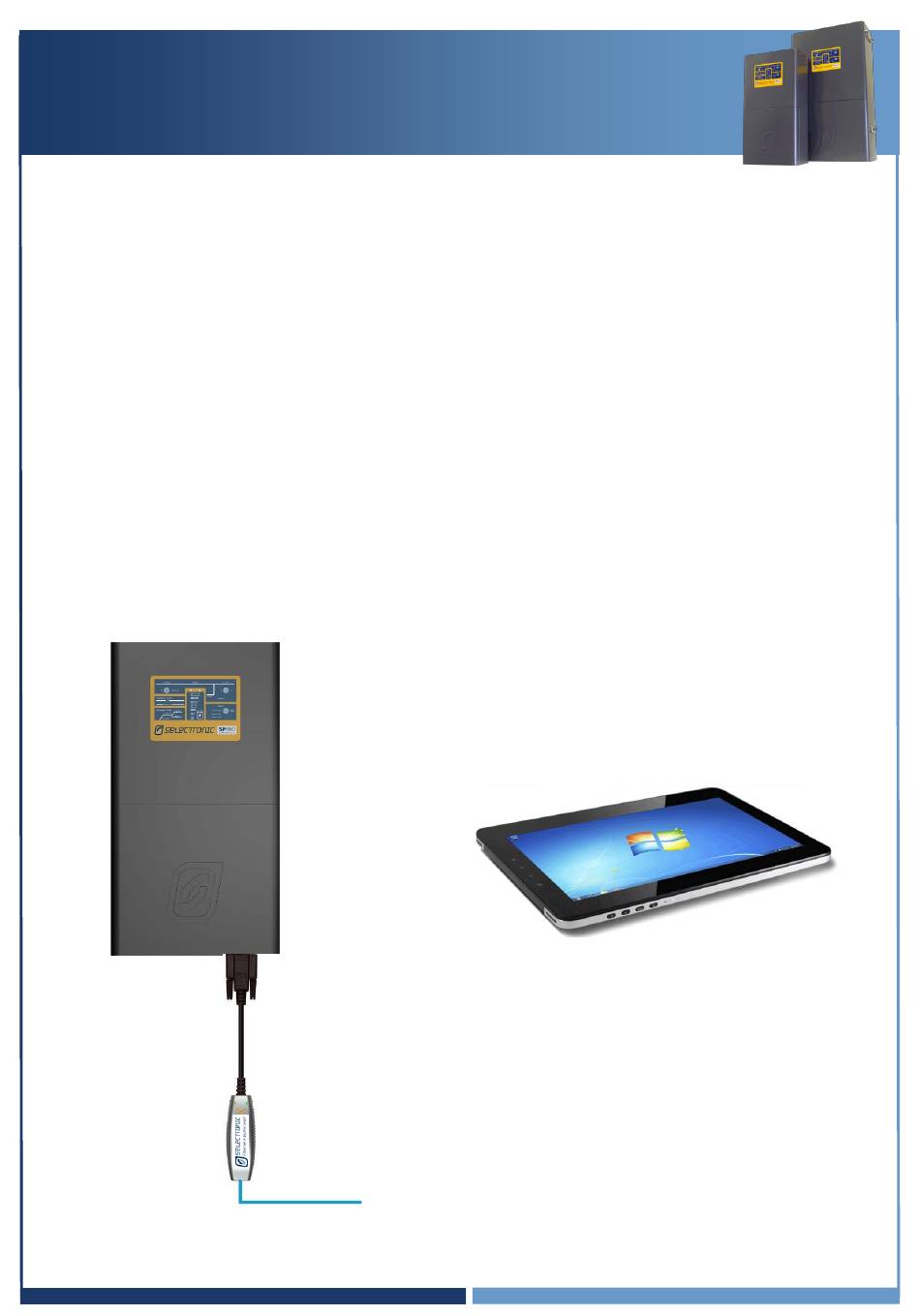

The diagram shows the configuration of the Ethernet adaptor lead.
Ethernet adaptor
lead plugged into
SP PRO
IN0031 Revision 01 (005079) – 1 of 3
Connect to LAN via Hub,
wireless router or wired
rounter using network cable
PC connected to the
LAN
POWER
PERFORMANCE
PASSION
