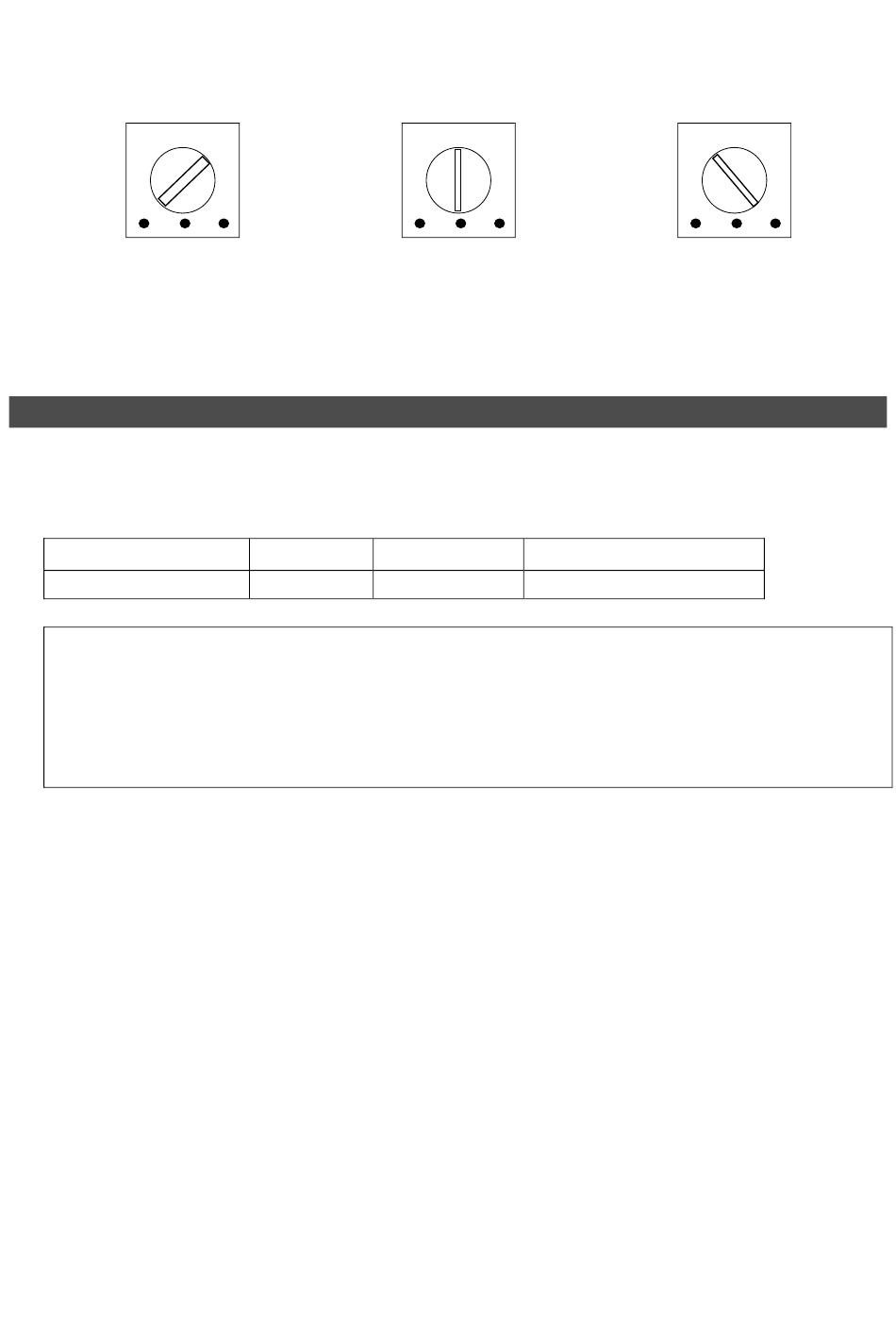

■Setting the terminator
Set PROFIBUS communication line terminator.
With Terminator (at shipping)
・When the product is connected to the terminal of PROFIBUS communication
line, be sure to set it to "with terminator".
Pressure setting and output monitoring
Pressure setting can be done by sending input data using 12bit as F.S. to the
electro-pneumatic regulator through the master PLC (e.g. entering a target value to
the output word data area).
Set Date
Output pressure
EX.) To set pressure at 0.3MPa by ITV2030(for 0.5MPa type)
(0.3MPa/0.5MPa)×4095＝2457（DEC）＝999(HEX)
Pressure of 0.3MPa is set by sending input data of "999" to the
electro-pneumatic regulator through the master PLC.
Without terminator
0000h 0FFFh
0%×F.S. 100%×F.S.
[(a／F.S.)×4095]
a
- 9 -
Without terminator
HEX
