Roger MCT82M-IO-CH Installation Manual

MCT82M-IO-CH MCT82M-IO-HR Installation Manual.doc
This document contains minimum information that is necessary for initial setup
and installation of the device. The detailed description of configuration
parameters and functionalities is specified in respective Operating Manual
available at www.roger.pl.
I
NTRODUCTION
The reader with card holder (MCT82M-IO-CH) and the entry reader (MCT82M-
IO-HR) are designed to operate mainly as hotel devices in RACS 5 and they are
peripheral devices connected to RS485 bus of MC16 access controller. Factory
new reader is configured with default settings including ID=100 address. Before
connecting to controller, the reader should be assigned with unoccupied address
in range of 100-115. Programming of other parameters depends on the individual
requirements and is not obligatory. Addressing of the reader can be done from
computer by means of RogerVDM program or manually. Configuration of the
reader with RogerVDM requires RUD-1 interface.
C R
ONFIGURATION WITH OGER

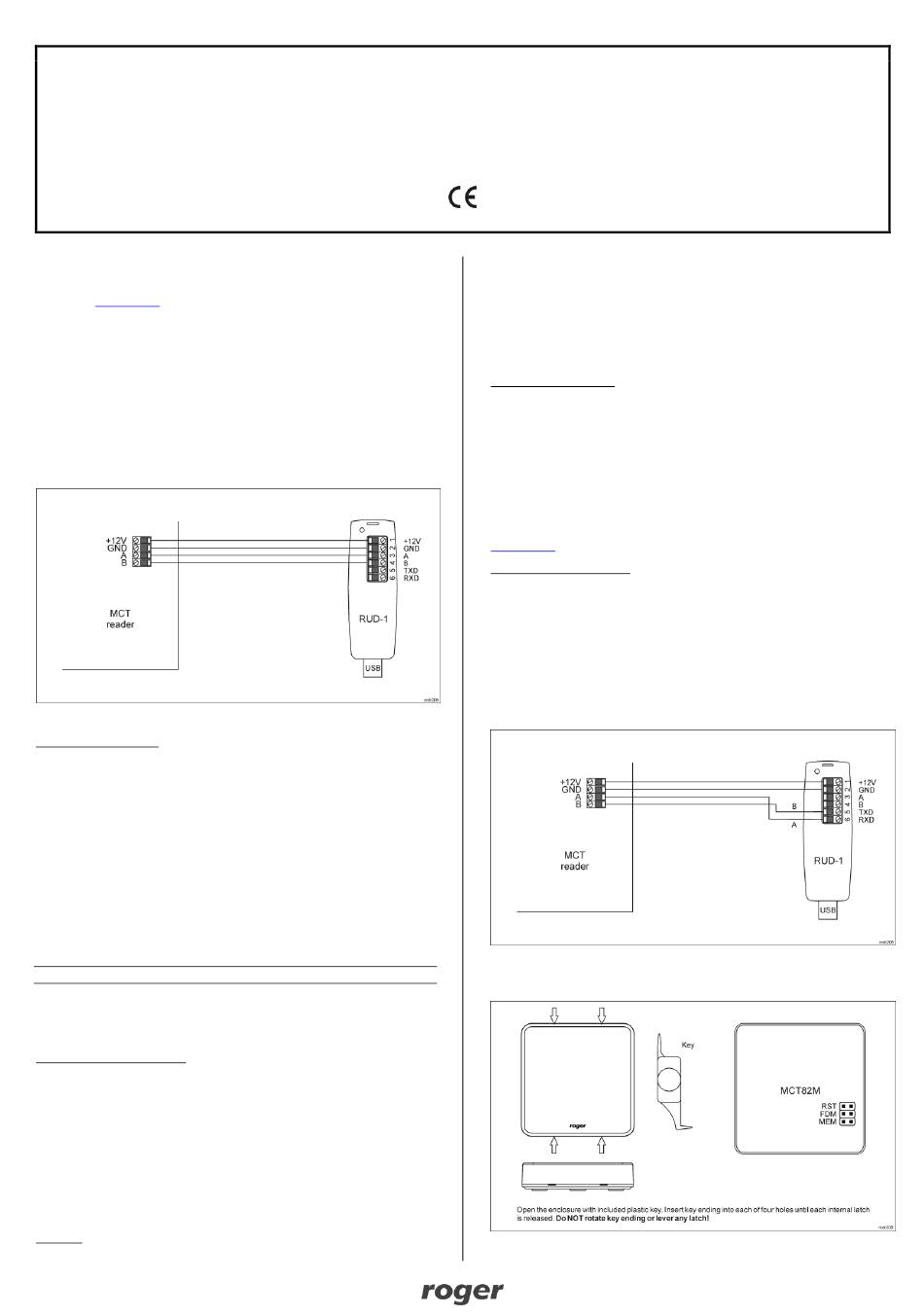

Fig. 1 Connection of MCT reader to RUD-1 interface for configuration
Programming procedure:
1. Connect the reader to RUD-1 interface (fig. 1) and connect the RUD-1 to
computer's USB port.
2. Place jumper on MEM contacts (fig. 3).
3. Restart the reader (switch power supply off and on or short RST contacts for
a moment) and LED light line or green LED indicator will pulsate.
4. Start RogerVDM program, select MCT device, firmware version, RS485
communication channel and serial port with RUD-1 interface.
5. Click Connect, the program will establish connection and will automatically
display Configuration tab.
6. Enter unoccupied RS485 address in range of 100-115 and other settings
according to requirements of specific installation.
7. Click Send to Device to update the configuration of reader.
8. Optionally make a backup by clicking Send to File... and saving settings to
file on disk.
9. Remove jumper from MEM contacts and disconnect reader from RUD-1
interface.
Note: Do not read any cards when reader is configured with RogerVDM.
M
ANUAL ADDRESSING
Manual addressing procedure enables configuration of new RS485 address with
all other settings unchanged.
Manual addressing procedure:
1. Remove all connections from A and B lines.
2. Place jumper on MEM contacts (fig. 3).
3. Restart the reader (switch power supply off and on or short RST contacts for
a moment) and LED light line or green LED indicator will pulsate.
4. Enter 3 digits of RS485 address in range of 100-115 with any MIFARE card.
5. Remove jumper from MEM contacts and restart the reader.
Readers without keypad can be addressed with multiple card readings where the
N number of readings emulates digit of the address. Three series of readings
with any MIFARE proximity card are necessary to set the address. After each
series wait for two beeps and proceed with the next digit. Zero digit is emulated
with 10 readings.
Example:
Programming of ID=101 address with card readings:
Roger Access Control System
MCT82M-IO-CH / MCT82M-IO-HR Installation Manual
Firmware version: 1.1.10 and newer
Document version: Rev. B
VDM
PROGRAM
1. Read card 1 time and wait for two beeps.
2. Read card 10 times and wait for two beeps.
3. Read card 1 time and wait for two beeps.
4. Wait till reader is restarted with the new address and other default settings.
M
EMORY RESET PROCEDURE
Memory reset procedure resets all settings to factory default ones including
ID=100 address.
Memory reset procedure:
1. Remove all connections from A and B lines.
2. Place jumper on MEM contacts (fig. 3).
3. Restart the reader (switch power supply off and on or short RST contacts for
a moment) and LED light line or green LED indicator will pulsate.
4. Read any MIFARE card 11 times.
5. Wait till reader confirms reset with long acoustic signal.
6. Remove jumper from MEM contacts and restart the reader.
F
IRMWARE UPDATE
The update requires connection of reader to computer with RUD-1 interface
(fig. 2) and starting RogerVDM software. The latest firmware file is available at
www.roger.pl.
Firmware update procedure:
1. Connect the reader to RUD-1 interface (fig. 1) and connect the RUD-1 to
computer's USB port.
2. Place jumper on FDM contacts (fig. 3).
3. Restart the reader (switch power supply off and on or short RST contacts for
a moment).
4. Start RogerVDM program and in the top menu select Tools and then Update
firmware.
5. In the opened window select device type, serial port with RUD-1 interface
and path to firmware file (*.hex).
6. Click Update to start firmware upload with progress bar in the bottom.
7. When the update is finished, remove FDM jumper and restart the reader.
Fig. 2 Connection of MCT reader to RUD-1 interface for firmware update
A
PPENDIX
Fig. 3 MCT82 enclosure opening and location of service contacts
