Roger MCT80M-BLE Installation Manual

MCT80M-BLE Installation Manual.doc
This document contains minimum information that is necessary for initial setup
and installation of the device. The detailed description of configuration
parameters and functionalities is specified in respective Operating Manual
available at www.roger.pl.
I
NTRODUCTION
The MCT terminal is designed to operate in RACS 5 system as peripheral device
connected to RS485 bus of MC16 access controller. Factory new terminal is
configured with default settings including ID=100 address. Before connecting to
controller, the terminal should be assigned with unoccupied address in range of
100-115. Programming of other parameters depends on the individual
requirements and is not obligatory. Addressing of the terminal can be done from
computer by means of RogerVDM program or manually. Configuration of the
terminal with RogerVDM requires RUD-1 interface.
C R
ONFIGURATION WITH OGER

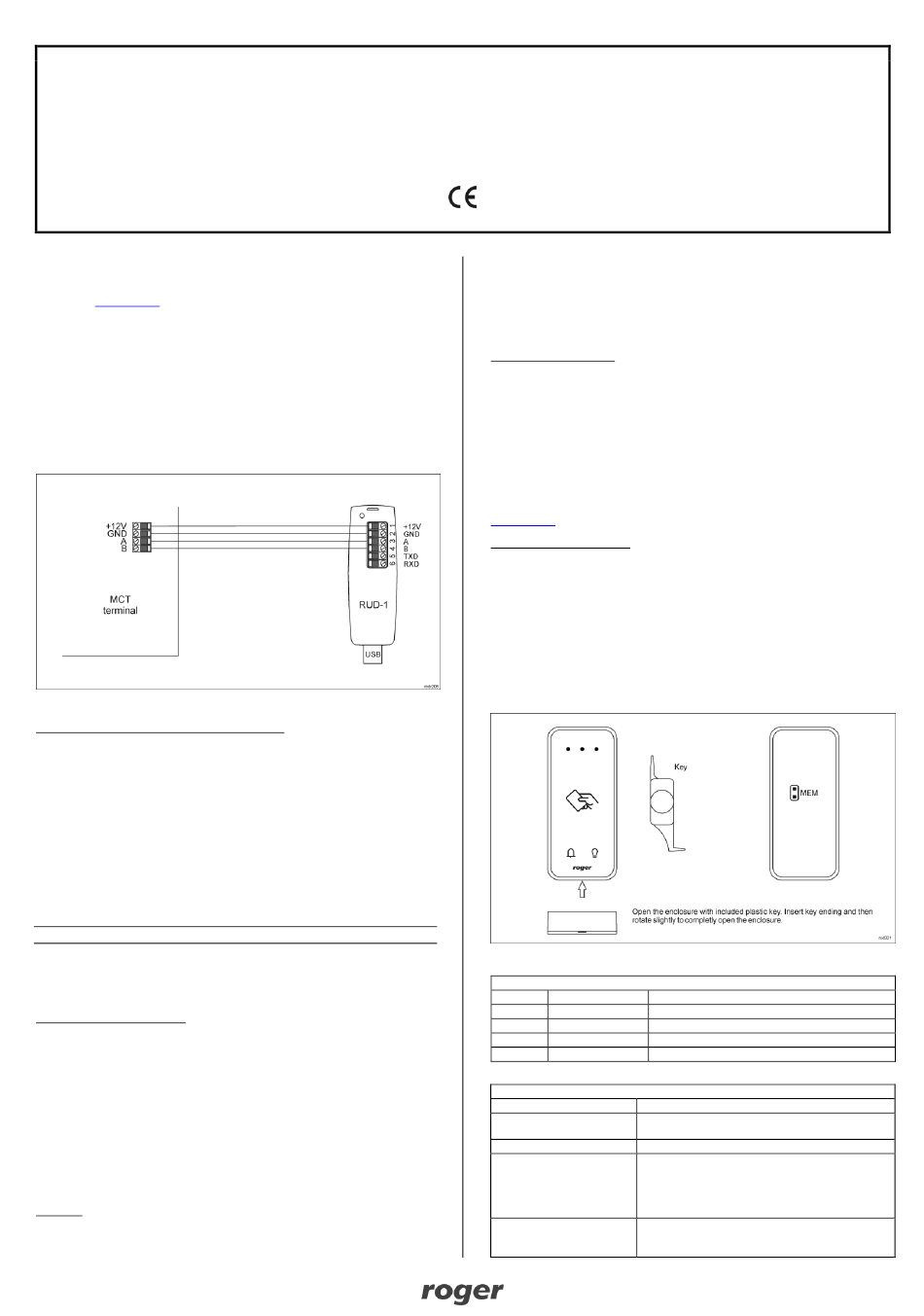

Fig. 1 Connection of MCT terminal to RUD-1 interface
Programming procedure with RogerVDM software:
1. Place jumper on MEM contacts (fig. 2).
2. Connect the device to RUD-1 interface (fig. 1) and connect the RUD-1 to
computer's USB port. Orange LED SYSTEM will pulsate.
3. Start RogerVDM program, select MCT device, v1.0 firmware version, RS485
communication channel and serial port with RUD-1 interface.
4. Click Connect, the program will establish connection and will automatically
display Configuration tab.
5. Enter unoccupied RS485 address in range of 100-115 and other settings
according to requirements of specific installation.
6. Click Send to Device to update the configuration of device.
7. Optionally make a backup by clicking Send to File... and saving settings to
file on disk.
8. Remove jumper from MEM contacts and disconnect device from RUD-1
interface.
Note: Do not read any cards when the device is configured with RogerVDM.
M
ANUAL ADDRESSING
Manual addressing procedure enables configuration of new RS485 address with
all other settings unchanged.
Manual addressing procedure:
1. Remove all connections from A and B lines.
2. Place jumper on MEM contacts (fig. 2).
3. Restart the device (switch power supply off and on) and orange LED
SYSTEM will pulsate.
4. Enter 3 digits of RS485 address in range of 100-115 with any MIFARE card.
5. Wait till device starts to emit continuous sound.
6. Remove jumper from MEM contacts and restart the device.
Terminals without keypad can be addressed with multiple card readings where
the N number of readings emulates digit of the address. Three series of readings
with any MIFARE proximity card are necessary to set the address. After each
series wait for two beeps and proceed with the next digit. Zero digit is emulated
with 10 readings.
Example:
Programming of ID=101 address with card readings:
1. Read card 1 time and wait for two beeps.
Roger Access Control System
MCT80M-BLE Installation Manual
Firmware version: 1.0.2.97 and newer
Document version: Rev. A
VDM
PROGRAM
2. Read card 10 times and wait for two beeps.
3. Read card 1 time and wait for two beeps.
M
EMORY RESET PROCEDURE
Memory reset procedure resets all settings to factory default ones including
ID=100 address.

Memory reset procedure:

1. Remove all connections from A and B lines.
2. Place jumper on MEM contacts (fig. 2).
3. Restart the device (switch power supply off and on) and orange LED
SYSTEM will pulsate.
4. Read any MIFARE card 11 times.
5. Wait till device confirms reset with continuous sound.
6. Remove jumper from MEM contacts and restart the device.
F
IRMWARE UPDATE
The update requires connection of reader to computer with RUD-1 interface
(fig. 1) and starting RogerVDM software. The latest firmware file is available at
www.roger.pl.
Firmware update procedure:
1. Place jumper on MEM contacts (fig. 2).
2. Connect the reader to RUD-1 interface (fig. 1) and connect the RUD-1 to
computer's USB port. Orange LED SYSTEM will pulsate.
3. Start RogerVDM program and in the top menu select Tools and then Update
firmware.
4. In the opened window select device type, serial port with RUD-1 interface
and paths to main firmware file (*.frg) and additional firmware file (*.cyacd).
5. Click Update to start firmware upload with progress bar in the bottom.
6. When the update is finished, remove jumper from MEM contacts and restart
the reader.
A
PPENDIX
Fig. 2 Enclosure opening and location of service contacts
Table 1. Wires
Name Wire colour Description
12V Red Supply plus
GND Black Ground
A Yellow RS485 bus, line A
B Green RS485 bus, line B
Table 2. Specification
Supply voltage Nominal 12VDC, min./max. range 10-15VDC
Current consumption ~70 mA
(average)
Tamper protection Enclosure opening reported to access controller
Identification methods 13.56MHz MIFARE Ultralight, Classic, Plus and
Desfire proximity cards
Mobile devices (Android, iOS) with NFC
Mobile devices (Android, iOS) with Bluetooth Low
Energy v4.1
Reading range Up to 7 cm for MIFARE cards and NFC
Up to 10 m for BLE – depends on ambient
conditions and particular mobile device. Terminal's
2019-03-06
1/2
