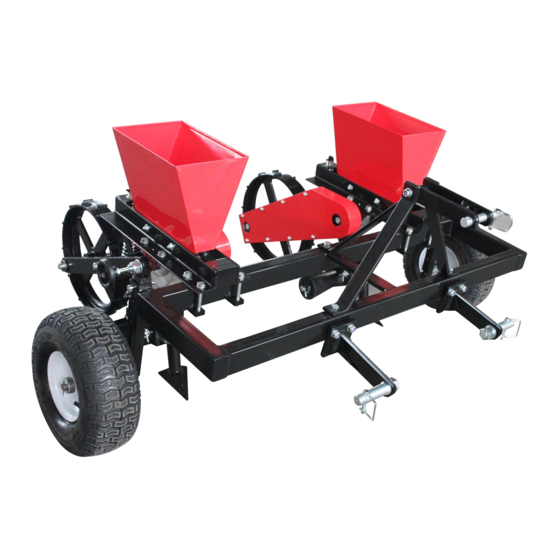

3 pt corn and bean planter
Hide thumbs
Table of Contents

Advertisement

Quick Links

3 PT Corn and Bean Planter
OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury
basic safety precautions may result in serious personal injury.
Item# FTF-CBP3PT
03132014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTF-CBP3PT and is the answer not in the manual?

Questions and answers

Robert vento
February 4, 2025

Need part 31 bearing holders

0
1 comments:
Mr. Anderson
February 10, 2025

Part 31 is listed as "Bearing Bracket Assy" in the manual. To obtain this part for the Field Tuff FTF-CBP3PT, you should contact the manufacturer or supplier. For technical questions or parts inquiries, call 1-218-943-6296.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Field Tuff FTF-CBP3PT

Summary of Contents for Field Tuff FTF-CBP3PT

  • Page 1 Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury basic safety precautions may result in serious personal injury. Item# FTF-CBP3PT 03132014...

  • Page 2: Intended Use

    Thank you very much for choosing this product! For future reference, please complete the owner’s record below: Model: ___ FTF-CBP3PT __ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it.

  • Page 3: Work Area

    WORK AREA •Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause accidents. •Keep children and bystanders away while operating the planter. Distractions can cause you to lose control, so visitors should remain at a safe distance from the work area. control, so visitors should remain at a safe distance from the work area.
  • Page 4 Approximate assembly time of this product is 1 hour. Helpful Tip: Read all instructions before starting to assemble. WARNING: TG or Field Tuff will not be held liable for any damages, losses or injury, due to the misapplication or misuse of this product or for any other reason.

  • Page 5: Carton Contents

    Carton Contents...
  • Page 6 STEP 1: Planter Assembly Attach the right planter assembly and hopper bracket to the right side of the frame assembly using M10 x 85 Hex Bolt, lock washer Ø10, flat washer as shown in Figure 1. Repeat above procedure for the left planter assembly. Figure 2.
  • Page 7 STEP 2: Tire/Wheel Assembly Insert the tire assembly into the right adjustable axle receiver tube of the frame Assembly and install Lock pin. (Shown in Figure 3) (Shown in Figure 3) Repeat above procedure for the left side. Figure 4 shows completed step. ...
  • Page 8 STEP 3: Top Link Bracket and Middle Top Brace Assembly. Connect top link bracket to the frame assembly using M10x85 high strenght hex bolt, M10 lock nut, Ø10 flat washer and tighten, then connect middle top brace to the t op link bracket and frame using M10x100 hex bolt, M10x85 high strength hex bolt, M10 lock nut, Ø10 flat washer and tighten.
  • Page 9 STEP 4: Lower Link Brackets Assembly Install the Lower Link Bracket onto the frame assembly using M10x65 hex bolt, M10 nylon lock nut,Ø10 flat washer and tighten. (As shown in figure 7) Figure 8 shows the assembled step Figure 8 shows the assembled step.
  • Page 10 Fully Assembled Illustration...
  • Page 11 Figure 11 Adjusting Row Width 1.To adjust the row width loosen the 4 hex bolts item 15, that fasten the planter assembly to the rear frame assembly. Measuring from the middle of frame, move the planter in or out to half the row width. I.e.24” row width measures 12” from middle frame to the planter assembly.
  • Page 12 Figure 12 Setting Planter Seed Depth 1. Attach planter to the tractor with 3pt. Lower Planter to ground and adjust top link so that planter is level. 2. Lower planter to ground so that coulters sit on flat level surface. See figure 13 of next page.

  • Page 13: Coulter Adjustment

    Coulter Adjustment 1.To move coulter assembly down raise planter off of flat surface, loosen the u-Bolts item 20 and lower coulter assembly down. Retighten U-bolts. See figure 13. Repeat steps 1 through 3 again, setting planter seed depth.
  • Page 14 Adjustment for Seed Size The wheel handle item 29 on the side of planter assembly is used to adjust the size of the pocket that the seed will fall into and be metered out of the hopper assembly. Turning the wheel handle clockwise makes the pocket smaller and counter clockwise enlarges it.
  • Page 15 Concept of operation of planter. As the planter is pulled forward the black steel wheel is ground driven. The black steel wheel drives the plastic seed hub inside the hopper. As the plastic hub turns the seed drops into the seed pockets The seed then plastic hub turns the seed drops into the seed pockets.

  • Page 19: Part List

    Part List o i t o i t Part No. Part No. e l l c i t Flat Washer Ø6 Flat Washer Ø6 Long Spring Long Spring Nylon Lock Nut M6 "T" tube Weldment Back Plate Inside Double End Bolt Elastic Cylindrical Pin Left Protection Cover Flat Washer Ø16...

  • Page 20: Warranty

    For replacement parts and technical questions, please call 1-218-943-6296 WARRANTY One-year limited parts warranty PO Box 203 Miltona MN 56354 Miltona, MN 56354 MADE IN CHINA...
