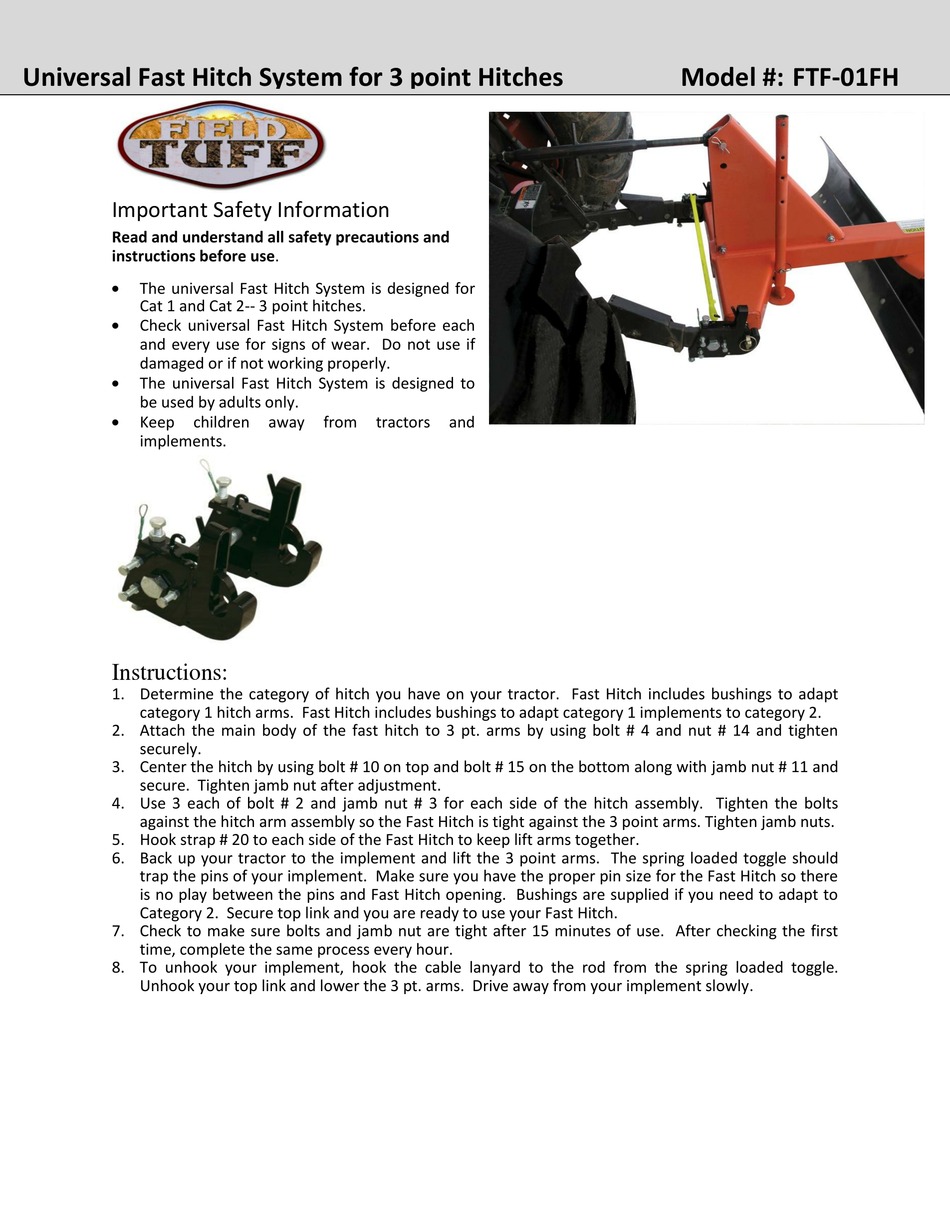

Field Tuff FTF-01FH Instructions

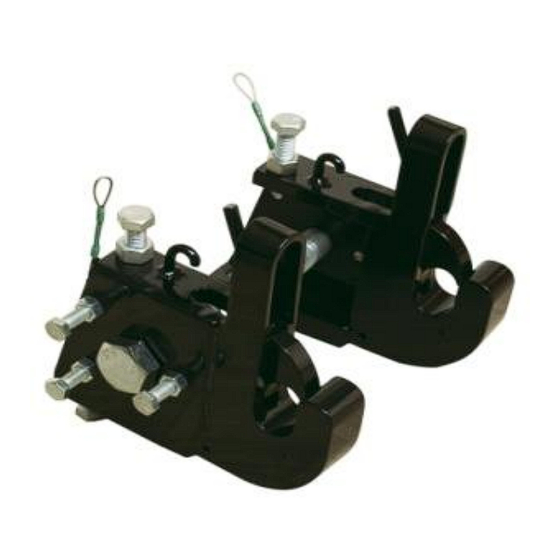

Universal Fast Hitch System for 3 point Hitches

Important Safety Information

Read and understand all safety precautions and
instructions before use.

The universal Fast Hitch System is designed for
Cat 1 and Cat 2-- 3 point hitches.

Check universal Fast Hitch System before each
and every use for signs of wear. Do not use if
damaged or if not working properly.

The universal Fast Hitch System is designed to
be used by adults only.

Keep children
implements.
Instructions:
1. Determine the category of hitch you have on your tractor. Fast Hitch includes bushings to adapt
category 1 hitch arms. Fast Hitch includes bushings to adapt category 1 implements to category 2.
2. Attach the main body of the fast hitch to 3 pt. arms by using bolt # 4 and nut # 14 and tighten
securely.
3. Center the hitch by using bolt # 10 on top and bolt # 15 on the bottom along with jamb nut # 11 and
secure. Tighten jamb nut after adjustment.
4. Use 3 each of bolt # 2 and jamb nut # 3 for each side of the hitch assembly. Tighten the bolts
against the hitch arm assembly so the Fast Hitch is tight against the 3 point arms. Tighten jamb nuts.
5. Hook strap # 20 to each side of the Fast Hitch to keep lift arms together.
6. Back up your tractor to the implement and lift the 3 point arms. The spring loaded toggle should
trap the pins of your implement. Make sure you have the proper pin size for the Fast Hitch so there
is no play between the pins and Fast Hitch opening. Bushings are supplied if you need to adapt to
Category 2. Secure top link and you are ready to use your Fast Hitch.
7. Check to make sure bolts and jamb nut are tight after 15 minutes of use. After checking the first
time, complete the same process every hour.
8. To unhook your implement, hook the cable lanyard to the rod from the spring loaded toggle.
Unhook your top link and lower the 3 pt. arms. Drive away from your implement slowly.
away from tractors and
Model #: FTF-01FH
