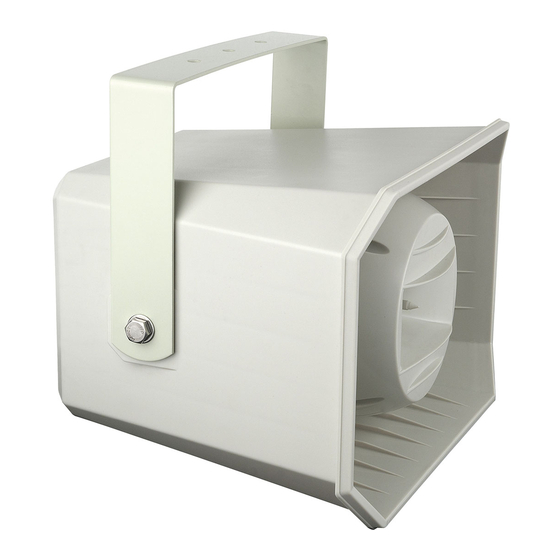

- Page 1 MANUAL ENGLISH MHS-50S Ordercode: D6545 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
MHS-50S Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Installation ................................... 5 Troubleshooting ................................. 6 Product Specification ............................... 7 Notes ....................................8... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio MHS-50S • User manual •... -
Page 4: Operating Determinations
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc. You endanger your own safety and the safety of others! Improper installation can cause serious injuries and damage of property ! The MHS-50S can be mounted to any kind of truss with a clamp. Ordercode: D6545... -
Page 5: Return Procedure
MHS-50S Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Description Of The Device
MHS-50S Description of the device Features Power taps: 3,5/4,5/9/12,5/25/50W • Line voltage: 100V • Impedance: 8 Ω • Frequency response: 90-20 kHz • Sensitivity: 99 dB • SPL 1W/1 m: 98 dB • Max SPL/1 m: 113 dB • Vertical dispersion: 140°... -
Page 7: Troubleshooting
MHS-50S 02) Set the desired output volume. Connect the white and black cable to the appropriate connectors (1-5). For example, to set the device to 9W, you need to connect the white and black cable to the (1) Red and (3) Green connectors. For more information, see the sticker on the rear side of the device . -
Page 8: Product Specification
MHS-50S Product Specification Power taps: 3,5/4,5/9/12,5/25/50W Line voltage: 100V Impedance: 8 Ω Frequency response: 90-20 kHz Sensitivity: 99 dB SPL 1W/1 m: 98 dB Max SPL/1 m: 113 dB Vertical dispersion: 140° Horizontal dispersion: 105° Woofer size: 6,5” Tweeter size: 1”... -
Page 9: Notes
MHS-50S Notes Ordercode: D6545... - Page 10 MHS-50S Ordercode: D6545...
- Page 11 MHS-50S Ordercode: D6545...
- Page 12 ©2015 DAP Audio...
