Summary of Contents for Culina UB70NPYS

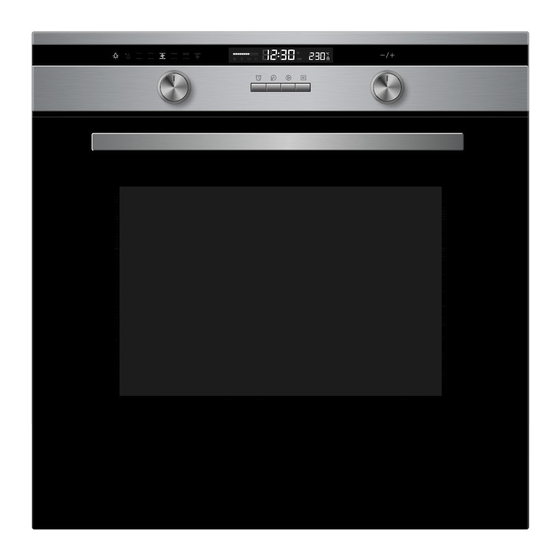

- Page 1 UB70NPYS Built-in Electric Oven User Manual...
- Page 3 ACKNOWLEDGMENT Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this produc t please study this entire Instruction Manual carefully . Keep this manual in a safe place for future reference. Ensure that other people using the pro duct are familiar with these instructions as well.
- Page 4 supervision or instruct ion concerning us e of the appliance in a safe way and underst and the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. During use, the applianc e becomes very hot. Care should be taken to avoid touching heating elements inside the oven.
- Page 5 If the supply cord is d amaged, it must be replaced by the manufacturer, its servic e agent or similarly qualified persons in order to avoid a hazard. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the ov en door glass sinc e they can scratch t he surface, which may result in shattering of the glass.
-
Page 6: Safety Hints
SAFETY HINTS Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet. For oven: Oven door should not be opened often during the cooking period. ... -
Page 7: Product Description
PRODUCT DESCRIPTION Stop button Remind button Time button Start button Symbol Function description Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions. ( except pyrolytic function and ECO function) Deforst: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat). - Page 8 OPERATION INSTRUCTIONS 1. Clock Setting After connectiong the unit to the power, the symbols "0:00" will be visible on the display. 1> Press " ", the hour figures will flash. 2> Rotate " K2" to adjust the hour figures, (time should be within 0--23). 3>...
- Page 9 5. Child lock function To Lock : press " " and " " simultaneously for 3 seconds, there will be a long "beeping" sound and the " " will be illuminated. Lock quitting : press " " and " " simultaneously for 3 seconds, there will be a long "beeping" sound indicating the child-lock is released.
- Page 10 9. Reservation function 1> To use reservation function, clock must be set in advance. Then, in the way of setting the clock, reserved time that oven starts to cook must be set (a> Press reservation setting button" "; b> Rotate "K2" to set the hour time of reservation. Time should be within 0--23. c> Press reservation setting button "...
- Page 11 Note: A) When the oven door is not closed, pressing start button will be invalid, LED display "door", "PyR". B) When the oven's center temperature is highter than 320°C, pressing start button will be invalid. The LED will display "CooL" and "PyR". When the oven's center temperature is lower than 200°C, press cancel button once , it will pause;...
- Page 12 ACCESSORIES Wire shelf : For grill .dishes, cake pan with items for roasting and grilling. Slider bracket : These shelf support rails on the right and left sides of the oven can be removed for cleaning oven walls. (only for specific modles) Universal pan: For cooking large quantities of food such as moist cakes, pastries, frozen food etc,or for collecting fat/ spillage and meat juices.
-
Page 13: Shelf Placement Warning
SHELF PLACEMENT WARNING: To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. Shelves and the pan only can be used between the first and fifth layers. The shelves should use with the right direction, it will ensure that during careful removal of the shelf or tray, hot food items should not slide out. -
Page 14: Ventilating Openings
VENTILATING OPENINGS When cooking is finished or in pause state or in waiting state, if the oven's center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degree, the cooling fan will stop in advance. Ventilating openings CONNECTION OF THE OVEN INSTALLATION... -
Page 15: Cleaning And Maintenance
IM_N5P90E2 UB70NPYS manual_20190306...
