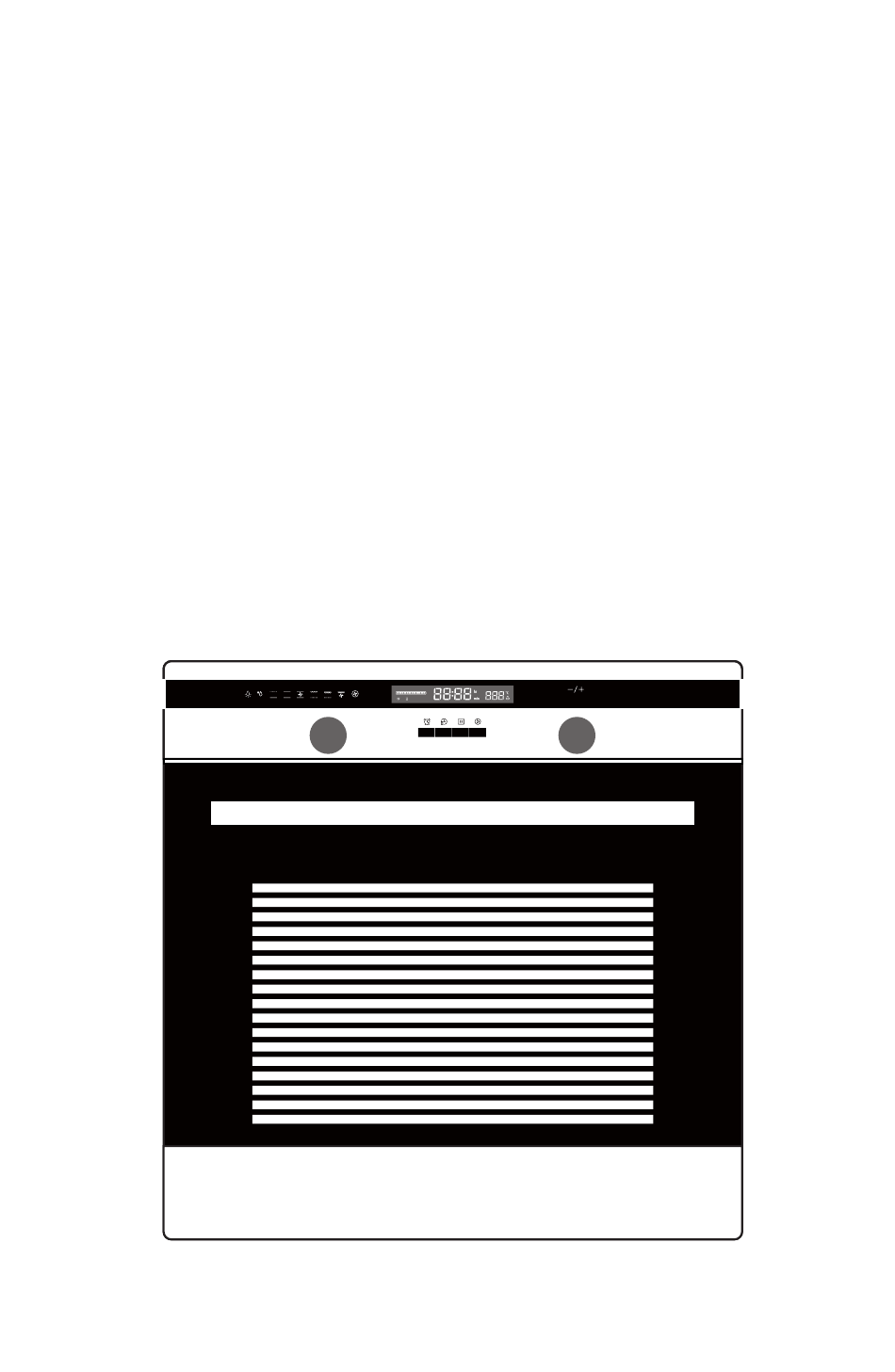

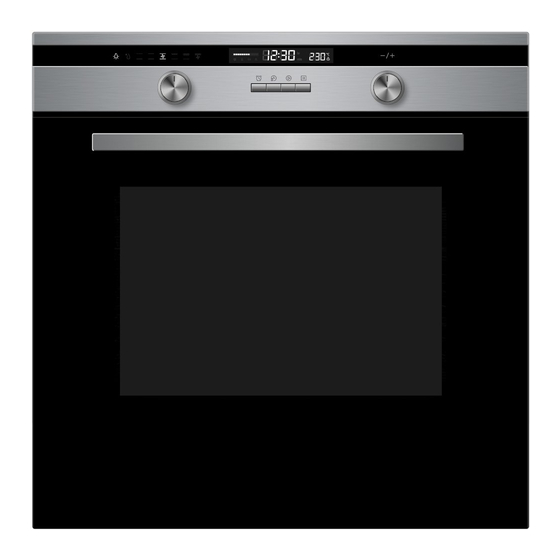

- Page 1 UB70NMFS Built-in Electric Oven User Manual...
- Page 2 ACKNOWLEDGMENT Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this produc t please study this entire Instruction Manual carefully . Keep this manual in a safe place for future reference. Ensure that other people using the pro duct are familiar with these instructions as well.
- Page 3 supervision or instruct ion concerning us e of the appliance in a safe way and underst and the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. During use, the applianc e becomes very hot. Care should be taken to avoid touching heating elements inside the oven.
- Page 4 If the supply cord is d amaged, it must be replaced by the manufacturer, its servic e agent or similarly qualified persons in order to avoid a hazard. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the ov en door glass sinc e they can scratch t he surface, which may result in shattering of the glass.
-
Page 5: Safety Hints
SAFETY HINTS Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet. For oven: Oven door should not be opened often during the cooking period. ... -
Page 6: Product Description
PRODUCT DESCRIPTION Remind button Time button Stop button Start button Symbol Function description Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions. (except ECO function). Deforst: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat). - Page 7 OPERATION INSTRUCTIONS 1. Clock Setting After connectiong the unit to the power, the symbols "0:00" will be visible on the display. 1> Press " ", the hour figures will flash. 2> Rotate " K2" to adjust the hour figures, (time should be within 0--23). 3>...
- Page 8 6. Reminder Function: This function will help to remind you to start cooking in a certain time from 0:01 to 9:59. Only when oven in standby mode, the reminder can be set. Follow below to set the reminder: 1> Press reminder setting button " ";...
- Page 9 Note: 1. Lamp, defrost, probe can't be reserved. 2. During the status of reservation, press cancel button once, time and temperature of reservation menu will be shown with menu icon lighting constantly. Press again, screen returns to clock, or press start button to return to reservation status.
- Page 10 ACCESSORIES Wire shelf : For grill .dishes, cake pan with items for roasting and grilling. Slider bracket : These shelf support rails on the right and left sides of the oven can be removed for cleaning oven walls. (only for specific modles) Universal pan: For cooking large quantities of food such as moist cakes, pastries, frozen food etc,or for collecting fat/ spillage and meat juices.
-
Page 11: Shelf Placement Warning
SHELF PLACEMENT WARNING: To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. This will ensure that during careful removal of the shelf or tray, hot food items should not slide out. USE OF ROTISSERIE ACCESSORIES The rotisserie works in combination with the grill element to heat the food equally. -
Page 12: Ventilating Openings
VENTILATING OPENINGS When cooking is finished or in pause state or in waiting state, if the oven's center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degree, the cooling fan will stop in advance. Ventilating openings CONNECTION OF THE OVEN INSTALLATION... -
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to be cleaned regularly. - Page 14 Installation instruction of the door frame up cover and rotation bracket assembly Preparation before disassembly Most of the tools that you might need are shown below. Some tools are optional. Parts disassembly The oven door’s disass embly Step 1: Open the oven door comple t ely. Step 2: Pull the hinge locks forward on both hinges, until they s top.
- Page 15 Step 3: Raise the doo r so that it is at a 30° angle from the front of the oven. Hold the door with one hand on each side. Lift the door up an d out. Warning: Don’t forcibly pulled out the door and prevent the glass breakage during the dismantling process .
- Page 16 Step 3: Lift up the door outer gla ss and pul lit out, then take the door middle glass out as the same way ; Step 4 : Use one hand to push the door frame up cover towar d middle pa rt (1), then lift up the cover with the another hand (2);...
- Page 17 Step 5 : See the screwdriver to disassemble the rotation bracket assemblies (1.2), then take out it from the door brac ket; Step 6: Change the new rotation bracket assemblies and insert it into the snap joints, then fix it with screw ST3.9*12F; Insert it into the snap joints...
- Page 18 Step 7: Assemble the new door frame up cover on the bracket and make sure it be stable; Step 8: Assemble the door middle glass and pay attention that it should be put at the second floo r of door frame up cov er for 3-layer glass door, and for 4-layer glass door, another middle glass should be place at the first floor;...
- Page 19 Step 9: Assemble the outer glass and accomplish the replacement work. IM_N5M90E2 UB70NMFS manual_20190306...
