Summary of Contents for Culina DOV720AR

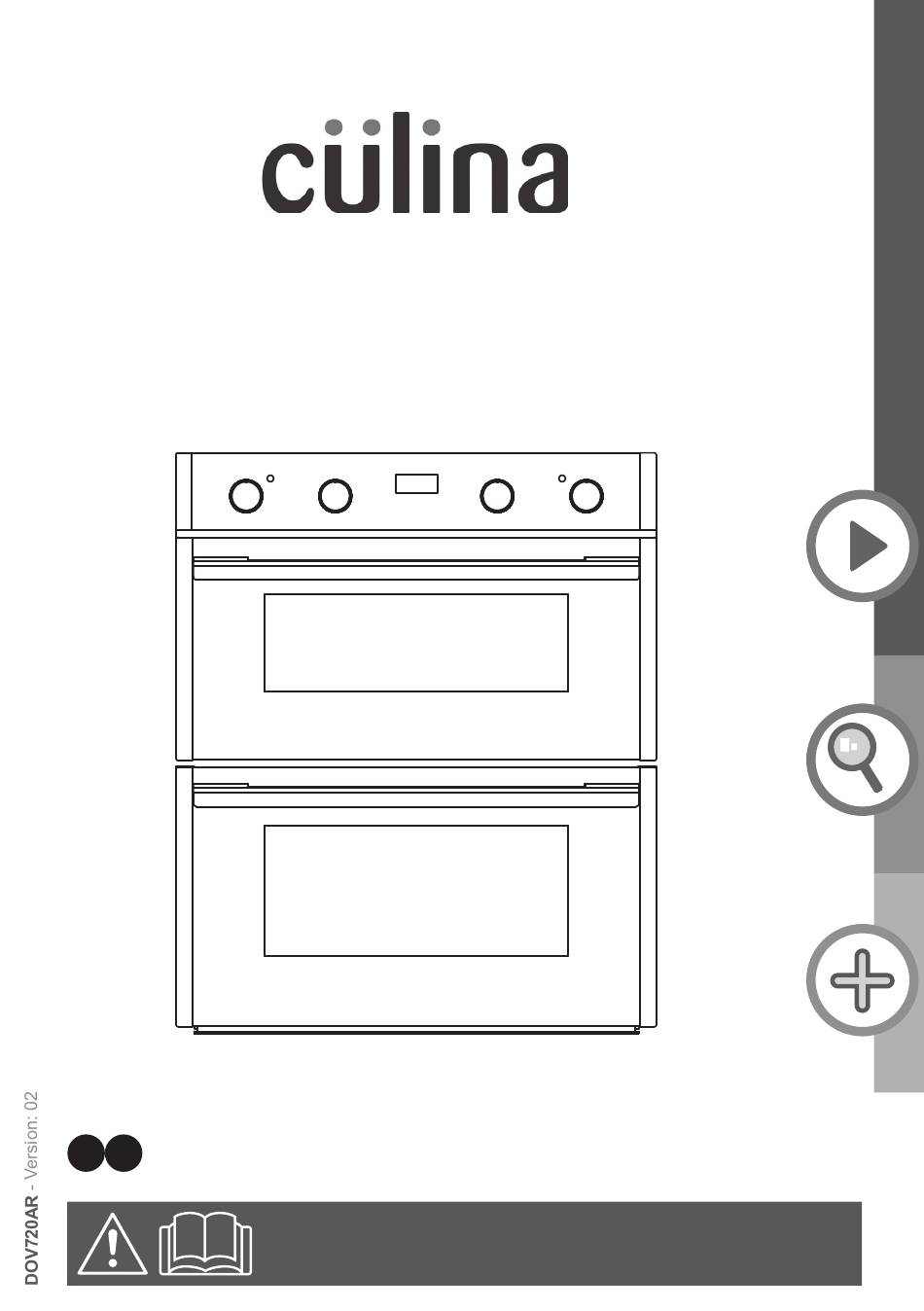

- Page 1 72CM BUILT UNDER ELECTRIC DOUBLE OVEN GB IE Double oven - Barcode: 8422248605137 WARNING: Read the instructions before using the appliance.
- Page 2 DOV72AR Double oven [02] x 1 [03] x 2 [04] x2 [01] x 1 [05] x 2 [06] x 2 [07] x 1+1 [08] x 4 (Ø4mm x 25mm) (Ø4mm x 10mm) [09] x 12 [10] x 8...
-
Page 3: Table Of Contents
Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started… Your product Before you start Safety detail… more Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 4: Your Product
Your product DOV720AR Double oven Your product Note! This diagram may be slightly different from the layout of the appliance. Control panel Cooking mode selection knob Cooking temperature selection knob Electronic programmer - allows you to programme the desired cooking by selecting the cooking time and the end cooking time. -
Page 5: Before You Start
Before you start DOV720AR Double oven Your product Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 6: Safety
Safety DOV720AR Double oven These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions. - Page 7 Safety DOV720AR Double oven Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally.
- Page 8 Safety DOV720AR Double oven The appliance is not intended to be operated by means of external timer or separated remote-control system. The appliance is for domestic use only. The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance.
- Page 9 Safety DOV720AR Double oven Before connecting the appliance to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label. Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact your retailer if it is damaged.
- Page 10 Safety DOV720AR Double oven Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the appliance.
- Page 11 Safety DOV720AR Double oven Do not cover the bottom of the oven with aluminium foil or other objects. Caution: Risk of fire! Do not allow aluminium foil, plastic, paper or fabric contact with heating elements. Never leave the appliance unattended during use, especially when cooking with flammable substances (e.g.
-
Page 12: Operation
Operation DOV720AR Double oven Introduction Note: This multifunction oven combines the advantages of traditional conventional oven with those of the more modern fan oven model in a single appliance. It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. - Page 13 Operation DOV720AR Double oven Product functions > The oven is controlled by a thermostat between 50ºC and 250ºC, depending on the temperature required. The thermostat pilot light turns on and off to indicate the temperature control during use. > The required cooking mode is selected using the multifunctional control button.
- Page 14 Operation DOV720AR Double oven The information given in the following charts is intended only as a guide. Select the lowest temperature quoted and check the food at the end of the shortest duration quoted. CONVENTIONAL Cakes/Biscuits Temperature °C Shelf Position...
-
Page 15: Operation
Operation DOV720AR Double oven CONVENTIONAL Food Recommended Temperature °C Time in min. shelf level from the bottom Roast beef, approx. 1 kg 190 – 210 100 – 120 Beef fillet, approx. 1 kg 200 – 220 45 – 55 Venison, approx. 1 kg 190 –... - Page 16 Operation DOV720AR Double oven TRUE FAN MODE Cakes / biscuits Temperature Shelf Position Cooking Time in min. (ºC) (Recommended) from the bottom Cake Mixture Desserts in Moulds Sponge cake 150-170 60-70 Marble, nut cake (tin) 150-170 60-80 Fresh fruit cake (tray)
- Page 17 Operation DOV720AR Double oven Food to be Recom- GRILL FAN GRILL grilled mended shelf level from the bottom Temperature Total Temperature Total setting setting grilling grilling Time in Time in min. min. Thin cuts Steak 3 or 4 maximum 10-16...
- Page 18 Operation DOV720AR Double oven 3-key timer procedure cooking mode Adjust the clock after switch on Once it connected with electrical power, the display will show “12:00” with the square symbol above “ ”. Press the + or - button will increase or decrease the number until it reaches the right time.
- Page 19 Operation DOV720AR Double oven Semi-automatic setting (set the time of automatic starting and ending) A. Setting the required time frame for baking (10 hours maximum) • Press the function button repeatedly until the square symbol above “ ”, and set the required time using the + and - buttons.
- Page 20 Operation DOV720AR Double oven The oven light • Set knob "B" to the “ ” symbol to turn it on. It lights the oven and stays on when any of the electrical heating elements in the oven come on. Cooling ventilation •...
- Page 21 Operation DOV720AR Double oven Using the true fan mode The rear circular element and the fan come on and the heat is dispersed by forced convection. This mode is suitable for roast joints when you want it well cooked on the outside and tender in the middle. The oven does not need any pre- heating when using this mode.
- Page 22 Care and maintenance DOV720AR Double oven Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Caution Do not use hot water, diluents, petrol, alcohol, kerosene, washing powder, cleanser, alkaline detergent, acid, chemical cloth, etc.
- Page 23 Care and maintenance DOV720AR Double oven How to keep your oven in good condition Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that •...
- Page 24 Care and maintenance DOV720AR Double oven How to remove the oven doors For a more thorough clean, you can remove the oven door. To remove the oven door use the following instructions: Open the door to the full extent. Open the lever A completely on the left hand hinges.
- Page 25 Care and maintenance DOV720AR Double oven Removing the inner pane of glass Remove the top plate by Gently pull out the inner panel of unscrewing the no. 2 screws glass. (A). Clean the glass with an appropriate cleaner. Dry thoroughly, and place on a soft surface.
-
Page 26: Care And Maintenance
Troubleshooting DOV720AR Double oven Troubleshooting What should I do if the oven doesn’t heat up? Check to see if one of the following actions resolves the issue: • The oven may not be switched on. Switch the oven on. •... - Page 27 Recycling and disposal DOV720AR Double oven Technical and legal information Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 28 Guarantee DOV720AR Double oven This appliance is covered by a full manufacturer’s 24 month parts and labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts.
- Page 29 Guarantee DOV720AR Double oven Guarantee Exclusions to the guarantee (continued) Claims arising from non-domestic use or commercial environment. Any gas appliance not fitted by a gas safe qualified installer. If no fault is found then GAA reserves the right to charge for the call out at the going rate of £55.00 plus VAT.
-
Page 30: Troubleshooting
CE Declaration of Conformity DOV720AR Double oven CE Declaration of Conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. -
Page 31: Recycling And Disposal
Installation DOV720AR Double oven Installation Only a qualified person in compliance with the instructions provided must install the appliance. The manufacturer declines all responsibility for improper installation, which may harm persons and animals and damage property. Caution • The power supply to the appliance must be switched off before any adjustments or maintenance work is undertaken. -
Page 32: Guarantee
DOV720AR Double oven Installation Method 1 • Fix the two support rails [03] using 8x screws [10] provided, ensuring that they are level with the base of the adjoining end panel, see Fig 1. • Fix the remaining two support rails [04] using 8 screws [09] provided to the side of the oven,ensuring they are level with the base of the oven. - Page 33 DOV720AR Double oven Installation Method 2 • Remove the both upper shelf (A) and cross member support (B) on the oven housing unit as shown in Fig 2 Cut the bottom panel (C) of the oven housing as shown. •...
-
Page 34: Ce Declaration Of Conformity
Installation DOV720AR Double oven Electrical connection All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. - Page 35 Installation DOV720AR Double oven Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation.
- Page 36 DOV720AR Double oven Fixing the double oven Fig. 4 Once the oven has been lifted into place insert the 4x plastic washers [07] into the holes located within the sides of the metal casing of the oven as shown in Fig 5 and secure with 4x screws [08].
- Page 37 DOV720AR Double oven Fig. 6 Fig. 7 Upper vent Note • Keep clear of upper vent location as hot air escapes and can cause burns. Figure 6 indicates an air circulation slot that should be cut into the plinth if fitted.
- Page 38 Notes...
- Page 39 Notes...
- Page 40 GAA Ltd 1301-1303 1Lu Plaza 2 Wing Yip St Kwun Tong Kowloon Hong Kong...
