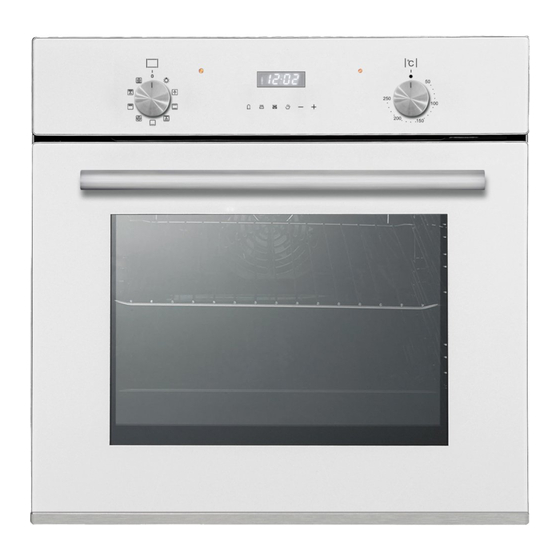

User Manual for your
UBEMF614
UBOVFP58SS
NOTE
: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Culina UBEMF614
Summary of Contents for Culina UBEMF614
- Page 1 User Manual for your UBEMF614 UBOVFP58SS NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for...
-
Page 2: Table Of Contents
Contents Environmental note Important safety information 4 - 7 Specifications 8 - 11 Product and aperture dimensions Product specifications Standard accessories Electrical details Cooling fan Control panel Oven programmer/timer display Setting and using the oven programmer/timer 11-15 Selecting manual operation mode Setting clock (the time of day) The oven timer Before first use... -
Page 3: Environmental Note
Environmental note o The packaging materials that the manufacturer uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Customer Care Department. - Page 5 Warning and safety instructions o This appliance complies with all current European safety legislation. The manufacturer does wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation. o This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been...
- Page 6 o Do not attempt to lift or move cooking appliances by using the oven door or handle, as this may cause damage to the appliance or result in injury to the person lifting the appliance. Cleaning o Cleaning of the oven should be carried out on a regular basis. o Great care should be taken whilst using this appliance and when following the cleaning procedure.
- Page 7 Declaration of conformity This appliance complies with the following European Directives: - 2014/35/EU regarding “low voltage” - 2014/30/EU regarding “electromagnetic disturbances” - Regulation (EC) N° 1935/2004 regarding “materials in contact with food” o The above directives comply with 93/68/EEC regarding CE marking. o The manufacturer declares that the oven is built using certified materials and requires the appliance to be installed in accordance with the standards currently in force.
-
Page 8: Specifications
Specifications Product Dimensions Aperture Dimensions Height: 595 mm 600 mm Width: 595 mm 560 mm Depth: 530 mm 560 mm (min) Product specifications o 9 oven functions o Energy efficiency class: A o Oven net/gross capacity: 58/65 liters o LED fully programmable timer o Cooling fan o Thermostatically controlled grill o Double-glazed removable door... -
Page 9: Standard Accessories
Standard accessories Accessory Name Picture Quantity Baking tray Grill Each 1 Handle Screws(ST4x35) Electrical details Rated Voltage: 220-240 Vac, 50/60 Hz Supply Connection: Rated max power : 2.90 kW Mains Supply Lead: 3 x 1.5mm² Oven Light Bulb: 25 W/300°C screw type pygmy Cooling fan o A tangential cooling fan is fitted inside of this appliance, to make the internal temperature of the oven stable and the external... -
Page 10: Control Panel
Control Panel UBEMF614 UBOVFP58SS 1) Oven function selector knob 2) Thermostat control knob 3) Minute minder button 4) Duration button 5) End cook button 6) Manual operation button 7) Minus button 8) Plus button 9) LED display A) Power indicator light... -
Page 11: Oven Programmer/Timer Display
Oven programmer/timer display 10) Auto function symbol 11) Minute minder symbol 12) Manual operation symbol Setting and using the oven programmer/timer Selecting manual operation mode After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature,you must set the appliance into manual operation mode. -
Page 12: Before First Use
Before first use o To remove any residue from the oven that may have been left from the manufacturing process, you should select the fan oven function and set the thermostat to its maximum temperature setting. o It is perfectly normal for a smell to be produced during this process. -
Page 13: Setting The Duration Function
o Once the display has got to your desired countdown time, let go of the minus and plus buttons. The minute minder symbol (11) will appear on the timer display. o Once a countdown time has been set, it is possible to shorten or lengthen the time by using the minus or plus buttons. -
Page 14: Setting The End Cook Function
heating symbol will disappear. The alarm can be silenced by pressing the duration button. o You will need to return the oven to manual operation mode, once the duration function has been used. To do this you should press the “manual operation” button, the word AUTO will disappear from the display and the manual operation symbol will appear instead. -
Page 15: Setting The Start And End Time Function
AUTO will flash and the heating symbol will disappear. The alarm can be silenced by pressing the end cook button. o You will need to return the oven to manual operation mode, once the end cook function has been used. To do this you should press the manual operation button, the word AUTO will disappear from the display and the manual operation symbol will appear instead. -
Page 16: Selecting A Cooking Function And Temperature
AUTO will flash and the heating symbol will disappear. The alarm can be silenced by pressing the end cook or duration button. o You will need to return the oven to manual operation mode, once the start and end time function has been used. To do this you should press the manual operation button, the word AUTO will disappear from the display and the manual operation symbol will appear instead. - Page 17 Bottom & Top Elements: Allows the oven to be heated conventionally. Fan, bottom and top heaters on: When you choose this icon, the oven executes the cake function. Conventional oven with a fan. Bottom Element: Oven is heated using only the bottom element. FAN OVEN: This method of cooking uses the circular element while the heat is distributed by the fan.
-
Page 18: Thermostat Control Knob
Thermostat control knob UBEMF614 o The oven thermostat control knob sets required temperature of the oven. It is possible regulate temperature within a range of 50 - 250°C. Turn control knob clockwise. UBOVFP58SS Oven operating light o This light will come on to... -
Page 19: Cooking Guidelines
You should not place food inside the cavity, until the correct cooking temperature has been reached. Cooking guidelines o Please refer to the information given on food packaging for guidance on cooking temperatures and times. Once familiar with the performance of your appliance, temperatures and times can be varied to suit personal preference. -
Page 20: Warnings
o The oven light will remain on during cooking. Warnings o Keep the oven door closed when using any of the cooking functions, including the grill functions. o Do not use aluminium foil to cover the grill pan or heat items wrapped in aluminium foil under the grill. -
Page 21: Cleaning And Maintenance
(Image for reference only – actual product may differ slightly) o The sides of the cavity are moulded to provide positions for the shelves or enamelled baking tray to rest on. Ensure that you select a shelf position at the same height on both sides of the cavity. The oven shelf has safety stops to prevent accidental withdraw. - Page 22 food being cooked at an excessively high temperature or being placed in cookware that is too small. o You should make sure that the cooking temperature that is selected is appropriate for the food that you are cooking. You should also ensure that the food is placed in an adequately sized dish and use the enamelled baking tray where appropriate.
-
Page 23: Replacing The Oven Bulb
Replacing the oven bulb IMPORTANT: The oven must be disconnected from your mains supply before you attempt to either remove or replace the oven bulb. o Remove all oven shelves, the drip tray and the side rack that is on the same side as the oven light. o Remove the light cover by turning it anti-clockwise. -
Page 24: Removing The Inner Door Glass For Cleaning
o The hinges (A) have two movable bolts on them (B). o If you raise both of the movable bolts (B), then the hinges (A) are released from the oven housing. o You should grip the sides of the door at the centre and then incline it slightly towards the oven cavity and then pull the door gently away from the oven cavity. -
Page 25: Installation
o Unscrew the bracket latch that is in the corner of the top of the door. Remove the glass from the door and clean with warm soapy water. o After cleaning, insert the glass panel correctly back into the door. Screw the bracket latch back into place. -
Page 26: Electrical Connection
Electrical connection Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. WARNING: THIS APPLIANCE MUST BE EARTHED. o This appliance should be wired into a 13A double pole switched fused spur outlet, having 3 mm contact separation and placed in an easily accessible position adjacent to the appliance. -
Page 27: Installing The Oven Into The Kitchen Cabinet
o Connect the wires as indicated in the image above, using the brass links provided where necessary. o The earthing (yellow/green) conductor must always be 10 mm longer than the line conductors. o Care must be taken to ensure that the temperature of the mains supply cable does not exceed 50°C. -
Page 28: Ventilation Requirements
o The oven must be fitted into an oven housing with the ventilation cut-outs shown in the “Ventilation requirements” section on the next page. o Ensure that the rear panel of the furniture housing unit has been removed. Ventilation requirements (Figure shows the ventilation and cut-out requirements for the installation of the appliance into a standard kitchen unit). -
Page 29: My Appliance Isn't Working Correctly
o Ensure that the oven has been securely fixed into the housing unit. The fixing of the oven into the housing is made by using four screws. These should be screwed through oven cabinet and into the housing unit. My appliance isn’t working correctly o The oven isn’t coming on. - Page 30 * Allow the oven to cool for approximately 2 hours. Once cool, check whether the appliance is again working properly. o My food is not cooking properly * Ensure that you are selecting the correct temperature and the correct cooking function for the food that you are cooking. It may be appropriate to adjust your cooking temperature by plus or minus 10°C, to achieve the best cooking results.
- Page 31 Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.
