Assa Abloy SARGENT IN100 Series Replacement Instructions

IN100 Series
EM01 Outside Escutcheon (Reader) &
Controller Replacement Instructions
Replace Reader, Controller, and Backplate
IN100 readers and controllers are paired in the factory - when replacing either
of these, the reader, controller and backplate must all be changed and the
replacement reader/controller in this kit must be configured to the lock type
it is being paired with.
Refer to Lock Instructions for disassembly and reassembly at intelligentopenings.com
Reminder: Replace all (3) provided assemblies.

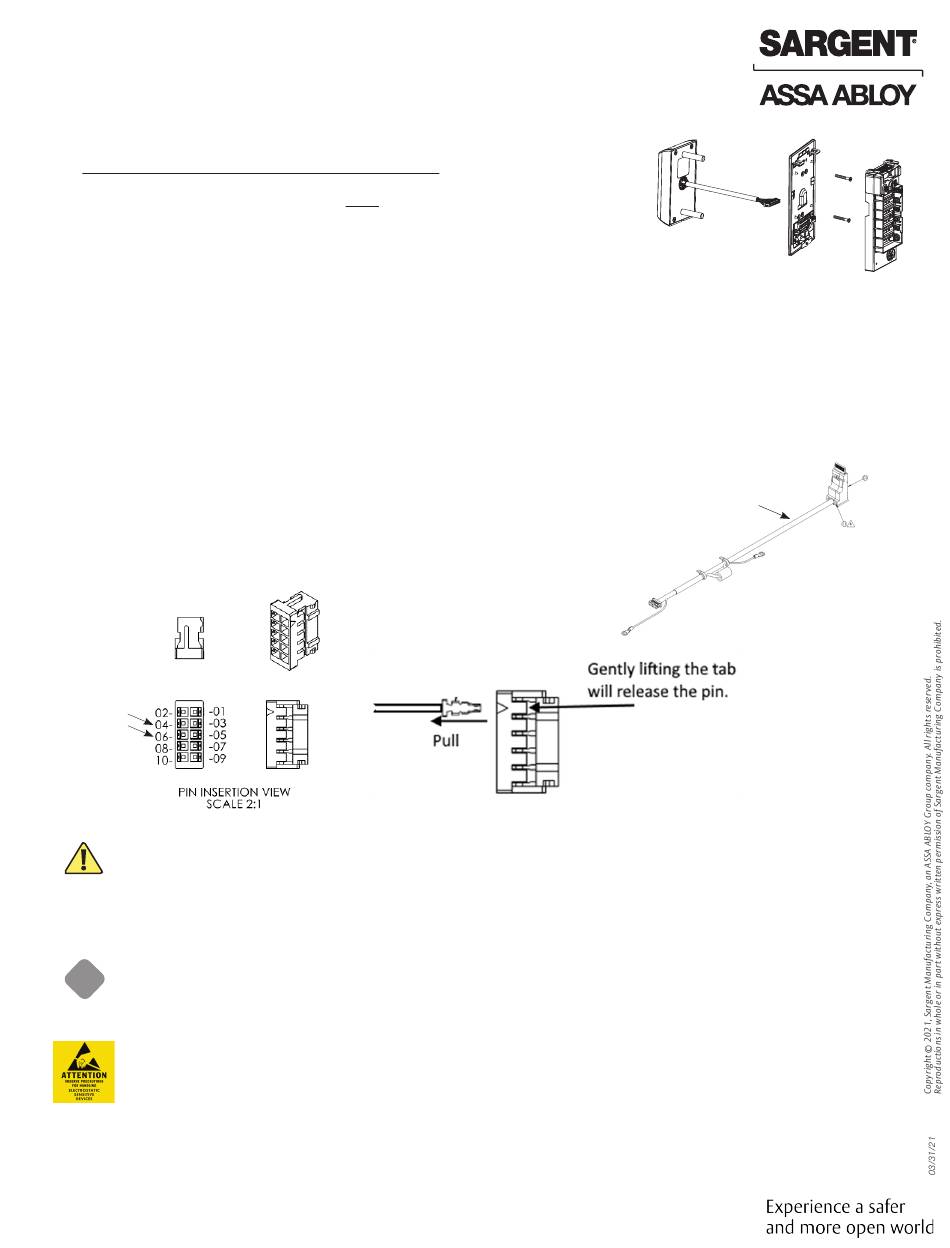

Understanding Green vs Red Circuit boards
If you are performing this electronics replacement process on an existing Sargent 7900
series mortise lock that has green controller and inside mounting plate circuit boards
then a modification must be made to the wiring harness (79-2210). This modification is
necessary for proper switch function using the red circuit board assemblies provided in
this replacement kit. For proper function (of 79-2210), the one white wire on pin 6 must
be moved to pin 4. See connector view with pin locations shown.
Newer 7900 mortise locks with red circuit boards and the new
harness (79-2228) will already have the white wire on pin 4
and do not need to be repinned.
PART NO. 52-0535 (P1)
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
Ce produit peut vous exposer au plomb qui, dans l'état de la Californie, est reconnu pour causer le cancer, des anomalies
congénitales ou d'autres problèmes de reproduction. Pour plus d'informations, visitez: www.P65warnings.ca.gov.
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin
!
Russwin makes no representations or warranties concerning what such impact may be in any specific situation. When
retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with
a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
To avoid possible damage from electrostatic discharge (ESD), some basic precautions should be used when handling electronic
components:
• Minimize build-up of static by touching and/or maintaining contact with unpainted metal surfaces such as door hinges,
latches, and mounting plates especially when mounting electronic components such as readers and controllers onto the
door.
• Leave components (reader and controller) protected in their respective anti-static bags until ready for installation.
• Do not touch pins, leads or solder connections on the circuit boards.
A8293A • 800-810-WIRE (9473) • www.sargentlock.com
Reader
Part number located here
1
Inside Mounting
Plate
Controller
