P106, P113, WD-P106 & WD-P113

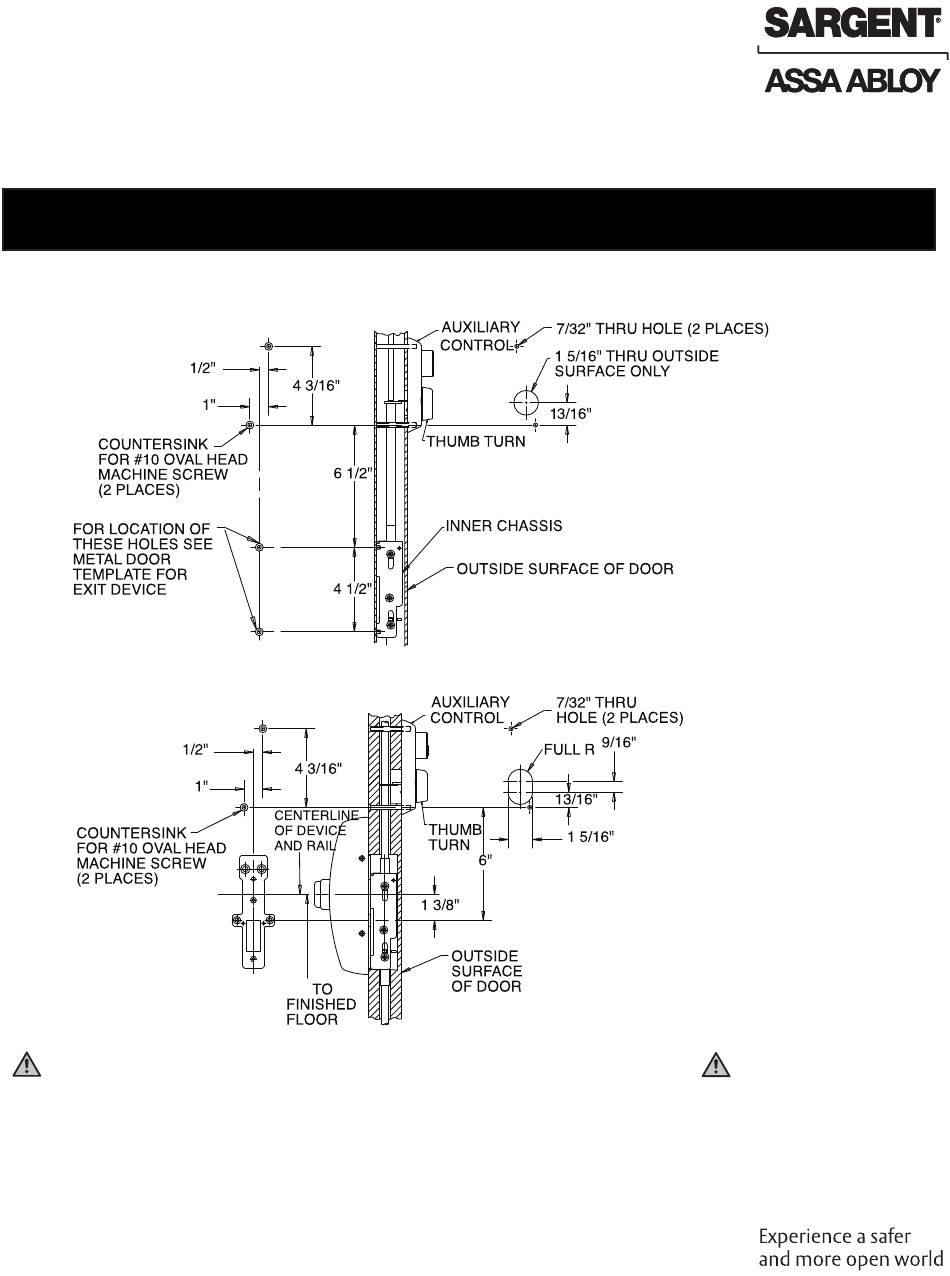

Auxiliary control with Concealed Vertical Rod Exit Devices
WARNING
This product can expose you to
lead which is known to the state of
California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.
P65warnings.ca.gov.
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written
permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
39 5/8"
PE8400, 12-MD-PE8400,
MD-PE8600 & 12-MD-PE8600
EXIT DEVICE X P100 SERIES
AUXILIARY CONTROL
WD-PE8600 & 12-WD-PE8600
EXIT DEVICE X WD-P100 SERIES
AUXILIARY CONTROL
WARNING
Attention Installer: Improper
installation may result in damage
to the product and void the factory
warranty.
A8309 -1 05/23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Assa Abloy Sargent P106
Summary of Contents for Assa Abloy Sargent P106
- Page 1 Installation Instructions P106, P113, WD-P106 & WD-P113 Auxiliary control with Concealed Vertical Rod Exit Devices PE8400, 12-MD-PE8400, MD-PE8600 & 12-MD-PE8600 EXIT DEVICE X P100 SERIES AUXILIARY CONTROL WD-PE8600 & 12-WD-PE8600 EXIT DEVICE X WD-P100 SERIES AUXILIARY CONTROL 39 5/8” WARNING WARNING This product can expose you to Attention Installer: Improper...
- Page 2 P106, P113, WD-P106 & WD-P113 Auxiliary Control with Concealed Vertical Rod Exit Devices Installation Instructions Using the exit device instructions, prepare the door for the exit device. Prepare the door for auxiliary control as illustrated on page 1. For wood doors, follow steps to install the auxiliary control bracket. Auxiliary control link Feed the auxiliary control link up and through the...
- Page 3 P106, P113, WD-P106 & WD-P113 Auxiliary Control with Concealed Vertical Rod Exit Devices Installation Instructions Holding the #10-32 fastener, take the platform and Take the inner chassis and place it into the opening. the smaller screw and attach it to the upper hole on the link in the door.
- Page 4 P106, P113, WD-P106 & WD-P113 Auxiliary Control with Concealed Vertical Rod Exit Devices Installation Instructions Hook the inner chassis into the link. Mark the inner chassis mounting holes. A8309-1 5/23 1-800-727-5477 • www.sargentlock.com Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
- Page 5 P106, P113, WD-P106 & WD-P113 Auxiliary Control with Concealed Vertical Rod Exit Devices Installation Instructions Remove the inner chassis. Pre-drill the holes in the door with a 1/8” drill bit. A8309-1 5/23 1-800-727-5477 • www.sargentlock.com Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
- Page 6 P106, P113, WD-P106 & WD-P113 Auxiliary Control with Concealed Vertical Rod Exit Devices Installation Instructions Rehook the inner chassis into the link and then Secure the inner chassis with two screws. insert the inner chassis back into the door. A8309-1 5/23 1-800-727-5477 •...
- Page 7 P106, P113, WD-P106 & WD-P113 Auxiliary Control with Concealed Vertical Rod Exit Devices Installation Instructions Confirm installation is as shown. A8309-1 5/23 1-800-727-5477 • www.sargentlock.com Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
- Page 8 Using exit device instructions, mount exit device to the door. Mount auxiliary control to door. BREAK OFF POINTS (IF NEEDED) 1. USED FOR SARGENT P-106 AND WD-P106 FUNCTION. 2. USED ON 51-P106 FUNCTION, 82-P106 AND 83-P106 PREFIX (OLD STYLE REMOVEABLE CORE). 3.
