6.2 IP address setting

All software functions of the switch can be managed, configured and monitored
using the built-in web interface and Telnet. Below is the description of web-based
configuration. Configuration via Telnet (see the Configuration Manual).
The switch can be managed from remote stations at any point of the network via
a standard web browser (for example, Microsoft Internet Explorer). The browser
is a universal access tool and can directly access the switch using the HTTP
protocol.
Connect any switch port to an Ethernet network. Keep in mind that in case the
device is configured over a network the IP address of the management
workstation should belong to the same IP network. For example, if the default IP
address of the switch is 192.168.0.1, then the IP address of the workstation
should be 192.168.0.x (where x is a figure from 2 to 254); the default subnet mask
is 255.255.255.0.
Open the web browser and enter the IP address http://192.168.0.1.

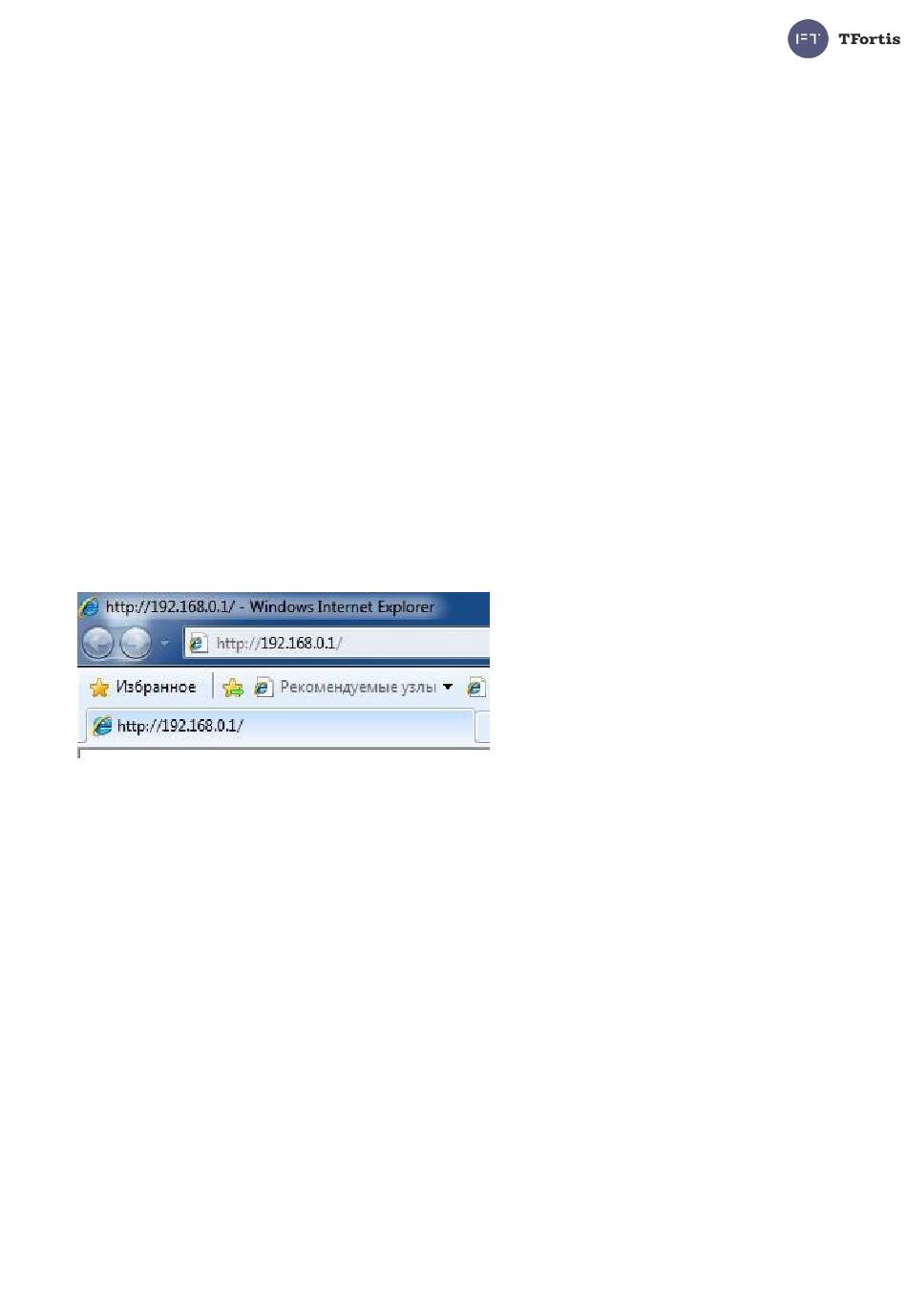

Figure 6.2 - Entering the IP address of the switch

6.3 User name and password setting

While the "username" and "password" are not set, you will log in without entering
this data. After the password is set, you will need to authenticate when you log
in.
